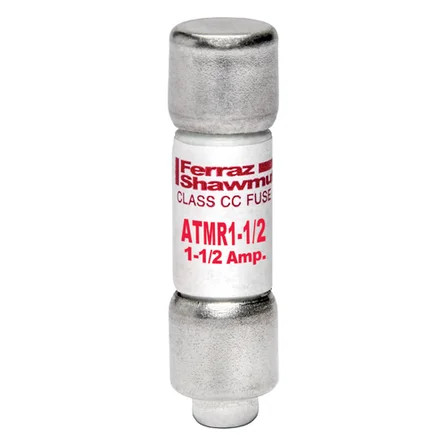

Mersen Class CC Fast-Acting Fuse 1.5A 600VAC/600VDC Ferrule Terminal Amp-Trap Protection System

Mersen Class CC Fast-Acting Fuse 1.5A 600VAC/600VDC Ferrule Terminal Amp-Trap Protection System

Professional electrical protection with superior interrupting capacity and fast-acting response

Mersen Class CC Fast-Acting Fuse delivers reliable overcurrent protection with 1.5A rating and dual 600VAC/600VDC voltage capability. This professional-grade Amp-Trap fuse features ferrule terminals with tin-plated copper construction, GMG body insulating material, and clip mounting for versatile installation applications requiring fast-acting protection response.

Professional Features & Benefits

• 1.5A Ampere Rating: Provides precise overcurrent protection for sensitive circuits and equipment requiring accurate current limiting.
• 600VAC/600VDC Dual Voltage: Offers versatile protection capability for both AC and DC applications with consistent performance across voltage types.
• 200 kA Breaking Capacity: Delivers exceptional fault current interruption capability for high-demand electrical protection applications.
• Class CC Fast-Acting Response: Ensures rapid protection activation to minimize equipment damage and maintain system integrity during fault conditions.
• Ferrule Terminal Design: Provides secure electrical connections with tin-plated copper construction for reliable conductivity and corrosion resistance.
• GMG Body Construction: Features professional insulating material for enhanced electrical isolation and mechanical durability in demanding environments.
• RoHS Compliant: Meets environmental compliance standards for professional electrical installations and regulatory requirements.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 1.5 A
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz: 50/60 Hz
• Fuse Class: Class CC
• Mounting Method: Clip
• Product Length: 1.5 in
• Product Weight: 0.017 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 600 V
• Rohs Compliant: Yes
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the fuse in a suitable fuse holder or clip assembly with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions for ferrule terminal connections.
3. Wire input according to the provided 600VAC/600VDC voltage specifications and 1.5A current rating capacity.
4. Configure any available protection settings as supported by the Class CC fast-acting specifications.
5. Test protection functionality and verify proper performance before placing the circuit into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to fuse protection systems.

Professional Applications

• Industrial Control Panels
• Motor Control Centers
• Power Distribution Equipment
• Electronic Equipment Protection
• Commercial Electrical Systems
• Instrumentation Circuits
• Process Control Applications

Why Choose Mersen Quality?

Mersen delivers professional-grade electrical protection with RoHS compliant construction, precision GMG insulating materials, and tin-plated copper terminals for long-term reliability. The compact 1.5 inch length and lightweight 0.017 lb design provide versatile installation options while maintaining superior 200 kA breaking capacity for demanding protection applications.
