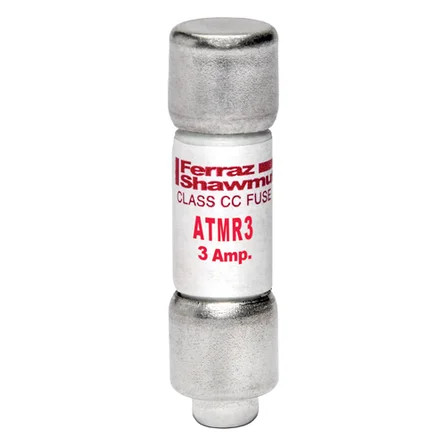

Mersen Class CC Fast-Acting Fuse 3A 600VAC/600VDC Ferrule Terminal Amp-Trap

Mersen Class CC Fast-Acting Fuse 3A 600VAC/600VDC Ferrule Terminal Amp-Trap

Professional Class CC Fast-Acting Circuit Protection

The Mersen Class CC Fast-Acting Fuse delivers reliable circuit protection with 3A rating and dual voltage capability of 600VAC/600VDC. This professional-grade fuse features ferrule terminals with tin-plated copper construction and GMG body insulating material for dependable performance in demanding electrical applications. With 200 kA AC breaking capacity and clip mounting method, this Amp-Trap fuse provides comprehensive protection for both AC and DC circuits.

Professional Features & Benefits

• 3A Current Rating: Provides precise overcurrent protection for sensitive circuits and equipment
• 600VAC/600VDC Dual Voltage: Versatile protection for both AC and DC applications up to 600V
• 200 kA Breaking Capacity: High interrupting rating ensures reliable fault current interruption
• Class CC Design: Compact size with current-limiting characteristics for enhanced system protection
• Fast-Acting Response: Quick response time protects sensitive electronic components from overcurrent conditions
• Ferrule Terminals: Tin-plated copper terminals ensure reliable connections and corrosion resistance
• RoHS Compliant: Environmentally responsible construction meets regulatory requirements

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 3:00 AM
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class CC
• Mounting Method: Clip
• Product Length: 1.5 in
• Product Weight: 0.017 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 600 V
• Rohs Compliant: Yes
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels
• Motor Control Centers
• Electronic Equipment Protection
• Commercial Electrical Systems
• Power Distribution Equipment
• Instrumentation Circuits
• DC Power Systems

Why Choose Mersen Quality?

Mersen delivers proven reliability with RoHS compliant construction and professional-grade materials including GMG body insulation and tin-plated copper terminals. The compact 1.5-inch length and lightweight 0.017 lb design ensures easy installation while maintaining robust 200 kA breaking capacity for dependable circuit protection.
