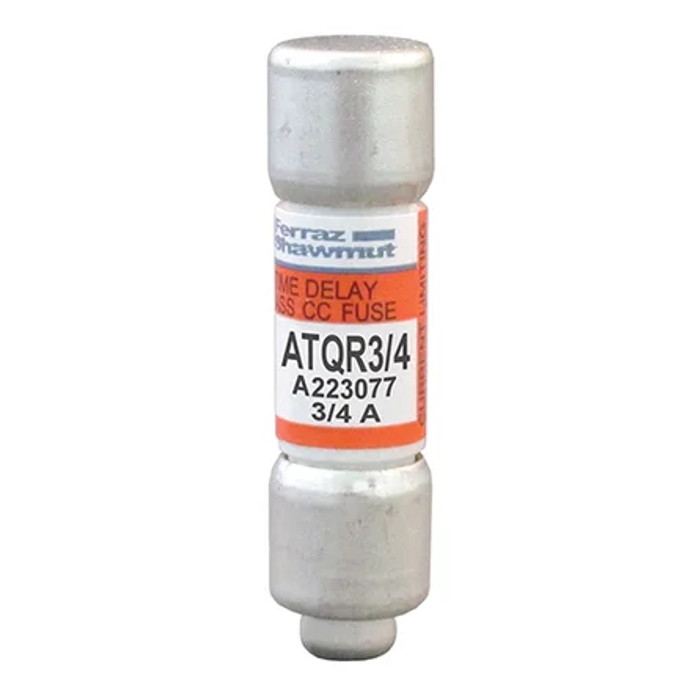

Mersen Class CC Time-Delay Fuse 0.75A 600VAC/300VDC Ferrule Terminal Amp-Trap 2000 Series
Professional Circuit Protection with Superior Breaking Capacity
The Mersen Class CC Time-Delay Fuse delivers reliable circuit protection with 0.75A rating and dual voltage capability of 600VAC/300VDC. This Amp-Trap 2000 series fuse features ferrule terminals with tin-plated copper construction and GMG body insulating material for dependable performance in professional electrical applications. The time-delay characteristic provides enhanced protection against temporary overloads while maintaining fast response to fault conditions.
Professional Features & Benefits
- 0.75A Current Rating: Precise amperage protection for sensitive circuits and equipment applications requiring accurate overcurrent protection.
- Class CC Design: Compact form factor with standardized dimensions ensures reliable fit and consistent performance in compatible fuse holders.
- Time-Delay Characteristic: Allows temporary overloads while providing fast clearing of sustained faults, reducing nuisance tripping in motor and inductive load applications.
- 200 kA Breaking Capacity: Superior fault interruption capability handles high-energy electrical faults safely and effectively.
- Dual Voltage Rating: 600VAC/300VDC capability provides versatility for both AC and DC circuit protection applications.
- Ferrule Terminal Design: Tin-plated copper terminals ensure reliable electrical connections and resist corrosion in demanding environments.
- RoHS Compliant: Meets environmental standards for reduced hazardous substances, supporting sustainable electrical installations.
Technical Specifications
- Ac Max I R Breaking Capacity I1: 200 kA
- Ac Or Dc: AC/DC
- Ampere Rating: 0.75 A
- Body Insulating Material: GMG
- Connection Terminal Material: Tin-Plated Copper
- Connection Terminal Type: Ferrule
- Frequency Hz : 50/60 Hz
- Fuse Class: Class CC
- Mounting Method: Clip
- Product Length: 1.5 in
- Product Weight: 0.017 lb
- Rated Voltage Ac Ul: 600 V
- Rated Voltage Dc Ul: 300 V
- Rohs Compliant: Yes
- Speed Characteristic: Time Delay
Installation & Operation
- Mount the fuse in a suitable Class CC fuse holder with appropriate clearance and access for connections and service.
- Connect circuit conductors to ferrule terminals following applicable guidelines and the manufacturer's instructions.
- Wire load and source connections according to the provided voltage specifications and 0.75A capacity rating.
- Configure any available circuit protection features as supported by the time-delay characteristics and breaking capacity.
- Test circuit functionality and verify proper fuse operation before placing the protected circuit into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to fuse protection systems.
Professional Applications
- Control Circuit Protection
- Instrumentation and Measurement Equipment
- Electronic Device Protection
- Motor Control Centers
- Industrial Control Panels
- Commercial Electrical Systems
- Sensitive Equipment Protection
Why Choose Mersen Quality?
Mersen fuses deliver proven reliability with RoHS compliant construction and professional-grade materials including GMG body insulation and tin-plated copper terminals. The 200 kA breaking capacity and time-delay characteristics provide superior circuit protection performance for demanding electrical applications requiring precise overcurrent protection.
Manufacturer Resources
Product Specs
- Ac Max I R Breaking Capacity I1:
- 200 kA
- Ac Or Dc:
- AC/DC
- Ampere Rating:
- 0.75 A
- Body Insulating Material:
- GMG
- Connection Terminal Material:
- Tin-Plated Copper
- Connection Terminal Type:
- Ferrule
- Frequency Hz :
- 50/60 Hz
- Fuse Class:
- Class CC
- Mounting Method:
- Clip
- Product Length:
- 1.5 in
- Product Weight:
- 0.017 lb
- Rated Voltage Ac Ul:
- 600 V
- Rated Voltage Dc Ul:
- 300 V
- Rohs Compliant:
- Yes
- Speed Characteristic:
- Time Delay
