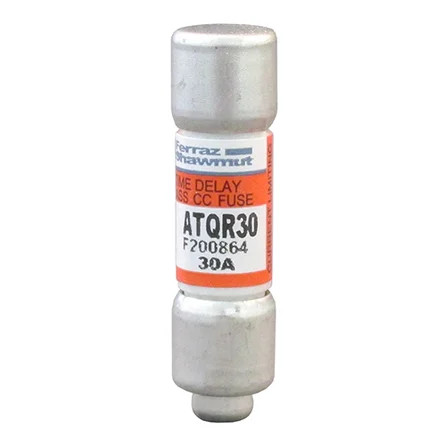

Mersen Class CC Time-Delay Fuse 30A 600VAC/300VDC Ferrule Terminal Amp-Trap 2000

Mersen Class CC Time-Delay Fuse 30A 600VAC/300VDC Ferrule Terminal Amp-Trap 2000

Professional Circuit Protection with High Interrupting Capacity

The Mersen Class CC Time-Delay Fuse delivers reliable circuit protection with 30A rating and dual voltage capability of 600VAC/300VDC. Featuring ferrule terminals with tin-plated copper construction and GMG body insulating material, this Amp-Trap 2000 series fuse provides professional-grade overcurrent protection with 200 kA interrupting capacity for demanding electrical applications.

Professional Features & Benefits

• 30A Current Rating: Provides precise overcurrent protection for medium-duty electrical circuits and equipment loads.
• Dual Voltage Capability (600VAC/300VDC): Versatile protection for both AC and DC applications with appropriate voltage ratings for commercial and industrial use.
• Class CC Design: Ensures current-limiting performance and rejection of non-current-limiting fuses for enhanced safety.
• Time-Delay Characteristic: Allows temporary overloads while providing fast clearing on short circuits for motor and inductive load protection.
• 200 kA Interrupting Capacity: High fault current interrupting capability for robust protection in high-energy electrical systems.
• Ferrule Terminal Construction: Tin-plated copper terminals ensure reliable connections and corrosion resistance in clip mounting applications.
• RoHS Compliant: Meets environmental compliance standards for professional electrical installations.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 30 A
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class CC
• Mounting Method: Clip
• Product Length: 1.5 in
• Product Weight: 0.017 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 300 V
• Rohs Compliant: Yes
• Speed Characteristic: Time Delay

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Motor Control Centers and Starter Protection
• Commercial HVAC Equipment Protection
• Industrial Control Panel Applications
• Lighting Circuit Protection
• Power Distribution Equipment
• Transformer Secondary Protection
• DC Power System Applications

Why Choose Mersen Quality?

Mersen fuses deliver proven reliability with RoHS compliant construction and professional-grade materials including GMG insulating body and tin-plated copper terminals. The compact 1.5-inch length and lightweight 0.017 lb design ensures easy installation while maintaining robust 200 kA interrupting capacity for demanding electrical protection applications.
