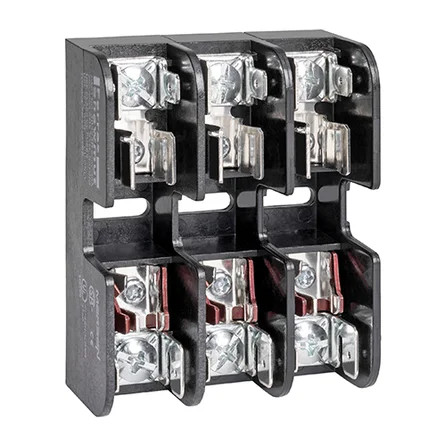

Mersen Class CC Fuse Block 600VAC/600VDC 30A 3-Pole with Reinforced Clip Pressure Plate System

Mersen Class CC Fuse Block 600VAC/600VDC 30A 3-Pole with Reinforced Clip Pressure Plate System

(No reviews yet) Write a Review

Model: 30323R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$111.56
$61.56
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Mersen Class CC Fuse Block 600VAC/600VDC 30A 3-Pole with Reinforced Clip Pressure Plate System

Professional Class CC Fuse Protection with Dual Voltage Rating

The Mersen Class CC Fuse Block delivers reliable circuit protection with 600VAC/600VDC dual voltage capability and 30A rating in a robust 3-pole configuration. Featuring glass filled polycarbonate construction and reinforced clip design, this pressure plate system provides secure fuse installation with clip-in mounting for professional electrical applications requiring dependable overcurrent protection.

Professional Features & Benefits

  • 600VAC/600VDC Dual Voltage Rating: Versatile protection for both AC and DC applications with consistent 30A capacity across voltage types.
  • Class CC Fuse Compatibility: Engineered for Class CC fuses ensuring proper rejection and reliable overcurrent protection performance.
  • 200 kA Short Circuit Current Rating: High fault current interruption capability provides robust protection in demanding electrical environments.
  • Glass Filled Polycarbonate Construction: Durable insulating material delivers long-term reliability and electrical isolation in industrial conditions.
  • Reinforced Clip Pressure Plate Design: Secure fuse retention with enhanced contact pressure for consistent electrical connection and easy maintenance access.
  • Flexible Mounting Options: Screw mount or DIN rail installation accommodates various panel and enclosure configurations.
  • RoHS Compliant Design: Environmentally responsible construction meets current regulatory standards for professional installations.

Technical Specifications

  • Ac Or Dc: AC/DC
  • Ampere Rating: 30 A
  • Body Insulating Material: Glass Filled Polycarbonate
  • Frequency Hz : 50/60 Hz
  • Fuse Class: Class CC
  • Fuse Installation Method: Clip-in
  • Fuse Type Class: Class CC
  • Installation Mounting: Screw Mount or DIN Rail
  • Max Fuse Rating: 30 A
  • Number Of Poles: 3-Pole
  • Product Height: 1.31 in
  • Product Length: 3.04 in
  • Product Weight: 0.35 lb
  • Product Width: 1.6 in
  • Rated Voltage Ac Ul: 600 V
  • Rated Voltage Dc Ul: 600 V
  • Rohs Compliant: Yes
  • Short Circuit Current Rating Sccr : 200 kA
  • Torque Rating: 20 lb-in

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Control Panels and Motor Control Centers
  • Commercial Electrical Distribution Systems
  • Manufacturing Equipment Protection
  • Process Control and Automation Systems
  • Power Distribution Panels
  • Renewable Energy System Protection
  • Critical Infrastructure Facilities

Why Choose Mersen Quality?

Mersen fuse blocks deliver proven reliability with glass filled polycarbonate construction, 200 kA short circuit rating, and RoHS compliant design. The reinforced clip system and dual voltage capability provide professional-grade protection with flexible installation options for demanding electrical applications.
