Mersen Class J High-Speed Fuse 100A 600VAC/500VDC Blade Terminal Amp-Trap

Mersen Class J High-Speed Fuse 100A 600VAC/500VDC Blade Terminal Amp-Trap

Professional High-Speed Circuit Protection for Critical Applications

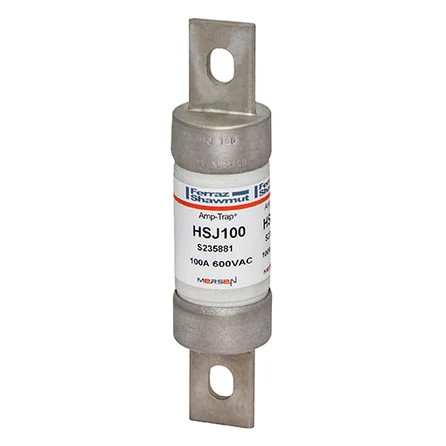

The Mersen Class J High-Speed Fuse delivers reliable circuit protection with 100A amperage rating and dual voltage capability of 600VAC/500VDC. Featuring blade terminal connections with silver-plated copper construction and GMG body insulating material, this Amp-Trap fuse provides professional-grade protection with high-speed characteristics and 200 kA breaking capacity for demanding electrical applications.

Professional Features & Benefits

• 100A Amperage Rating: Provides robust circuit protection for high-current applications requiring reliable overcurrent protection.
• Dual Voltage Capability (600VAC/500VDC): Versatile protection for both AC and DC circuits, offering flexibility across diverse electrical systems.
• Class J High-Speed Design: Delivers fast fault clearing to minimize equipment damage and enhance system protection.
• 200 kA Breaking Capacity: Exceptional fault interruption capability ensures reliable protection even under severe fault conditions.
• Silver-Plated Copper Blade Terminals: Superior conductivity and corrosion resistance for reliable long-term connections.
• GMG Body Insulating Material: Professional-grade insulation provides excellent electrical isolation and mechanical durability.
• Clip Mounting Method: Convenient installation and replacement for efficient maintenance operations.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 100 A
• Body Insulating Material: GMG
• Connection Terminal Material: Silver-Plated Copper
• Connection Terminal Type: Blade
• Frequency Hz : 50/60 Hz
• Fuse Class: Class J
• Mounting Method: Clip
• Product Length: 4.63 in
• Product Weight: 0.237 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 500 V
• Rohs Compliant: Yes
• Speed Characteristic: High Speed

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Centers
• Commercial Electrical Distribution
• Power Generation Equipment
• Manufacturing Facility Protection
• Critical Infrastructure Systems
• Heavy Equipment Applications
• Emergency Power Systems

Why Choose Mersen Quality?

Mersen delivers professional-grade circuit protection with RoHS compliant construction and precision engineering. The compact 4.63-inch length and lightweight 0.237 lb design provide space-efficient installation while maintaining robust 200 kA breaking capacity and dual frequency compatibility at 50/60 Hz for reliable performance across diverse electrical systems.
