Mersen TR30R Class RK5 Time-Delay Fuse 30A 250VAC/160VDC Ferrule Terminal

Mersen TR30R Class RK5 Time-Delay Fuse 30A 250VAC/160VDC Ferrule Terminal

Professional Class RK5 Time-Delay Protection for AC/DC Applications

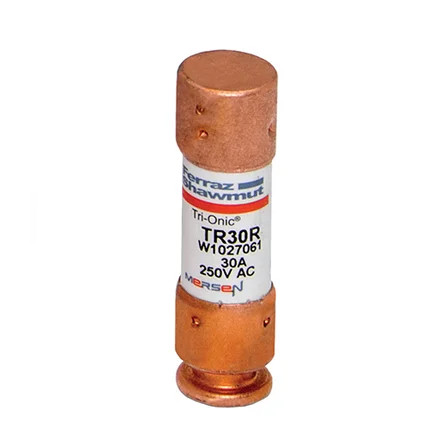

The Mersen TR30R delivers reliable overcurrent protection with Class RK5 time-delay characteristics for both AC and DC circuits. Rated for 30A service at 250VAC or 160VDC, this fuse features ferrule terminals and PolyTube body construction for dependable performance in professional electrical installations. With 200 kA breaking capacity and clip mounting design, it provides robust protection for diverse electrical applications.

Professional Features & Benefits

• 30A Current Rating: Provides precise overcurrent protection for medium-duty electrical circuits and equipment.
• Class RK5 Time-Delay: Allows temporary overloads while protecting against sustained overcurrent conditions and short circuits.
• Dual Voltage Rating: 250VAC/160VDC capability offers versatility for both AC and DC circuit protection applications.
• 200 kA Breaking Capacity: High interrupting rating ensures reliable fault current interruption in demanding electrical environments.
• Ferrule Terminal Design: Copper ferrule terminals provide secure, low-resistance connections for professional installations.
• PolyTube Body Construction: Durable insulating material ensures reliable performance and electrical isolation.
• RoHS Compliant: Meets environmental standards for professional electrical component applications.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 30 A
• Body Insulating Material: PolyTube
• Connection Terminal Material: Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class RK5
• Mounting Method: Clip
• Product Length: 2 in
• Product Weight: 0.037 lb
• Rated Voltage Ac Ul: 250 V
• Rated Voltage Dc Ul: 160 V
• Rohs Compliant: Yes
• Speed Characteristic: Time Delay

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Motor Control Centers and Industrial Equipment Protection
• Commercial HVAC and Lighting Circuit Protection
• Power Distribution Panel and Switchgear Applications
• DC Power Supply and Battery System Protection
• Process Control and Automation Equipment
• Emergency Power and UPS System Protection
• Professional Electrical Service and Maintenance

Why Choose Mersen Quality?

Mersen fuses deliver proven reliability with RoHS compliant construction and professional-grade materials. The TR30R combines time-delay protection characteristics with high breaking capacity for dependable overcurrent protection in demanding electrical applications.
