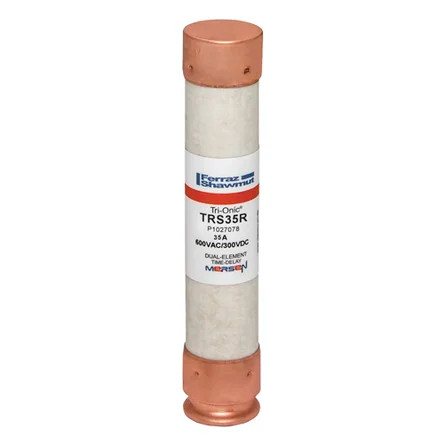

Mersen TRS35R Class RK5 Time-Delay Fuse 35A 600VAC/300VDC Ferrule Terminal

Mersen TRS35R Class RK5 Time-Delay Fuse 35A 600VAC/300VDC Ferrule Terminal

Professional Time-Delay Protection for AC/DC Applications

The Mersen TRS35R delivers reliable overcurrent protection with Class RK5 time-delay characteristics for both AC and DC circuits. This 35A fuse features ferrule terminals with copper construction and PolyTube body insulation, providing dependable performance at 600VAC and 300VDC ratings with 200kA breaking capacity for professional electrical installations.

Professional Features & Benefits

• 35A Current Rating: Provides precise overcurrent protection for medium-load circuits and equipment protection applications.
• Class RK5 Time-Delay: Allows temporary overloads while protecting against sustained overcurrent conditions and short circuits.
• 600VAC/300VDC Dual Rating: Versatile voltage compatibility for both AC and DC electrical systems and applications.
• 200kA Breaking Capacity: High interrupting rating ensures reliable fault current interruption in demanding electrical environments.
• Ferrule Terminal Design: Copper terminals provide secure connections and reliable electrical contact in clip-mount installations.
• PolyTube Body Construction: Durable insulating material ensures safe operation and protection in industrial environments.
• 50/60Hz Frequency Rating: Compatible with standard North American and international power system frequencies.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 35 A
• Body Insulating Material: PolyTube
• Connection Terminal Material: Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class RK5
• Mounting Method: Clip
• Product Length: 5.5 in
• Product Weight: 0.319 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 300 V
• Speed Characteristic: Time Delay

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Centers
• Commercial Electrical Panels
• HVAC Equipment Protection
• Manufacturing Equipment Circuits
• Power Distribution Systems
• DC Power Supply Protection
• Process Control Applications

Why Choose Mersen Quality?

Mersen fuses deliver proven reliability with precision-engineered time-delay characteristics and high breaking capacity ratings. The copper ferrule terminals and PolyTube construction ensure long-term performance in demanding electrical environments, backed by UL ratings for professional confidence.
