Hammond Manufacturing CSG12124 GALV SCR COVER - 12 x 12 x 4

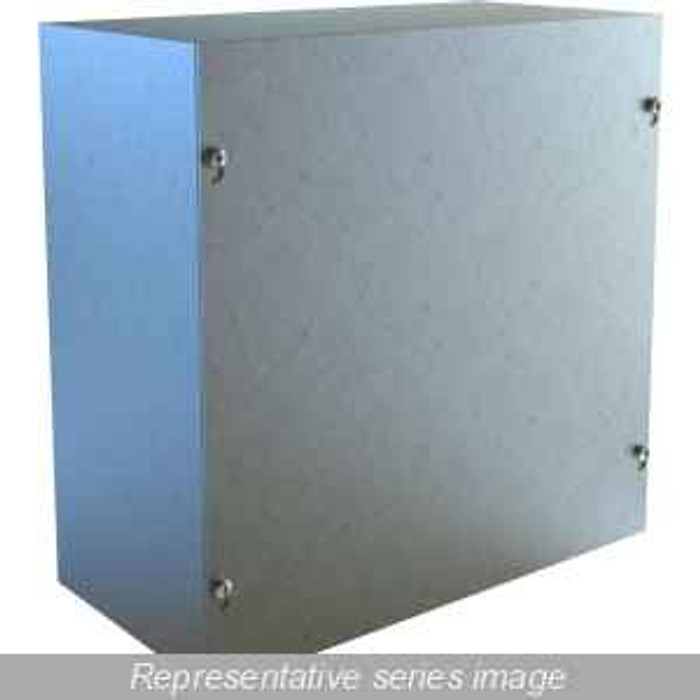

Hammond Manufacturing Galvanized Steel Screw Cover Enclosure 12x12x4 Type 1 NEMA Rated

(No reviews yet) Write a Review

Model: CSG12124
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$86.57
$35.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hammond Manufacturing Galvanized Steel Screw Cover Enclosure 12x12x4 Type 1 NEMA Rated

Professional galvanized steel enclosure protection for electrical and control applications

Hammond Manufacturing delivers reliable electrical enclosure protection with this galvanized steel screw cover design. The 12x12x4 inch dimensions provide versatile mounting options while the Type 1 NEMA rating ensures dependable performance in indoor applications. Constructed from durable galvanized steel material with CSA and UL certifications for professional installations.

Professional Features & Benefits

  • 12x12x4 Inch Dimensions: Compact size accommodates various electrical components while maximizing installation flexibility in space-constrained applications.
  • Galvanized Steel Construction: Corrosion-resistant material provides long-lasting durability and reliable protection for enclosed electrical equipment.
  • Type 1 NEMA Rating: Meets professional standards for indoor use, protecting against accidental contact with enclosed equipment and falling dirt.
  • IP20 Protection: Prevents access to hazardous parts and protects against solid objects larger than 12.5mm diameter.
  • CSA LR21001 & UL E65324 Listed: Dual certification ensures compliance with North American electrical safety standards for professional installations.
  • Screw Cover Design: Secure fastening system provides reliable access control while maintaining enclosure integrity during service.
  • 9 lb Weight Rating: Robust construction supports reliable mounting and long-term structural integrity in demanding applications.

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 4
  • Ip Rating: IP20
  • Product Height: 12
  • Product Material: Galvanized Steel
  • Product Weight: 9 lbs
  • Product Width: 12
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul
  • Type Rating: type-1
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Panels
  • Electrical Distribution Equipment
  • Motor Control Centers
  • Commercial Building Systems
  • Manufacturing Facility Controls
  • Utility and Power Applications
  • Professional Electrical Installations

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing provides dependable electrical enclosure solutions with dual CSA and UL certifications ensuring compliance with North American safety standards. The galvanized steel construction and Type 1 NEMA rating deliver reliable protection for professional electrical installations, backed by comprehensive regulatory compliance including REACH, RoHS, and USMCA standards.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP20
Product Height:
12
Product Material:
Galvanized Steel
Product Weight:
9 lbs
Product Width:
12
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul
Type Rating:
type-1
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
4

Hammond Manufacturing CSG12124 – Frequently Asked Questions

1) Can I use a Hammond CSG12124 Type 1 enclosure outdoors or in a washdown area?
No. The CSG12124 carries a Type 1 rating with IP20 protection, which is indoor use only. It guards against contact with live parts and falling dirt, and blocks solid objects larger than 12.5 mm, but there is no protection against water, dust, or hose-down. For anything exposed to weather, splashing, or washdown, you need a Type 3R, 4, or 4X enclosure instead.
2) What are the actual box dimensions on the Hammond CSG12124, and is that inside or outside?
The CSG12124 is a 12 x 12 x 4 inch box: 12 inch height, 12 inch width, 4 inch depth. The 4 inch depth is what usually decides the job, since it sets how much room you have behind the cover for breakers, terminal blocks, or a small controller once wire bending space is accounted for. Shipping weight is 9 lbs.
3) Will a galvanized steel junction box pass inspection on a commercial job in the US and Canada?
The CSG12124 is built to both CSA and UL standards, CSA file LR21001 and UL file E65324, so it is listed for use on either side of the border. That dual listing is what an AHJ looks for on a commercial control or distribution install. It is made in Canada and is USMCA compliant, which also matters if you are working a project with domestic content requirements.
4) Screw cover or hinged door enclosure for a junction box install?
A screw cover box like the CSG12124 is the right call where you terminate the wiring and then rarely open it again: pull boxes, splice points, feed-through points in a raceway run. The cover fastens down all the way around, so nothing swings open and nobody casually gets into it. If someone will be inside the box weekly to reset a device, check terminals, or troubleshoot, a hinged-cover or door-style enclosure is the better buy, because pulling and re-driving a set of cover screws every visit gets old fast and the screws walk away.
5) Does the Hammond CSG12124 come with knockouts, or do I drill my own conduit holes?
Plan on making your own openings. This is a blank screw cover enclosure, so you locate and punch conduit entries where your raceway actually lands. Bring a knockout punch set sized to your conduit trade sizes, and use listed fittings plus sealing washers or locknuts appropriate to the entry. Keep punched holes off the cover flange area so the cover still seats flat and the screws draw down evenly.
6) Do I need to paint or prime a galvanized enclosure before mounting it?
No. The CSG12124 body is galvanized steel, so the zinc coating is the corrosion protection and it ships ready to hang. That is the practical difference from a painted gray enclosure: the galvanized finish takes scratches and handling better in a mechanical room or plant environment, but it is a utility finish, not a public-facing one. In a finished lobby or tenant space most specs call for a painted enclosure instead.
7) Is this Hammond enclosure acceptable for a facility with RoHS and REACH requirements?
Yes. The CSG12124 is listed as both RoHS compliant and REACH compliant, which is what institutional and large MRO buyers typically need on file for standardized enclosure purchases. It is also USMCA compliant, with Canada as the country of origin.
8) Can I mount a 12x12x4 screw cover enclosure on its side or flat on a ceiling?
Yes, a Type 1 screw cover box like the CSG12124 can be mounted in any orientation, since there is no gasket seal or drainage path that depends on which way is up. At 9 lbs empty it hangs off standard strut or unistrut with no special support, though back-mount it to the structure rather than to drywall alone once devices and conduit loads are on it. Just keep the cover accessible, code requires junction boxes to remain reachable after the install is finished.
