Hammond Manufacturing CS18188 SCREW COVER NO KO'S 18X18X8 - 18 x 18 x 8

Hammond Manufacturing Steel Electrical Enclosure 18x18x8 Type 1 Screw Cover

(No reviews yet) Write a Review

Model: CS18188
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$179.73
$134.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

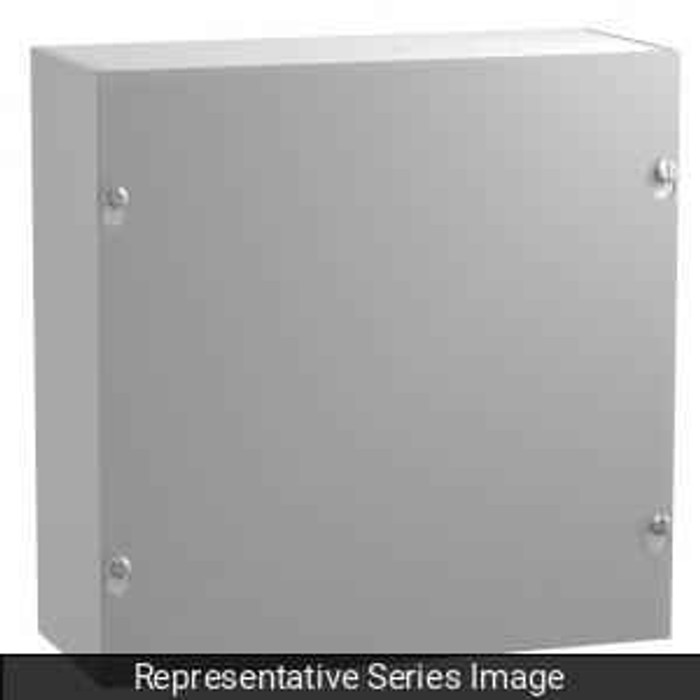

Hammond Manufacturing Steel Electrical Enclosure 18x18x8 Type 1 Screw Cover

Professional electrical enclosure with secure screw cover design

The Hammond Manufacturing Steel Electrical Enclosure delivers reliable protection for electrical components in a robust 18x18x8 inch configuration. Constructed from mild steel with Type 1 rating and IP20 protection, this screw cover enclosure provides professional-grade housing for indoor electrical installations without knockouts for custom applications.

Professional Features & Benefits

  • 18x18x8 Inch Dimensions: Spacious interior accommodates various electrical components and wiring configurations
  • Mild Steel Construction: Durable material provides long-lasting protection and structural integrity
  • Type 1 Rating: Meets NEMA standards for indoor use, protecting against incidental contact with enclosed equipment
  • IP20 Protection: Guards against solid objects larger than 12.5mm while maintaining proper ventilation
  • Screw Cover Design: Secure closure system ensures reliable access control and tamper resistance
  • CSA & UL Listed: Certified compliance with North American safety standards for professional installations
  • 26 lb Weight Capacity: Robust construction supports substantial electrical equipment loads

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 8
  • Ip Rating: IP20
  • Product Height: 18
  • Product Material: Mild Steel
  • Product Weight: 26 lbs
  • Product Width: 18
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul
  • Type Rating: type-1
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Panels
  • Commercial Electrical Distribution
  • Manufacturing Equipment Housing
  • Facility Power Management Systems
  • Custom Electrical Assemblies
  • Professional Service Installations

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing delivers proven reliability with CSA and UL certifications, ensuring compliance with North American safety standards. The Type 1 rated mild steel construction and comprehensive regulatory compliance including RoHS and REACH standards demonstrate commitment to professional-grade electrical enclosure solutions.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP20
Product Height:
18
Product Material:
Mild Steel
Product Weight:
26 lbs
Product Width:
18
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul
Type Rating:
type-1
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
8

Hammond Manufacturing CS18188 – Frequently Asked Questions

1) Does the Hammond CS18188 18x18x8 enclosure come with knockouts?
No knockouts. The CS18188 ships as a blank box, so you punch your own conduit entries where the job needs them. Plan on a knockout punch set and the right hole saw or step bit for the mild steel walls, plus conduit hubs or connectors, which are not included.
2) What are the actual box dimensions on the Hammond CS18188, and how much depth do I have for devices?
18 inches high by 18 inches wide by 8 inches deep. The 8 inch depth is generous for a junction or pull box of this face size, so it takes back-mounted terminal blocks, small contactors, or a subpanel with wiring room behind the cover. Check the 18 x 18 face against your available wall space before mounting.
3) Is the Hammond CS18188 UL and CSA listed for a commercial inspection?
Both. The enclosure carries UL listing under file E65324 and CSA certification LR21001, so it satisfies North American listing requirements for indoor electrical equipment housings. Those file numbers are what an inspector or a submittal package will ask for.
4) How heavy is the 18x18x8 Hammond steel enclosure, and does that affect how I mount it?
26 lbs empty. That is a two-hand lift and it rules out drywall anchors on their own. Fasten through to studs, unistrut, or a masonry wall with appropriate anchors, and remember the weight climbs once the devices and wiring go in.
5) Screw cover or hinged door enclosure, which should I use for a junction box?
A screw cover box like the CS18188 is the right choice where the enclosure is closed up and rarely opened: pull boxes, junction points, splice enclosures, and terminations. The cover fastens on all around, which adds tamper resistance but means you handle a loose 18 x 18 panel every time you open it. If the box is a control enclosure someone opens weekly, a hinged cover version is easier to live with.
6) Does the Hammond CS18188 include a back panel or mounting plate?
No sub-panel is included with the CS18188. It is supplied as the mild steel box and screw cover. If you plan to mount DIN rail, breakers, or a control assembly inside, order a matching Hammond back panel sized for an 18 x 18 enclosure separately.
7) What is the exact part number to order this Hammond 18x18x8 screw cover box?
Hammond Manufacturing part number CS18188. The digits read out as the size: 18 high, 18 wide, 8 deep, screw cover, no knockouts.
8) Does this Hammond enclosure meet RoHS and REACH requirements for a spec submittal?
Yes on both, and it is USMCA compliant as well, which matters for government and institutional procurement where origin documentation is required. The enclosure is manufactured in Canada.
