Product Specs
- Country Of Origin:
- Canada
- Csa Cert :
- LR21001
- Ip Rating:
- IP20
- Product Height:
- 6
- Product Material:
- Galvanized Steel
- Product Weight:
- 3 lbs
- Product Width:
- 6
- Reach Compliant:
- Yes
- Rohs Compliant:
- Yes
- Standards:
- csa, ul
- Type Rating:
- type-1
- Ul File :
- E65324
- Usmca Compliant:
- Yes
- Product Depth:
- 4
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Enclosures
- Product Type:
- Screw-Cover Enclosure

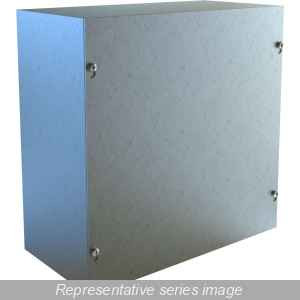

Hammond Manufacturing CSG664 – Frequently Asked Questions
1) Is the Hammond CSG664 junction box rated for outdoor or wet locations?
No. The CSG664 is a Type 1 enclosure with an IP20 rating, which means indoor use only, protection against solid objects but no protection against water. Mount it in dry indoor areas. For a washdown, rain, or outdoor location you need a Type 3R, 4, or 4X enclosure instead.
2) What size is the Hammond CSG664 pull box inside?
The CSG664 is a 6 x 6 x 4 inch box, 6 inches high by 6 inches wide with a 4 inch depth. That depth is what usually decides it, since it sets how much room you have behind the cover for conductors, splices, and bending radius.
3) Is the Hammond CSG664 enclosure UL listed and CSA certified for an inspected commercial job?
Yes on both. The CSG664 carries UL and CSA recognition, UL file E65324 and CSA certification LR21001. Those are the file numbers an inspector or submittal package will want against a Type 1 enclosure.
4) Does the Hammond CSG664 come with a cover, or do I order that separately?
The cover is included. The CSG664 is a screw cover enclosure, so the panel and its screws come as part of the box, not as a separate catalogue item.
5) Is the Hammond CSG664 box painted steel or galvanized?
Galvanized steel, unpainted. That is the usual choice where the box sits in a mechanical room, above ceiling, or anywhere appearance does not matter and you want the zinc coating rather than a finish you have to touch up after drilling conduit knockouts.
6) Does the Hammond CSG664 meet RoHS and REACH for a government or institutional spec?
Yes. The CSG664 is listed as both RoHS and REACH compliant, and it is USMCA compliant with Canada as the country of origin, which covers the usual domestic-content and trade-preference questions on public procurement.
7) Should I use a screw cover box like the CSG664 or a hinged-cover enclosure?
A screw cover suits a box you open rarely, a pull point, a splice, a junction between conduit runs. Every access means backing out the cover screws, so if you expect routine service inside the enclosure, a hinged door version is the better pick. For a 6 x 6 x 4 pull or splice point indoors, the screw cover is the standard answer.
8) How heavy is the Hammond CSG664, and can it be supported off the box alone?
It weighs 3 lbs empty, so mounting is straightforward on strut, plywood backing, or a stud. The real load question is what you run into it, since conduit and cable weight will exceed the box itself.
9) Can I order the Hammond CSG664 with knockouts already punched?
The CSG664 is a single catalogue item, model CSG664, with no option variations to specify. Any conduit openings are field-drilled or punched to suit your run.
