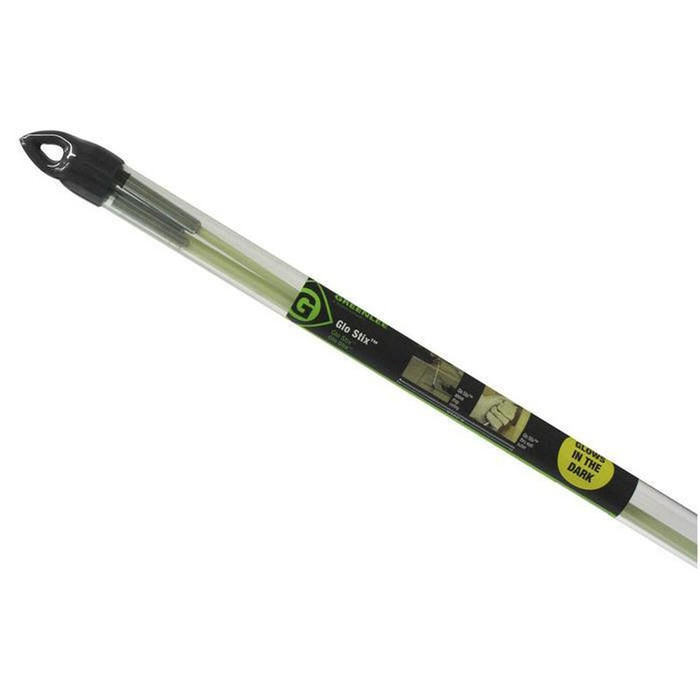

Greenlee 540-15 Glo Stix Kit, Luminescent Fiberglass Fish Rod Set

Greenlee 540-15 Glo Stix Kit, Luminescent Fiberglass Fish Rod Set

The Greenlee 540-15 Glo Stix Kit is a luminescent fiberglass wire-fishing system designed to make pulling voice, data, and video cable easier in dark spaces such as above ceilings, inside walls, and below sub-floors. The kit measures 3/16" X 15' (4.7 mm X 4.6 m) and is built from 3 sections that glow in the dark, allowing installers to visually track the rod's position and orientation as it is fished through concealed spaces. Each section connects using sturdy, steel-threaded connectors that are interchangeable with Greenlee Tools' 1/4 IN (6.4 mm) Fish Stix, giving electricians and low-voltage installers a flexible, mix-and-match fishing system rated for a maximum pulling strength of 200 lbs. (0.9 kN).

Key Features

• Trade Size: 3/16" X 15' (4.7 mm X 4.6 m) overall length across 3 sections for reaching deep into walls, ceilings, and sub-floors.
• Durable Construction: Luminescent fiberglass rod sections that glow in the dark, making fishing through unlit or enclosed spaces significantly easier to see and control.
• Interchangeable Connectors: Sturdy, steel-threaded connectors are interchangeable with Greenlee Tools' 1/4 IN (6.4 mm) Fish Stix, allowing the kit to be combined with other Fish Stix or Glo Stix sections for longer reaches.
• Included Nose Tips: Comes with Bullet and "J" Hook nose tips for guiding the rod through obstacles and snagging wire or cable.
• Optional Whisk Nose Tip: An optional Whisk Nose Tip is available for fishing over obstacles and can be used to guide extended Glo Stix sideways above ceilings by rotating the rod.
• Snag-and-Retrieve Capability: Can be used to fish longer lengths by providing a tip that can be snagged from the opposite direction with another extended Fish or Glo Stix fitted with a hook nose tip.
• Flexible Profile: More flexible for fishing in walls through outlet box holes, with a minimum bend radius of 4-1/4 IN (108 mm).
• Tensile Strength: 200 lbs. (0.9 kN) maximum pulling strength for reliable wire and cable pulls.
• Storage Tube Included: Clear, non-metallic storage tube keeps the Glo Stix charged with light and ready to use on the next job.

Technical Specifications

• Sections: 3
• Size: 3/16" X 15' (4.7 mm X 4.6 m)
• Diameter: 3/16 IN (4.700 MM)
• Section Length: 5.000 FT (1.500 M)
• Minimum Bend Radius: 4-1/4 IN (108.000 MM)
• Tensile Strength: 200.000 LB (0.900 KN) Maximum Pulling Strength
• Includes: Bullet And "J" Hook Nose Tips
• Sub Brand: Glo Stix
• Replacement Parts: 11583G, 11584, 12920, 11585, 11427, 12922G, 89803 Fish/Glo Stix sections
• Accessories: 10497 Hook Nose Tip, 10498 Bullet Nose Tip, 11426 Whisk Nose Tip

Typical Applications

• Fishing Voice, Data, and Video Wire Above Ceilings
• Cable Fishing Inside Wall Cavities and Through Outlet Box Holes
• Wire Fishing Below Sub-Floors and in Dark, Enclosed Spaces
• Extending Reach with Combined Fish Stix and Glo Stix Sections
• Commercial and Residential Low-Voltage and Electrical Rough-In Work

Why Greenlee?

Greenlee's Glo Stix Kit combines glow-in-the-dark fiberglass rods with sturdy, steel-threaded connectors that interchange with the broader Greenlee Fish Stix system, giving installers a versatile and dependable wire-fishing solution. Rated for a 200 lb. maximum pulling strength and backed by a durable, non-metallic storage tube, this kit is built for professionals who need reliable performance when fishing cable through dark, hard-to-reach spaces.
