Greenlee 7704SB Quick Draw Flex 8-Ton Hydraulic Knockout Driver

Greenlee 7704SB Quick Draw Flex 8-Ton Hydraulic Knockout Driver

(No reviews yet) Write a Review

Model: 7704SB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,617.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Greenlee 7704SB Quick Draw Flex 8-Ton Hydraulic Knockout Driver

The Greenlee 7704SB Quick Draw Flex® is an 8-Ton Hydraulic Knockout Kit built for punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass, and plastics. This driver punches up to 10 ga mild steel or 12 ga stainless steel, and the included KCC-QDF2 carrying case accommodates 1/2" - 2" conduit size knockouts (hole size 0.89" - 2.42" or 22.5 mm - 61.5 mm). Designed with a Flex Head for maximum flexibility in tight working areas, this Round-shaped driver is compatible with all Greenlee knockouts up to 2", making it a versatile addition to any electrician's hydraulic punch lineup.

Key Features

  • Size Range: Case accommodates 1/2" - 2" conduit size knockouts (hole size 0.89" - 2.42" or 22.5 mm - 61.5 mm).
  • Punching Capacity: Punches up to 10 ga mild steel or 12 ga stainless steel for demanding installations.
  • Flex Head Design: Allows for maximum flexibility in tight working areas where clearance is limited.
  • Broad Compatibility: Works with all Greenlee knockouts up to 2" in diameter.
  • Easy Threading: Draw studs feature a "dog point" tip that helps eliminate cross-threading, with hex key access for easy removal from the tool.
  • Compact, Portable Design: Built for portability and fast, easy one-person operation on the jobsite.
  • Made in the USA: Driver manufactured in the USA from US and global components; draw studs and case also made in the USA.

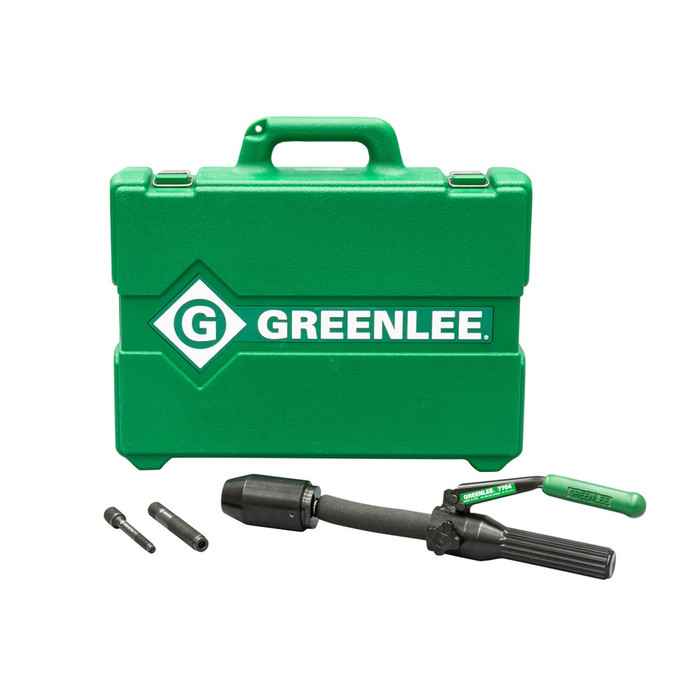

  • Complete Kit: Includes the Quick Draw Flex® knockout driver, 7/16" short hydraulic draw stud, 3/4" short hydraulic draw stud, and KCC-QDF2 carrying case.

Technical Specifications

  • Type: 8-Ton Hydraulic Knockout Kit
  • Shape: Round
  • Material Capacity: Punch up to 10 ga mild steel or 12 ga stainless steel
  • Size: Case accommodates 1/2" - 2" conduit size knockouts (hole size 0.89" - 2.42" or 22.5 mm - 61.5 mm)
  • Includes: Quick Draw Flex® knockout driver, 7/16" short hydraulic draw stud, 3/4" short hydraulic draw stud, KCC-QDF2 carrying case
  • Country of Origin: United States
  • CA Prop 65 Cancer: Yes
  • CA Prop 65 Reproductive Harm: No
  • CA Prop 65 Chemical Names: Diisononyl phthalate (DINP)

Typical Applications

  • Punching Holes in Mild Steel and Stainless Steel Enclosures
  • Aluminum, Brass, and Copper Panel Fabrication
  • Fiberglass and Plastic Enclosure Preparation
  • Electrical Panel and Enclosure Knockout Installation
  • Tight-Access Jobsite Installations Requiring a Flex Head

Why Greenlee?

Greenlee engineers the Quick Draw Flex® driver and its draw studs and carrying case in the USA, combining US and global components into a compact, one-person-operable hydraulic knockout kit. The dog-point draw studs and hex key access simplify setup and removal, while the Flex Head design and broad compatibility with all Greenlee knockouts up to 2" make this an efficient, reliable choice for professional electrical installation work.

Manufacturer Resources

Product Specs

list_batch:
GREE-20260923
Product Type:
Knockout Driver
Country Of Origin:
United States
Configuration:
8-Ton Hydraulic Knockout Kit
Department:
Electrical
Product Subgroup:
Knockout Punches
Product Size:
1/2" - 2"
Product Group:
Electrical Installation Tools

Greenlee 7704SB – Frequently Asked Questions

1) What size knockouts will the Greenlee 7704SB Quick Draw Flex punch?
The 7704SB kit covers 1/2 inch through 2 inch conduit size knockouts, which works out to finished holes of 0.89 inch to 2.42 inch (22.5 mm to 61.5 mm). The KCC-QDF2 case is laid out for that range, and the driver itself works with all Greenlee knockouts up to 2 inch. Anything above 2 inch conduit needs a larger-capacity driver.
2) How thick a panel can the 7704SB punch through?
Rated to punch up to 10 gauge mild steel, or 12 gauge in stainless. That covers most electrical enclosures, panel sides, and junction boxes. It also punches aluminum, brass, copper, fiberglass, and plastics. If you are working stainless heavier than 12 gauge, this 8-ton driver is not the tool.
3) What comes in the Greenlee 7704SB kit, and what else do I need to buy?
The kit ships with the Quick Draw Flex driver, a 7/16 inch short hydraulic draw stud, a 3/4 inch short hydraulic draw stud, and the KCC-QDF2 carrying case. The punches and dies themselves are not part of the kit, so you order the Greenlee knockout sets or individual punch and die pairs for the hole sizes you need, up to 2 inch.
4) Will the 7704SB work with Greenlee punches I already own?
Yes. The Quick Draw Flex driver is compatible with all Greenlee knockouts up to 2 inch, and the two included draw studs are the 7/16 inch and 3/4 inch sizes Greenlee punches use. Existing Greenlee sets in that range carry straight over.
5) Do I need a separate hydraulic pump or foot pump for the 7704SB?
No. The Quick Draw Flex is a self-contained 8-ton hydraulic knockout driver built for one-person operation, so there is no remote pump or hose to set up. You thread the draw stud, seat the punch and die, and run it at the tool.
6) Can I use this driver inside a crowded panel where there is no room to swing a tool?
That is what the Flex Head is for. The head articulates so the driver can be worked in tight, low-clearance spots, which is the usual problem when punching the side of a loaded enclosure or a panel in a cramped wall cavity.
7) Why do my draw studs keep cross-threading, and does the Greenlee 7704SB fix that?
The draw studs in this kit use a dog point tip, a reduced lead on the end of the thread that starts the stud straight instead of letting it bite at an angle. They also have hex key access so a stud can be backed out of the tool without a fight if it does bind.
8) Is the Greenlee 7704SB made in the USA for a buy-American job spec?
Country of origin is the United States. The driver is manufactured in the USA from US and global components, and the draw studs and carrying case are also made in the USA. Note that mixed-component language matters on some federal specs, so read the clause on your contract against that wording.
9) Does the Greenlee 7704SB carry a California Prop 65 warning?
Yes, a cancer warning applies, listing diisononyl phthalate (DINP). No reproductive harm warning is attached. Facilities and institutional buyers who log Prop 65 notices on incoming tools should record it on receipt.
