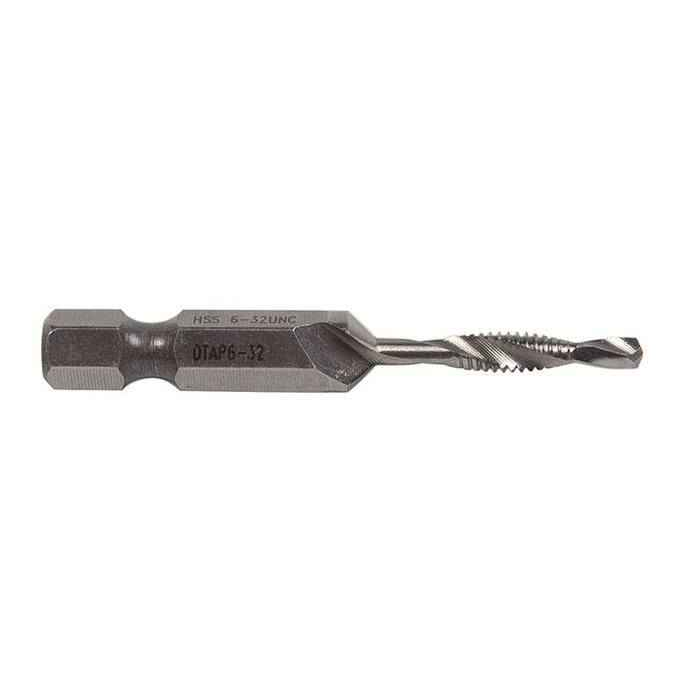

Greenlee Drill/Tap Bit, High-Speed Steel with Quick Change Hex Shank

Greenlee Drill/Tap Bit, High-Speed Steel with Quick Change Hex Shank

(No reviews yet) Write a Review

Model: DTAP6-32

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Greenlee #10-24NC High Speed Steel Drill/Tap Bit with Quick Change Hex Shank

Professional Three-in-One Drilling, Tapping & Deburring Solution

The Greenlee #10-24NC Drill/Tap Bit delivers professional-grade performance for electrical contractors and technicians requiring efficient hole preparation in metal applications. This high-speed steel bit combines drilling, tapping, and deburring operations in a single tool, designed for up to 10-gauge metal thickness with 24 TPI threading capability and quick change hex shank compatibility.

Professional Features & Benefits

  • High Speed Steel Construction: Hardened high-speed steel material provides superior durability and longer tool life compared to carbon steel alternatives for demanding professional applications.
  • Three-in-One Operation: Complete hole drilling, tapping and deburring/countersinking in one operation with power drill saves significant labor time and increases job site efficiency.
  • Quick Change Hex Shank: 1/4 inch quick change hex shank design ensures strong connection to drill chuck and enables rapid bit changes for improved productivity.
  • Back Tapered Design: Back tapered beyond tap prevents thread damage from over-drilling, ensuring clean, professional threading results every time.
  • Split Point Technology: Split point with web thinning provides precise drilling starts and reduces walking on metal surfaces for accurate hole placement.
  • Multi-Material Compatibility: Designed to work effectively on mild steel, copper, brass, and aluminum up to 10-gauge thickness for versatile job site applications.
  • Integrated Deburring: Built-in deburr/countersink feature beyond back taper eliminates sharp edges and provides finished hole preparation in one step.

Technical Specifications

  • Material Thickness: Up to 10 GA
  • Material Type: Mild Steel, Copper, Brass, Aluminum
  • Point Type: Split Point With Web Thinning
  • Product Material: High Speed Steel
  • Product Size: #10
  • Shank: 1/4 IN Quick Change Hex
  • Thread Per Inch: 24 TPI
  • Thread Type: NC

Installation & Operation

  1. Mount the drill/tap bit securely in a compatible power drill with quick change chuck or standard chuck adapter.
  2. Mark the desired hole location and ensure proper workpiece support and clamping for safe operation.
  3. Begin drilling at moderate speed with steady downward pressure, allowing the split point to establish the hole location.
  4. Continue drilling through the material thickness, allowing the integrated tap section to create threads automatically.
  5. Complete the operation by allowing the deburring/countersink feature to finish the hole edges for professional results.
  6. Remove the bit and inspect the completed threaded hole for proper thread formation and clean edges before fastener installation.

Professional Applications

  • Electrical panel and enclosure installations requiring threaded mounting holes
  • HVAC equipment mounting and bracket attachment applications
  • Industrial machinery assembly and maintenance operations
  • Commercial construction metal fabrication and modification work
  • Telecommunications equipment installation and mounting systems
  • Automotive and transportation industry metal working applications
  • General contractor metal preparation and fastening operations

Why Choose Greenlee Quality?

Greenlee delivers professional-grade tools engineered for the demands of electrical and construction professionals. This high-speed steel drill/tap bit represents Greenlee’s commitment to durability, precision, and job site efficiency, providing reliable performance across multiple material types with the convenience of integrated drilling, tapping, and deburring operations in a single professional tool.

Manufacturer Resources

Spec Sheet

Product Specs

Product Material:
High Speed Steel
Product Subgroup:
Hole Saws & Bits
Product Type:
Drill/Tap Bit
Department:
Electrical

Greenlee DTAP6-32 – Frequently Asked Questions

1) What thread sizes does the Greenlee drill/tap bit come in?
Eight thread sizes: #6-32NC, #8-32NC, #10-24NC, #10-32NF, #12-24NC, 1/4-20NC, 5/16-18NC and 3/8-16NC. The MPNs follow the thread, so DTAP10-24 is the #10-24 coarse bit and DTAP10-32 is the #10-32 fine one. Only #10 is offered in both coarse and fine, so if you are matching existing 10-32 machine screws in an enclosure, order DTAP10-32 rather than the 10-24.
2) How thick a piece of metal can a Greenlee DTAP drill/tap bit thread?
Up to 10 gauge. It is built for sheet and light plate in mild steel, copper, brass and aluminum. Thicker stock or hardened material is outside what the bit is rated to drill and tap in one pass.
3) Will this drill/tap bit fit my impact driver?
The shank is a 1/4 inch quick change hex, so it drops straight into a quick-change chuck or a standard three-jaw drill chuck. A 1/4 inch hex is the same shank profile an impact driver's collet takes.
4) Do I still need to drill a pilot hole before tapping with this bit?
No. The bit drills, taps and deburrs in one pass off a power drill, so there is no separate pilot drill and no second trip back to the hole with a hand tap. The split point with web thinning starts the hole without walking on sheet metal, and the deburr/countersink section past the tap cleans the edge as you finish.
5) Will over-drilling ruin the threads I just cut?
The bit is back tapered beyond the tap section, so pushing past the thread does not chew up what you just cut. That is the main reason to use one of these instead of running a plain twist drill and a separate tap on a battery drill.
6) Is a high-speed steel drill/tap bit good enough for stainless enclosures?
The bit is high-speed steel and rated for mild steel, copper, brass and aluminum. Stainless is not on that list, so for stainless enclosures use a purpose-made drill and tap rather than this bit.
7) Which size do I need for mounting hardware inside an electrical panel?
Panel and enclosure work usually runs on #10 and 1/4-20 machine screws, and both are covered: DTAP10-24 or DTAP10-32 for #10, DTAP1/4-20 for 1/4-20. Step up to 5/16-18 (DTAP5/16-18) or 3/8-16 (DTAP3/8-16) for heavier equipment brackets and strut-mounted gear. All of these are coarse thread apart from the #10-32 fine.
8) Does NC on these Greenlee bits mean coarse thread?
Yes. NC is coarse and NF is fine, so #12-24NC cuts a coarse 24 TPI thread while #10-32NF cuts the fine 32 TPI. Seven of the eight sizes are NC; the #10-32 is the only NF bit in the group.
