Greenlee Gator Grips Cable Pul...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$35.10

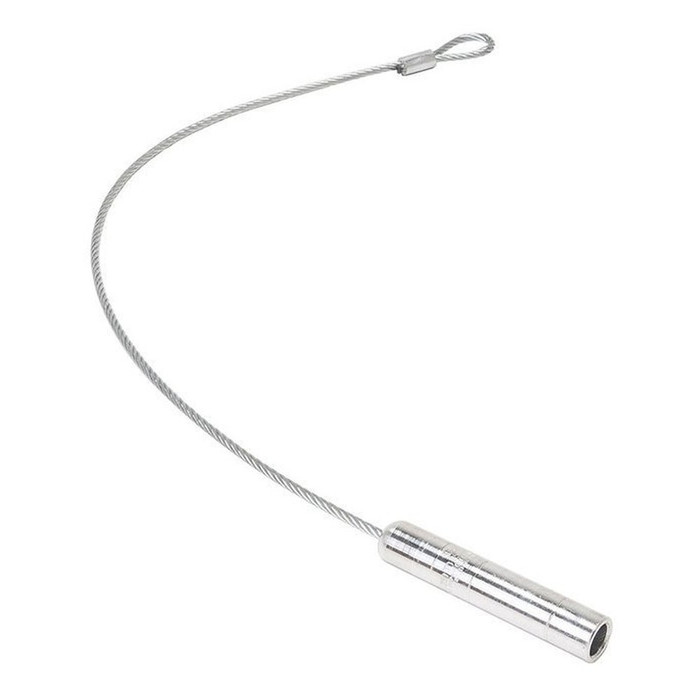

Greenlee Gator Grips Cable Pulling Grip, Aluminum

Greenlee Gator Grips Cable Pulling Grip, Aluminum

(No reviews yet) Write a Review

Model: GG250-350XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Greenlee GG250-350S Gator Grips™ Short Pulling Grip, Aluminum

The Greenlee GG250-350S is part of the Gator Grips™ Short Grip Assembly line, purpose-built for electrical cable pulling on 1 AWG through 1000 MCM Copper and Aluminum conductors, including compressed and compact CU and AL constructions. Constructed from Aluminum, this pulling grip is engineered to work seamlessly with the Greenlee EK12IDL or HK12ID crimping tools, allowing installers to crimp any covered cable size without changing dies. As a Short Grip in the 250-350 KCMIL range, it delivers fast, repeatable setup for demanding cable-pulling applications in commercial and industrial electrical installations.

Key Features

  • Universal Die Compatibility: Works with the Greenlee EK12IDL or HK12ID to crimp any covered cable size without swapping dies, saving time on the job site.
  • Wire Range Coverage: A set of 6 grips covers cable sizes from 1 AWG through 1000 MCM, spanning the full range needed for most large-conductor pulling jobs.
  • Fast Set-Up: A 2-minute set-up time keeps crews moving on schedule during cable-pull operations.
  • Overlap Prevention: 5 different harness lengths are available across the Gator Grips™ system to prevent overlap during cable pulls, improving pull consistency.
  • Durable Construction: Aluminum material construction provides a lightweight, rugged grip built for repeated field use.
  • Wide Conductor Compatibility: Rated for 1 AWG - 1000 MCM Copper, Aluminum, Compressed, and Compact (CU and AL) wire types, giving crews flexibility across conductor types on a single job.
  • Type: Configured as a Pulling Grip, specifically the 250-350 Short Grip within the Gator Grips™ family, sized for the 250-350 KCMIL range.

Technical Specifications

  • Standard: Gator Grips™ 250-350 Short Grip
  • Wire Type: 1 AWG - 1000 MCM Copper, Aluminum, Compressed and Compact (CU and AL)
  • Type: Pulling Grips
  • Material: Aluminum
  • Sub Brand Name: Gator Grips™

Typical Applications

  • Electrical Cable Pull Operations
  • Large-Conductor Copper and Aluminum Cable Installations
  • Commercial and Industrial Electrical Installations
  • Cable Termination and Pulling Crews Using Compact and Compressed Conductors

Why Greenlee?

Greenlee's Gator Grips™ system is engineered for durable Aluminum construction and broad wire-type coverage, from 1 AWG through 1000 MCM Copper and Aluminum, including compressed and compact conductors. With a 2-minute set-up and compatibility with the Greenlee EK12IDL or HK12ID crimping tools, the GG250-350S helps professional crews move efficiently through demanding cable-pulling jobs while relying on Greenlee's reputation for rugged, job-site-ready tooling.

Manufacturer Resources

Spec Sheet

Product Specs

Product Subgroup:
Cable Pullers
Department:
Electrical
Product Material:
Aluminum
list_batch:
GREE-20260923
Product Type:
Pulling Grip
Product Group:
Electrical Installation Tools

Greenlee GG250-350XL – Frequently Asked Questions

1) What cable sizes do Greenlee Gator Grips GG250-350 pulling grips cover?
The GG250-350 grips are sized for the 250 to 350 KCMIL range. Across the Gator Grips family, a set of 6 grips covers 1 AWG through 1000 MCM, so if you are pulling conductors outside 250-350 KCMIL you need the other grips in the set rather than this one.
2) Will Gator Grips work on compact and compressed aluminum conductors, or only standard stranded?
Compact and compressed constructions are covered. The wire type rating is 1 AWG to 1000 MCM copper, aluminum, compressed and compact, in both CU and AL, so a crew running compact AL feeders does not need a different grip family.
3) Which crimping tool do I need to install a Greenlee Gator Grip?
Crimp them with the Greenlee EK12IDL or HK12ID. Either tool crimps any covered cable size without changing dies, so one die set carries you through the whole grip range on a pull.
4) What is the difference between the Short, Medium and Extra Long Gator Grips in the 250-350 size?
All three cover the same 250-350 KCMIL conductor range; the difference is harness length. Five different harness lengths exist across the Gator Grips system specifically to prevent grips from overlapping each other during a multi-conductor pull. Order short (GG250-350S), medium (GG250-350M) or extra long (GG250-350XL) and stagger the lengths so the grips sit clear of one another in the conduit.
5) Why would I pick different harness lengths instead of buying all the same grip?
On a multi-conductor pull, identical harness lengths put every grip body at the same point in the raceway, which bunches the bundle at the sweep. Mixing short, medium and extra long staggers the grips so they do not overlap, which is the stated purpose of the five harness lengths in the Gator Grips line. Buying one of each length for a three- or four-wire feeder pull is the normal approach.
6) Is a Gator Grip aluminum body OK to crimp onto copper conductors?
Yes. The grip body is aluminum, and the stated wire-type coverage includes copper as well as aluminum conductors, compressed and compact, from 1 AWG to 1000 MCM. The aluminum build also keeps the grip light, which matters when you are handling several at the head of a pull.
7) Are Gator Grips reusable, or is this a one-pull crimp-on grip?
These are crimp-on grips: the grip is crimped to the conductor with an EK12IDL or HK12ID, so it is committed to that cable end for the pull. Set-up is quoted at 2 minutes per grip, which is what makes them practical as a per-pull consumable item on large-conductor feeder work.
