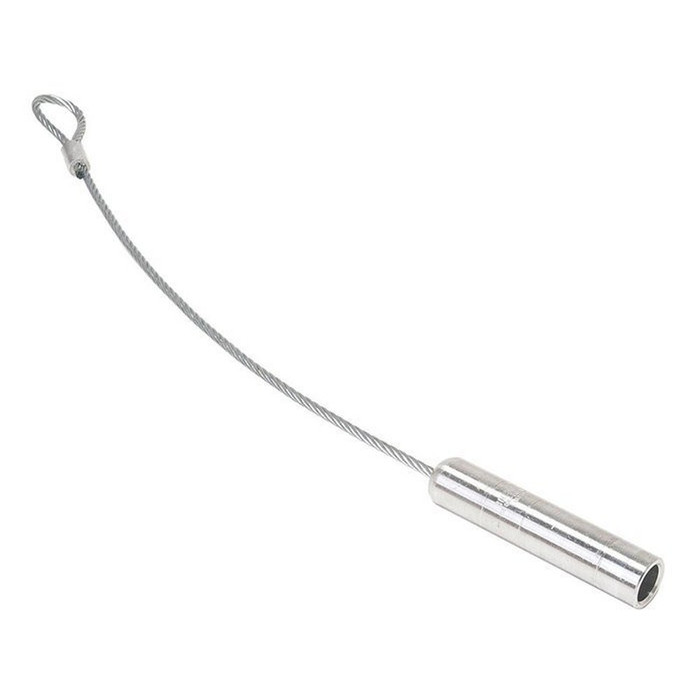

Greenlee GG400-500M Medium Gator Grips™ Cable Pulling Grip, Aluminum

Greenlee GG400-500M Medium Gator Grips™ Cable Pulling Grip, Aluminum

(No reviews yet) Write a Review

Model: GG400-500M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Greenlee GG400-500M Medium Gator Grips™ Cable Pulling Grip, Aluminum

The Greenlee GG400-500M Medium Gator Grips™ is a 27-1/2-Inch crimp-on cable pulling grip engineered for fast, secure attachment to conductors ranging from 1 AWG through 1000 MCM. Built from durable Aluminum, this pulling grip is designed to handle Copper, Aluminum, Compressed, and Compact (CU and AL) wire types, making it a versatile choice for electrical cable pulls in commercial and industrial installations. As part of the Gator Grips™ line, the GG400-500M is engineered to speed up setup time and reduce the guesswork typically associated with matching grips to conductor sizes.

Key Features

  • Size: Measures 27-1/2-Inch overall, sized for medium-duty cable pulling applications.
  • Durable Construction: Made from Aluminum for reliable strength during demanding cable pulls.
  • Wire Compatibility: Covers 1 AWG through 1000 MCM Copper, Aluminum, Compressed, and Compact (CU and AL) conductors.
  • Multiple Harness Lengths: Offered in 5 different harness lengths to help prevent overlap during multi-cable pulls.
  • Universal Crimp Compatibility: Works with the Greenlee EK12IDL or HK12ID crimping tools, allowing installers to crimp any size grip without changing dies.
  • Fast Setup: Designed for a 2-minute set-up, helping crews move through cable pulling jobs more efficiently.
  • Broad Size Coverage: Part of a 6-grip system that covers cable sizes from 1 AWG through 1000 MCM without needing separate hardware for each size.

Technical Specifications

  • Standard: 400-500 Medium Gator Grips™
  • Wire Type: 1 AWG - 1000 MCM Copper, Aluminum, Compressed and Compact (CU and AL)
  • Type: Pulling Grips
  • Material: Aluminum
  • Sub Brand Name: Gator Grips™

Typical Applications

  • Electrical Cable Pulling
  • Conduit and Raceway Cable Installations
  • Commercial and Industrial Electrical Projects
  • Copper and Aluminum Conductor Installations

Why Greenlee?

Greenlee's Gator Grips™ are built from durable Aluminum and designed to work seamlessly with the Greenlee EK12IDL or HK12ID crimping tools, eliminating the need to swap dies between cable sizes. With 5 harness lengths available and a 6-grip system covering 1 AWG through 1000 MCM, the GG400-500M helps electrical crews reduce setup time and keep cable pulls organized on the job site.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
GREE-20260923
Product Type:
Pulling Grip
Series:
Gator Grips
Department:
Electrical
Product Subgroup:
Cable Pullers
Product Material:
Aluminum
Product Size:
27-1/2"
Product Group:
Electrical Installation Tools

Greenlee GG400-500M – Frequently Asked Questions

1) What cable sizes will the Greenlee GG400-500M Gator Grips pulling grip handle?
The GG400-500M medium Gator Grips grip covers conductors from 1 AWG through 1000 MCM, in copper, aluminum, compressed and compact (CU and AL) constructions. It is one grip in a six-grip system that spans that same 1 AWG to 1000 MCM range, so the medium handles the middle of the band rather than the whole thing on its own.
2) Do I need a special crimping tool or dies for the Greenlee Gator Grips pulling grip?
No die changes. The Gator Grips crimp-on grips work with the Greenlee EK12IDL or HK12ID crimping tool, and the same die crimps any size grip in the line. That is the main reason crews run them on mixed-size pulls, since setup runs about two minutes per grip.
3) How long is the Greenlee GG400-500M pulling grip?
Overall length is 27-1/2 inches. That matters when you are staging a multi-cable pull in conduit, because the grip plus the harness adds to the lead length you have to feed through the first bend.
4) How do you keep multiple Gator Grips from bunching up on a three or four conductor pull?
Use different harness lengths. The Gator Grips line is offered in five harness lengths specifically so the grips stagger instead of overlapping when you pull several conductors at once. Stagger them and the pulling eye stays compact through bends.
5) Is the Greenlee GG400-500M a reusable basket-weave grip or a crimp-on?
It is a crimp-on grip, not a woven basket sock. The aluminum body is crimped directly onto the conductor with an EK12IDL or HK12ID tool, so it is applied once per pull rather than slipped on and off like a Kellems-style mesh grip. If you need something you can remove and reuse without a crimper, a basket-weave pulling sock is the better choice.
6) Will the GG400-500M work on compact aluminum conductor, or only concentric copper?
Both. The grip is rated for copper and aluminum conductors including compressed and compact strandings (CU and AL), which covers the compact aluminum feeder most commonly pulled on commercial services.
7) What is the exact Greenlee part number for the medium Gator Grips pulling grip?
GG400-500M. It is the medium size in the Gator Grips series, described by Greenlee as the 400-500 Medium Gator Grips.
