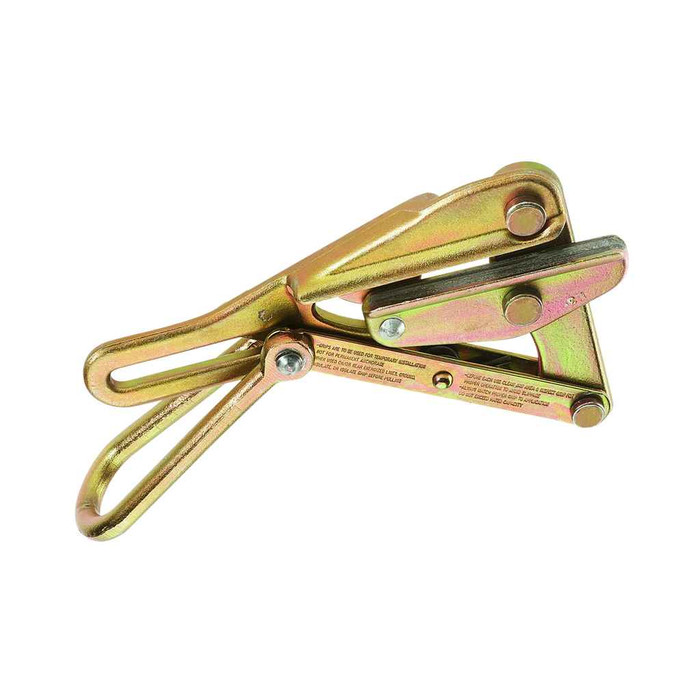

Grip for High Strength Cables 0.62-Inch
1628-16 - spec sheet
Warnings
- Grips are to be used for temporary installation, not for permanent anchorage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Always match proper size and type of grip to application.
Features
- Made in USA
- Designed for 0.31 to 0.62-Inches (7.9 to 15.7 mm) diameter cable sizes with max safe load of 15,000 (6803 kg)
- Double ''V'' grooves give four-point contact, reducing slipping and providing proper alignment of wire and cable
- For larger conductors, see our grips with round inside-jaw contour
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
1628-16 - spec sheet
Manufacturer Resources
Product Specs
- Cable Diameter:
- 0.31" to 0.62" (7.87 to 15.75 mm)
- Cable Type:
- Aircraft, EHS, Messenger, Guy Strand
- Depth:
- 12.8250 in
- Height:
- 3.1500 in
- Hot Latch:
- No
- Jaw Length:
- 7.25" (18.4 cm)
- Jaw Type:
- Double V
- Locking Handle:
- Yes
- Maximum Safe Load:
- 15,000 lb (6803 kg)
- Spring:
- No
- Swing Latch:
- No
- Type:
- Chicago Grip
- Weight:
- 13.7250 lbs
- Width:
- 6.6380 in
