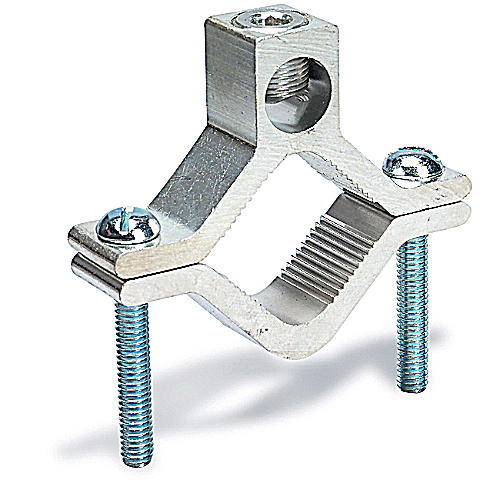

Thomas & Betts Ground Clamp Aluminum Water Pipe 1-1/2 to 2 Inch Wire Range 6-250

Thomas & Betts Ground Clamp Aluminum Water Pipe 1-1/2 to 2 Inch Wire Range 6-250

(No reviews yet) Write a Review

Model: AJ-2
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$106.63
$27.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Ground Clamp Aluminum Water Pipe 1-1/2 to 2 Inch Wire Range 6-250

Professional Electrical Grounding Device

The Thomas & Betts Ground Clamp delivers reliable grounding performance for electrical installations requiring secure water pipe connections. This aluminum grounding device provides dependable performance designed for electrical contractors, industrial facilities, and commercial installations, offering the trusted performance and quality that professionals expect from America's established electrical infrastructure manufacturer.

Professional Features & Benefits

Corrosion Resistance

  • Tin Plated Construction - Provides superior corrosion resistance for long-term reliability in electrical grounding applications
  • Aluminum Body Material - Lightweight yet durable construction ensures reliable grounding connection performance
  • UL Listed Certification - Meets rigorous safety standards for professional electrical installations and code compliance
  • Water Pipe Style Design - Engineered specifically for secure attachment to water pipe grounding systems

Installation Versatility

  • Wide Wire Range Compatibility - Accommodates wire sizes from 6 to 250 for flexible installation options
  • Water Pipe Size Range - Fits 1-1/2 to 2 inch water pipes for versatile grounding applications
  • Professional Hardware - Includes aluminum wire screw and steel clamp screw for secure connections

Technical Specifications

Material: Aluminum construction with tin plated finish, Water Pipe Size: 1-1/2 to 2 inches, Wire Range: 6-250, Style: Water pipe grounding clamp, Product Group: Grounding devices, Department: Electrical, UL Listed certification, Aluminum wire screw: 11/16-20 socket, Steel clamp screw: 5/16-18, Dimensions: A=3-7/8 inches, B=3-3/4 inches, C=7/8 inches

Installation & Usage

  1. Verify water pipe diameter falls within 1-1/2 to 2 inch range for proper clamp fit
  2. Clean pipe surface area where clamp will be installed to ensure optimal electrical contact
  3. Position ground clamp around water pipe and align for secure attachment
  4. Insert grounding conductor (wire size 6-250) into clamp terminal connection
  5. Tighten aluminum wire screw to manufacturer specifications for secure wire connection
  6. Secure steel clamp screw to achieve proper clamping force on water pipe
  7. Verify all connections are tight and properly seated for reliable grounding performance

Professional Applications

Ideal for:

  • Electrical Grounding Systems - Water pipe grounding connections in residential and commercial electrical installations
  • Industrial Facilities - Equipment grounding and electrical safety systems requiring water pipe connections
  • Commercial Construction - Building electrical systems requiring code-compliant grounding to water service
  • Electrical Contractor Applications - Professional installations requiring reliable water pipe grounding connections
  • Facility Maintenance - Grounding system repairs and upgrades in existing electrical infrastructure
  • Electrical Code Compliance - Meeting NEC requirements for grounding electrode connections to water pipes
  • Service Panel Grounding - Main electrical panel grounding connections to building water service
  • Electrical Safety Systems - Critical grounding applications requiring secure water pipe attachment

Aluminum Construction Advantage

Thomas & Betts aluminum construction with tin plating provides the ideal combination of lightweight durability and corrosion resistance for electrical grounding applications. The aluminum body ensures reliable electrical conductivity while the tin plated finish protects against environmental corrosion, making this ground clamp suitable for both indoor and outdoor electrical installations where long-term reliability is essential.

Why Choose Thomas & Betts Quality?

Thomas & Betts brings decades of established experience in electrical infrastructure solutions, with a commitment to professional quality standards that electrical contractors and facility managers trust. This UL listed ground clamp represents the reliable performance and engineering excellence that has made Thomas & Betts a preferred choice for electrical grounding devices in commercial, industrial, and residential applications nationwide.

Manufacturer Resources

Product Specs

A Inches:
3 7/8
Aluminum Wire Screw:
11/16 - 20 Socket
B Inches:
3 3/4
C Inches:
8-Jul
Inner Package:
10
Outer Package:
50
Package Height:
7.7
Package Length:
16.4
Package Width:
13.8
Product Group:
Grounding & Bonding
Rohs Compliance:
Yes
Steel Clamp Screw:
5/16/18
T B Sold In Uom:
Each
T B Weight Per Uom:
34 lbs. per 100
Water Pipe Size Inches:
1 1/2 - 2
Wire Size:
6 - 250
Department:
Electrical
Product Subgroup:
Grounding & Bonding
Product Style:
Waterpipe
Product Material:
Aluminum
Product Type:
Ground Clamp

Thomas & Betts AJ-2 – Frequently Asked Questions

1) Will the Thomas & Betts AJ-2 ground clamp fit a 2 inch water pipe?
Yes. The AJ-2 clamps pipe from 1-1/2 to 2 inches, so a 2 inch water service is at the top of its range. Anything smaller than 1-1/2 inch or larger than 2 inch needs a different size in the family.
2) What size grounding electrode conductor can I land in this water pipe ground clamp?
The wire range is 6 through 250, so it takes anything from a #6 grounding electrode conductor up to 250 kcmil. That covers typical residential service grounds through large commercial services on one clamp.
3) Is the AJ-2 ground clamp UL listed for grounding electrode connections?
Yes, the Thomas & Betts AJ-2 is UL Listed, which is what an inspector looks for on a grounding electrode conductor connection to a metal water service.
4) Can I use an aluminum ground clamp on a copper water pipe?
The AJ-2 body is aluminum with a tin plated finish. The tin plating is what makes it acceptable against copper pipe, since it keeps bare aluminum off the copper and resists corrosion at the joint. Clean the pipe down to bright metal before you set the clamp.
5) What size wrench or socket do I need to install this ground clamp?
Two fasteners. The aluminum wire screw takes an 11/16-20 socket, and the clamp screw is a 5/16-18 steel screw. Bring a socket for the conductor screw and a driver for the clamp screw and you can set it in one pass.
6) How much room do I need around the pipe to install this clamp?
The clamp measures A = 3-7/8 inches and B = 3-3/4 inches. Allow that much clearance around the water service before you commit to a spot, especially where the pipe runs tight to a wall or close to the meter.
7) Can this ground clamp be used outdoors or in a damp crawlspace?
The tin plating over the aluminum body is there for corrosion resistance, and the description calls it suitable for indoor and outdoor electrical installations. Water services in crawlspaces and at exterior meters are the normal use for a waterpipe style clamp like this.
8) Is the AJ-2 ground clamp sold individually or only in a box?
It is sold each. For stocking a truck or a shop, the inner pack is 10 and the outer carton is 50.
9) Is this Thomas & Betts ground clamp RoHS compliant for a spec job?
Yes, the AJ-2 is RoHS compliant, which covers most institutional and government submittal requirements on material content.
