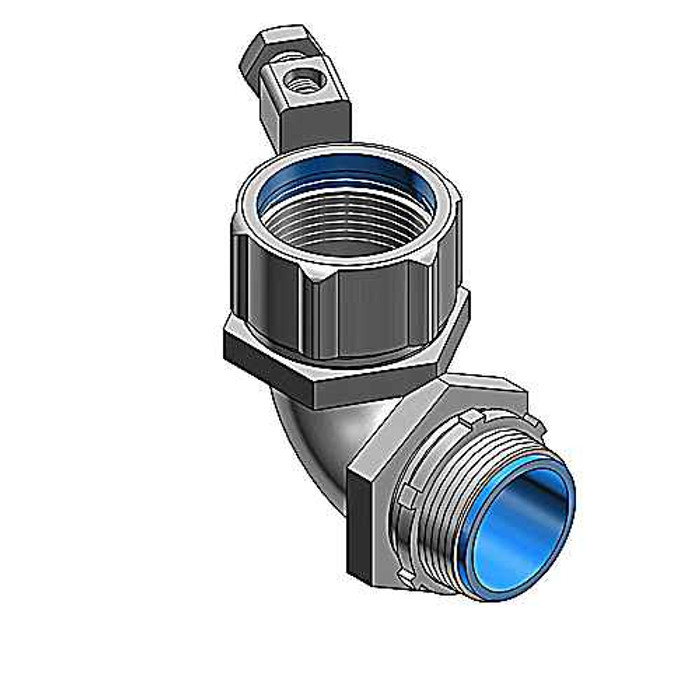

Thomas & Betts 90� Grounding Connector 3/4 Inch NPT Malleable Iron with Electro Zinc Plated Finish

Thomas & Betts 90� Grounding Connector 3/4 Inch NPT Malleable Iron with Electro Zinc Plated Finish

Professional 90-Degree Grounding Connection Solution

Thomas & Betts delivers reliable grounding performance with this professional 90� grounding connector featuring 3/4 inch NPT threading and durable malleable iron construction. The electro zinc plated/chromate coating finish provides enhanced corrosion resistance, while the external thread design enables quick installation with low torque effort for efficient electrical system grounding applications.

Professional Features & Benefits

• 3/4 Inch NPT Threading: Standard nominal size ensures compatibility with common conduit and grounding systems for versatile installation options.
• 90� Elbow Design: Right-angle configuration provides optimal routing flexibility in tight spaces and corner applications.
• Malleable Iron Construction: Durable material delivers long-lasting mechanical strength and reliable electrical continuity.
• Electro Zinc Plated/Chromate Coating: Professional finish provides enhanced corrosion resistance for extended service life in various environments.
• Low Torque Installation: Quick installation capability reduces labor time and effort during system assembly.
• UL E3060 & CSA Listed: Approved certifications ensure compliance with safety standards and code requirements.
• External Thread Design: Threaded connection type provides secure mechanical and electrical connection to housing systems.

Technical Specifications

• Approved In Combination With Protective Conduit Csa: Y
• Approved In Combination With Protective Conduit Ul: Y
• Connection Type Screw Connection To Housing: Thread
• Construction Type: External thread
• Department: Electrical
• Etim: EC001180 Screw connection for protective metallic hose
• Inner Dimensions Inches: 6x5x4
• Inner Quantity: 10
• Material: Malleable Iron
• Material Housing: Steel
• Nominal Size In Inch: 3/4 inch
• One Piece: N
• Outer Dimensions Inches: 22.06x5.31x6.31
• Outer Quantity: 50
• Product Details: Grounding Connectors-90 degree
• Product Finish: Electro Zinc Plated/Chromate Coating
• Product Group: Connectors
• Product Model: 90�-elbow
• Product Subgroup: Electrical Connectors
• Product Type: Grounding Connectors-90 degree
• Revolving Thread: N
• Standard: UL E3060, CSA
• Thread Connection Size: Other
• Thread Type: NPT
• Unspsc: 39121420 Liquid tight connectors
• Weight Uom: 42.31 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Grounding Systems
• Commercial Building Electrical Infrastructure
• Industrial Equipment Grounding
• Conduit System Connections
• Protective Metallic Hose Applications
• Electrical Contractor Installations
• Maintenance and Retrofit Projects

Why Choose Thomas & Betts Quality?

Thomas & Betts grounding connectors deliver proven reliability with UL E3060 and CSA certifications ensuring code compliance and safety standards. The malleable iron construction with electro zinc plated/chromate coating finish provides long-term durability and corrosion resistance for professional electrical grounding applications.
