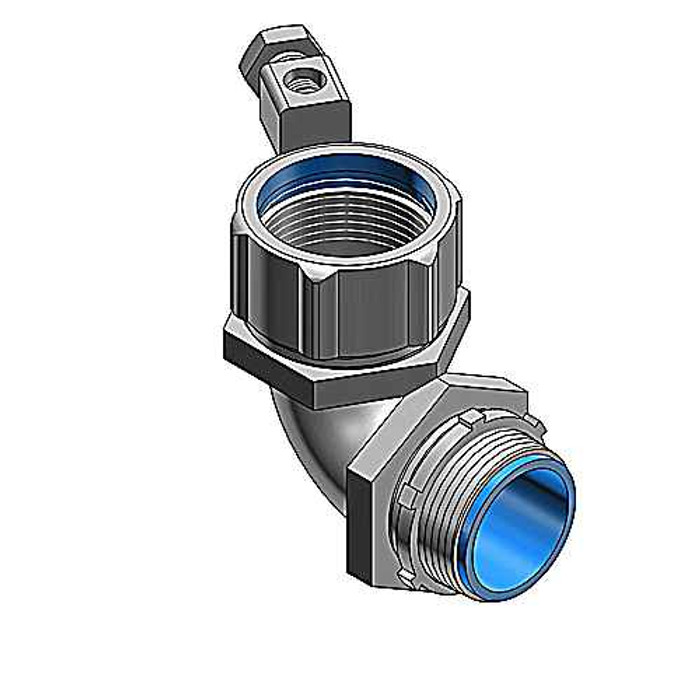

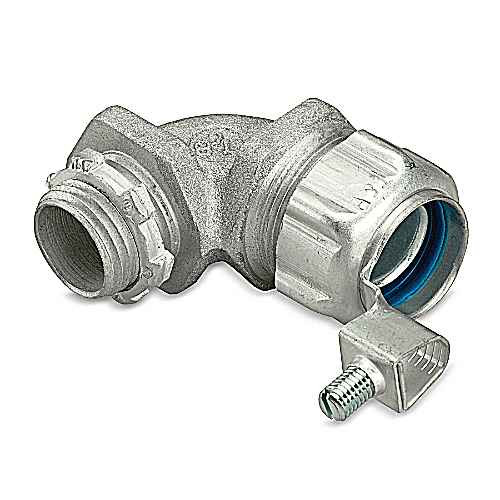

Thomas & Betts 90� Grounding Connector 2 inch NPT Malleable Iron with Electro Zinc Plated Finish

Thomas & Betts 90� Grounding Connector 2 inch NPT Malleable Iron with Electro Zinc Plated Finish

Professional 90-Degree Grounding Connection Solution

Thomas & Betts delivers reliable grounding performance with this 2 inch NPT 90� grounding connector featuring malleable iron construction and electro zinc plated/chromate coating finish. Designed for quick installation with low torque effort, this external thread connector provides secure grounding connections in protective conduit applications with UL and CSA approvals.

Professional Features & Benefits

• 2 inch NPT Threading: Standard NPT thread connection ensures compatibility with common conduit systems and reliable mechanical connection.
• 90� Elbow Design: Right-angle configuration allows efficient routing in tight spaces while maintaining proper grounding continuity.
• Malleable Iron Construction: Durable material provides long-lasting performance and resistance to mechanical stress in demanding applications.
• Electro Zinc Plated/Chromate Coating: Corrosion-resistant finish extends service life and maintains electrical conductivity over time.
• Quick Installation Design: Low torque effort requirement reduces installation time and minimizes connection stress.
• UL E3060 and CSA Listed: Dual safety certifications ensure compliance with North American electrical standards and codes.
• External Thread Construction: Provides secure mechanical connection with protective conduit systems for reliable grounding performance.

Technical Specifications

• Approved In Combination With Protective Conduit Csa: Y
• Approved In Combination With Protective Conduit Ul: Y
• Connection Type Screw Connection To Housing: Thread
• Construction Type: External thread
• Department: Electrical
• Etim: EC001180 Screw connection for protective metallic hose
• Inner Dimensions Inches: 6x4x4
• Inner Quantity: 1
• Material: Malleable Iron
• Material Housing: Other
• Nominal Size In Inch: 2 inch
• One Piece: N
• Outer Dimensions Inches: 5.3x26.6x6.8
• Outer Quantity: 5
• Product Details: Grounding Connectors-90 degree
• Product Finish: Electro Zinc Plated/Chromate Coating
• Product Group: Connectors
• Product Model: 90�-elbow
• Product Subgroup: Electrical Connectors
• Product Type: Grounding Connectors-90 degree
• Revolving Thread: N
• Standard: UL E3060, CSA
• Thread Connection Size: Other
• Thread Type: NPT
• Unspsc: 39121420 Liquid tight connectors
• Weight Uom: 322 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Grounding Systems
• Protective Conduit Applications
• Electrical Panel Connections
• Equipment Grounding Requirements
• Code-Compliant Electrical Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts grounding connectors deliver proven reliability with UL E3060 and CSA certifications, ensuring compliance with electrical safety standards. The malleable iron construction with electro zinc plated/chromate coating provides long-term durability and corrosion resistance for professional electrical applications.
