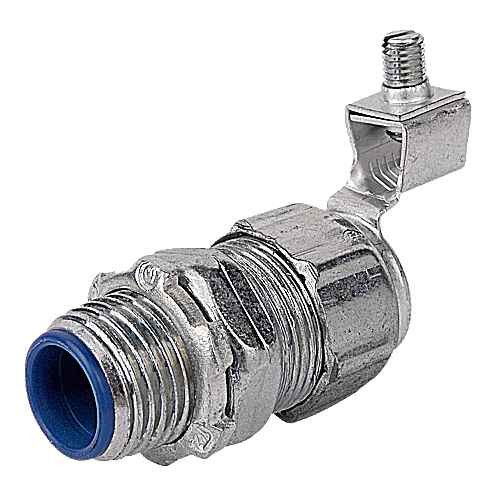

Thomas & Betts 1 Inch NPT Steel Grounding Connector - Straight Thread with Electro Zinc Plated Finish

Thomas & Betts 1 Inch NPT Steel Grounding Connector - Straight Thread with Electro Zinc Plated Finish

Professional Electrical Grounding Solution for Protective Conduit Systems

Thomas & Betts delivers reliable grounding performance with this 1 inch NPT steel grounding connector featuring straight thread construction and electro zinc plated/chromate coating finish. Designed for quick installation with low torque effort, this external thread connector provides secure grounding connections in protective conduit applications with UL and CSA approved compatibility.

Professional Features & Benefits

• 1 Inch NPT Threading: Standard nominal size ensures compatibility with common conduit systems and provides secure mechanical connection.
• Steel Construction with Electro Zinc Plated Finish: Durable steel housing with protective coating delivers corrosion resistance and long-term reliability in electrical installations.
• External Thread Design: Straight thread configuration enables quick installation with low torque effort, reducing installation time and labor costs.
• UL E3060 and CSA Listings: Approved for use in combination with protective conduit systems, ensuring code compliance and safety standards.
• Thread Connection to Housing: Secure screw connection design provides reliable electrical continuity and mechanical stability.
• Professional Grade Materials: Steel housing construction delivers durability and performance in demanding electrical environments.

Technical Specifications

• Approved In Combination With Protective Conduit Csa: Y
• Approved In Combination With Protective Conduit Ul: Y
• Connection Type Screw Connection To Housing: Thread
• Construction Type: External thread
• Department: Electrical
• Etim: EC001180 Screw connection for protective metallic hose
• Inner Dimensions Inches: 6x5x4
• Inner Quantity: 10
• Material: Steel
• Material Housing: Steel
• Nominal Size In Inch: 1 inch
• One Piece: N
• Outer Dimensions Inches: 5x26.6x6.7
• Outer Quantity: 50
• Product Details: Grounding Connectors-Straight
• Product Finish: Electro Zinc Plated/Chromate Coating
• Product Group: Connectors
• Product Model: Straight
• Product Subgroup: Electrical Connectors
• Product Type: Grounding Connectors-Straight
• Revolving Thread: N
• Standard: UL E3060, CSA
• Thread Connection Size: Other
• Thread Type: NPT
• Unspsc: 39121420 Liquid tight connectors
• Weight Uom: 39 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Conduit Systems
• Protective Metallic Hose Connections
• Grounding and Bonding Applications
• Electrical Panel and Equipment Grounding
• Code-Compliant Electrical Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts grounding connectors deliver proven reliability with UL E3060 and CSA listings, ensuring code compliance and professional performance. The electro zinc plated/chromate coating finish and steel construction provide long-term durability in demanding electrical environments, backed by trusted Thomas & Betts engineering and quality standards.
