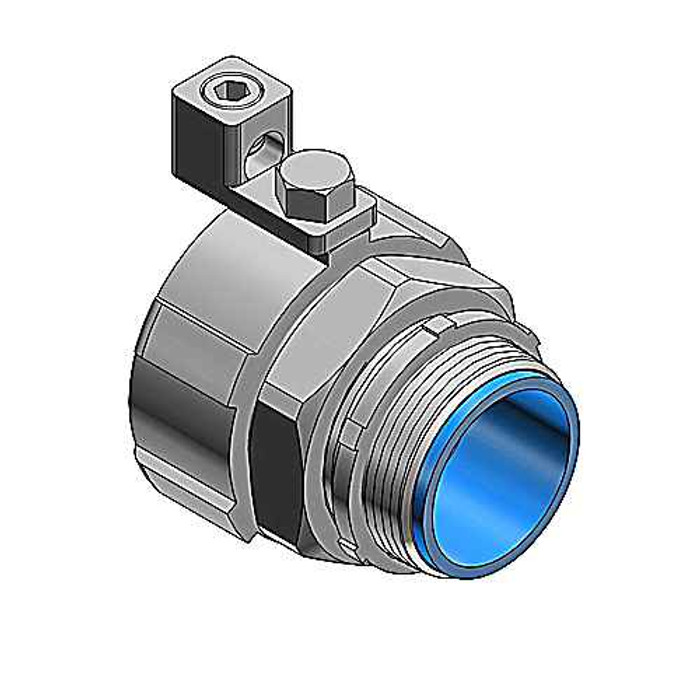

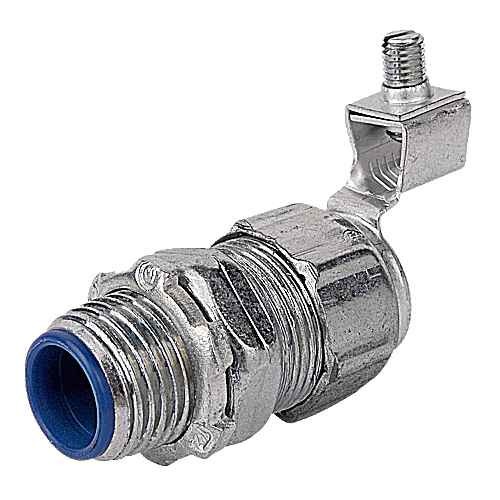

Thomas & Betts 1/2 Inch Steel Grounding Connector - Straight Thread with Electro Zinc Plated Finish

Thomas & Betts 1/2 Inch Steel Grounding Connector - Straight Thread with Electro Zinc Plated Finish

Professional Electrical Grounding Solution for Protective Conduit Systems

The Thomas & Betts straight grounding connector delivers reliable electrical grounding performance with steel construction and electro zinc plated/chromate coating finish. Designed for 1/2 inch nominal size applications with NPT thread type, this connector features external thread construction for secure installation with low torque effort. UL E3060 and CSA approved for use with protective conduit systems, ensuring professional-grade reliability for electrical installations.

Professional Features & Benefits

• 1/2 Inch Nominal Size: Provides precise fit for standard conduit applications with consistent performance.
• Steel Construction with Electro Zinc Plated Finish: Delivers superior corrosion resistance and long-lasting durability in demanding environments.
• NPT Thread Type with External Thread Design: Ensures secure, leak-resistant connections with standard threading compatibility.
• Low Torque Installation: Reduces installation time and effort while maintaining secure connections.
• UL E3060 and CSA Approved: Meets rigorous safety standards for protective conduit system applications.
• Thread Connection to Housing: Provides reliable mechanical and electrical connection for grounding continuity.

Technical Specifications

• Approved In Combination With Protective Conduit Csa: Y
• Approved In Combination With Protective Conduit Ul: Y
• Connection Type Screw Connection To Housing: Thread
• Construction Type: External thread
• Department: Electrical
• Etim: EC001180 Screw connection for protective metallic hose
• Inner Dimensions Inches: 9.5x6.5x4.5
• Inner Quantity: 25
• Material: Steel
• Material Housing: Steel
• Nominal Size In Inch: 1/2 inch
• One Piece: N
• Outer Dimensions Inches: 12.5x9.75x8
• Outer Quantity: 100
• Product Details: Grounding Connectors-Straight
• Product Finish: Electro Zinc Plated/Chromate Coating
• Product Group: Connectors
• Product Model: Straight
• Product Subgroup: Electrical Connectors
• Product Type: Grounding Connectors-Straight
• Revolving Thread: N
• Standard: UL E3060, CSA
• Thread Connection Size: Other
• Thread Type: NPT
• Unspsc: 39121420 Liquid tight connectors
• Weight Uom: 18.5 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Conduit Systems
• Protective Metallic Hose Connections
• Grounding and Bonding Applications
• Electrical Panel and Equipment Grounding
• Code-Compliant Electrical Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts grounding connectors deliver proven reliability with UL E3060 and CSA approvals, ensuring compliance with electrical safety standards. The steel construction with electro zinc plated/chromate coating finish provides long-term durability and corrosion resistance for professional electrical installations.
