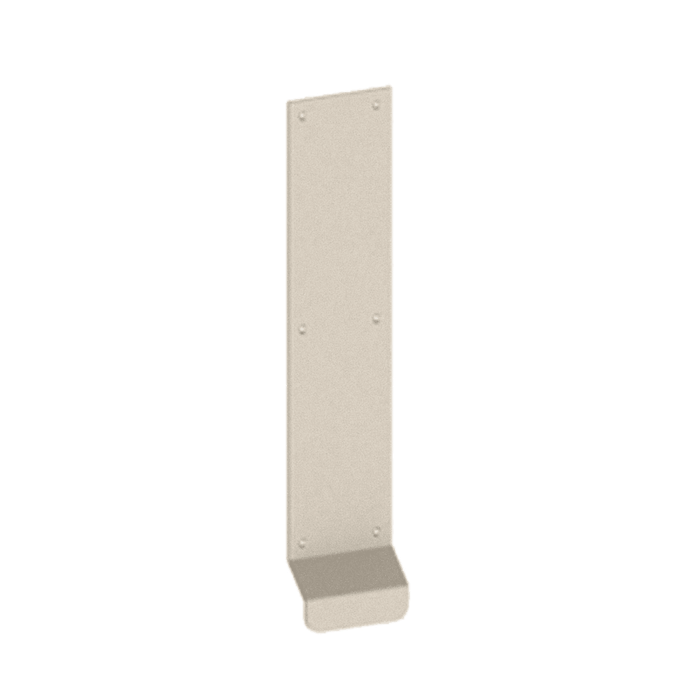

Hager 120L Pull Plate with Lip (Not Beveled), 3-1/2" x 16", Gauge 0.125, Lip Projection 1-1/8"

Hager 120L Pull Plate with Lip (Not Beveled), 3-1/2" x 16", Gauge 0.125, Lip Projection 1-1/8"

(No reviews yet) Write a Review

Model: 120L US28
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$67.76
$66.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 120L Pull Plate with Lip (Not Beveled), 3-1/2" x 16", Gauge 0.125, Lip Projection 1-1/8"

Hager 120L Pull Plate with Lip

The Hager 120L Pull Plate with Lip is a heavy-duty commercial door pull designed to provide a secure and comfortable gripping surface for high-traffic doors. Manufactured from durable aluminum, brass, or stainless steel, this pull plate features a 1-1/8" projecting lip for enhanced grip and is ideal for commercial, institutional, and industrial applications. It meets ANSI A156.6 J303 standards for pull plates, delivering reliable performance and long-lasting durability.

Features & Benefits

  • Commercial-Grade Pull Plate designed for frequent use in high-traffic environments.
  • Integrated 1-1/8" Lip Projection provides a secure and ergonomic hand grip.
  • Heavy-Duty 0.125" (3 mm) Construction offers excellent strength and durability.
  • ANSI A156.6 J303 Compliant for commercial pull plate applications.
  • Available in Multiple Materials including aluminum, brass, and stainless steel.
  • Wide Selection of Architectural Finishes to complement commercial door hardware.
  • Supplied with Six #6 x 5/8" Oval Head Tapping Screws for secure installation.
  • Optional Customizations include cylinder cutouts (CFC) and engraving for specialized applications.

Specifications

  • Manufacturer: Hager Companies
  • Model: 120L
  • Product Type: Pull Plate with Lip
  • Plate Size: 3-1/2" × 16" (89 × 406 mm)
  • Lip Projection: 1-1/8" (29 mm)
  • Material: Aluminum, Brass, or Stainless Steel
  • Thickness: 0.125" (3 mm)
  • Fasteners: Six #6 × 5/8" Oval Head Tapping Screws
  • Available Finishes: US3, US4, DBZ, US19, US26, US26D, US28, US32, US32D
  • Certification: Meets ANSI A156.6 J303 Pull Plate Standard

Applications

  • Commercial office buildings
  • Schools and universities
  • Healthcare facilities
  • Government buildings
  • Retail storefronts
  • Hotels and hospitality entrances
  • Industrial and institutional doors



Manufacturer Resources

Product Specs

Product Group:
Door Pulls, Push and Pull Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Pull Plates
Subcategory:
Trim & Auxiliary
Features:
Commercial-Grade Pull Plate
Commercial/Residential:
Commercial
Electronic:
No
Product Model:
120L
Door Thickness Range:
0.125" (3 mm)
Fire Rating:
No
Product Category:
Door Hinges and Pivots
Product Substrate:
Aluminum, Brass, or Stainless Steel
Department:
Door Hardware

Hager 120L US28 – Frequently Asked Questions

1) What size is the Hager 120L pull plate and how far does the lip stick out?
The Hager 120L measures 3-1/2 by 16 inches (89 x 406 mm) with a 1-1/8 inch (29 mm) projecting lip. The lip is the grip surface, so you pull on the edge rather than a separate handle. Plan for that 1-1/8 inch projection on the pull side of the opening if the door swings into a tight corridor or near an adjacent wall or frame.
2) Does the Hager 120L pull plate meet ANSI A156.6?
Yes, the 120L is built to the ANSI A156.6 J303 pull plate standard. That is the architectural hardware spec writers cite for pull plates on commercial and institutional door schedules, so it will satisfy a drawing calling out a J303 plate.
3) Do mounting screws come with the Hager 120L pull plate?
Six #6 x 5/8 inch oval head tapping screws ship with the plate. That covers a standard wood or hollow metal door install. For a glass door, a solid metal stile, or a through-bolt condition, you will need fasteners suited to that substrate, since the supplied screws are tapping screws.
4) How thick is the 120L plate, and will it hold up on a high-traffic entrance?
The plate is 0.125 inch (3 mm) material, which is heavy-gauge for a pull plate. That thickness is what keeps the lip from deflecting when people yank on it all day, and it is why Hager lists the 120L for commercial office, school, healthcare, government, retail, hotel, and institutional openings.
5) Is the Hager 120L pull plate aluminum, brass, or stainless steel?
All three are offered, and the finish you pick determines the base metal. The anodized 628/US28 is aluminum, US3 and US4 are brass, and US32 and US32D are stainless steel. Stainless is the usual choice for exterior or wash-down openings; anodized aluminum is common on storefront and interior doors.
6) Can I get the Hager 120L with a cutout for a cylinder?
Yes. A cylinder cutout (CFC) is an available option on the 120L, and engraving can be specified as well. Both are order-time options rather than field modifications, so the cutout has to be called out when the plate is ordered, not drilled later.
7) Is the 120L a pull plate or a push plate, and do I need both?
The 120L is the pull side. It has a projecting lip you grip to pull the door open, so it goes on the swing-toward side of the opening. The push side of the same door typically takes a flat push plate with no lip. Handing is not a factor on the plate itself, but which face it lands on is.
8) Is the Hager 120L electrified or does it accept any electronics?
It is a purely mechanical piece of door trim. No wiring, no switch, no access control provision. If you need a request-to-exit or touch-sense function at the pull, that has to come from a separate device.
