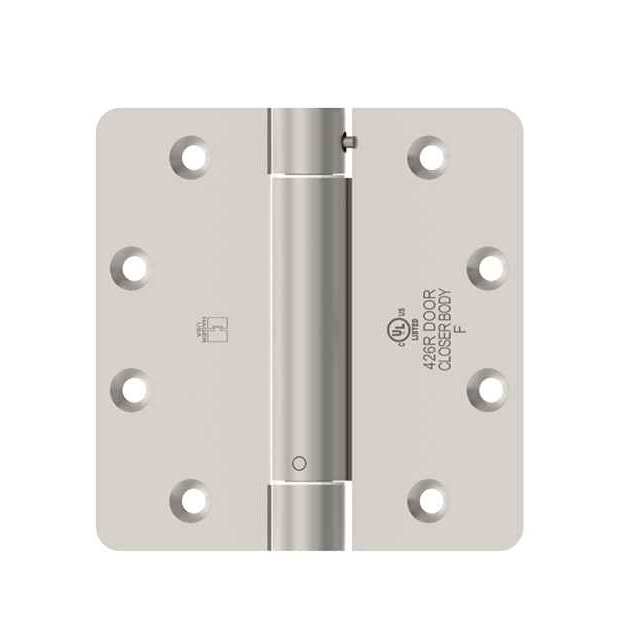

HAGER 1251 FULL MORTISE SPRING HINGE
Certifications: ANSI K81071F;
Finishes: USP, US3, US4, US10, US10A, US10B, US26D;
Fastener Size - Machine: 12-24 x 1/2";
Fastener Size - Wood: 12 x 1-1/4";
Knuckles: 3;
Notes:
- Hager does not recommend using spring hinges on doors over 7'0".;
- Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges.
- For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges.
Material: Steel with Steel Components;
Product Description: Full Mortise, 1/4" Round Corner Radius, Spring Hinge, Standard Weight.
HAGER COMMERCIAL HINGES
Today, the Hager name is synonymous with architectural hinges. In fact, they are the industry’s premiere designer and manufacturer of architectural hinges, with a product line that offers one of the widest varieties of sizes, shapes, and finishes--all of which meet or exceed ANSI standards.
- Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
- Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
- Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D;
- Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D;
- Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP;
- Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5” (152 mm), US26D.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Substrate:
- Steel
- Knuckles:
- 3
- Model:
- 1251
- Subcategory:
- Full Mortise Hinges
- Function:
- Spring Hinges
- Product Subgroup:
- Spring Hinges
- Features:
- Full Mortise, 1/4" Round Corner Radius, Spring Hinge, Standard Weight
- ANSI/BHMA:
- ANSI K81071F
- Duty Level:
- Medium Duty
- Product Group:
- Door Hinges and Pivots
- Product Type:
- Spring Hinges
- Commercial/Residential:
- Commercial
