Hager 1267 4-1/2" x 4-1/2" Full Mortise Standard Weight Spring Swing Clear Hinge, 3 Knuckles

Hager 1267 4-1/2" x 4-1/2" Full Mortise Spring Swing Clear Hinge with Standard Weight Construction

(No reviews yet) Write a Review

Model: 126741226
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$289.77
$158.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 1267 4-1/2" x 4-1/2" Full Mortise Spring Swing Clear Hinge with Standard Weight Construction

Professional Full Mortise Spring Hinge Solution

The Hager 1267 Full Mortise Spring Swing Clear Hinge delivers professional-grade performance for commercial door applications requiring self-closing functionality. This 4-1/2" x 4-1/2" hinge features standard weight construction with 3 knuckles and spring bearing operation for reliable door control. Manufactured from stainless steel substrate with square corner design, this hinge meets ANSI/BHMA A156.1 standards for commercial applications.

Professional Features & Benefits

  • Standard Dimensions: 4-1/2" x 4-1/2" size accommodates standard commercial door installations with proper load distribution.
  • Spring Bearing Operation: Integrated spring mechanism provides consistent self-closing action for automatic door return and security.
  • Full Mortise Design: Both leaves mortise into door and frame for clean appearance and maximum strength in wood or hollow metal applications.
  • Stainless Steel Construction: Durable stainless steel substrate provides corrosion resistance and long-term reliability in demanding environments.
  • 3-Knuckle Configuration: Balanced knuckle design ensures smooth operation while maintaining structural integrity under regular use.
  • Square Corner Profile: Standard square corner design accommodates most commercial door frame configurations without modification.
  • ANSI Compliance: Manufactured in accordance with ANSI/BHMA A156.1 standards for commercial hinge performance and durability.
  • Swing Clear Function: Specialized swing clear design allows door to open beyond 90 degrees for maximum clear opening width.

Technical Specifications

  • ANSI/BHMA: ANSI A5121
  • Bearing Type: Spring Bearing
  • Commercial/Residential: Commercial
  • Corner Type: Square Corner
  • Knuckles: 3
  • Subcategory: Swing Clear Commercial Hinges

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager hinges deliver professional-grade reliability with stainless steel construction and ANSI/BHMA A156.1 compliance for demanding commercial applications. The spring bearing mechanism provides consistent self-closing performance while the full mortise design ensures maximum strength and clean appearance. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

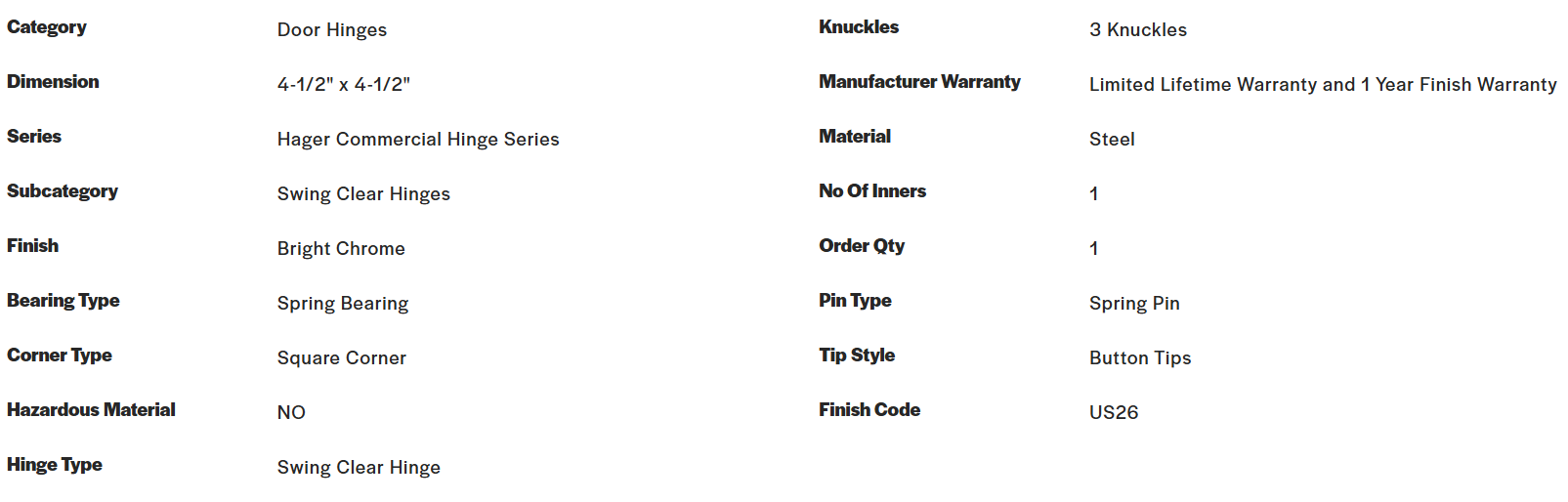

Product Specs

Subcategory:
Swing Clear Commercial Hinges
Knuckles:
3
Product Group:
Door Hinges and Pivots
Product Subgroup:
Full Mortise Hinges
Product Type:
Full Mortise Hinge
ANSI/BHMA:
ANSI A5121
Bearing Type:
Spring Hinge
Commercial/Residential:
Commercial
Corner Type:
Square Corner
Product Model:
1267
Product Size:
4.5" x 4.5"
Product Substrate:
Stainless Steel
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Hager 126741226 – Frequently Asked Questions

1) Is the Hager 1267 a self-closing hinge, or do I still need a door closer?
It is a spring hinge, so it closes the door on its own without a surface closer. That makes it a common choice on stairwell doors, closets, utility rooms, and apartment interior doors where you want positive closing without hanging a closer on the face of the door. What a spring hinge does not give you is controlled sweep and latch speed, backcheck, or delayed action. If the opening needs regulated closing speed, or the door is heavy or in a high traffic corridor, run a closer instead of relying on the springs.
2) Will the Hager 1267 fit a standard square edge commercial door and hollow metal frame?
Yes on the frame prep side. It is a square corner hinge in the standard 4-1/2 by 4-1/2 commercial size, which matches the square corner mortise cut into hollow metal frames and the frames of most factory prepped commercial doors. Full mortise means both leaves are let into the door edge and the frame rabbet. Note the swing clear geometry, though: the leaf shape differs from a plain butt hinge, so the door edge prep is not always a straight swap with what is already in the door. Check the existing door mortise before you plan a drop-in.
3) I need a swing clear hinge but not a self-closer. What should I order instead?
Go with a concealed bearing swing clear hinge rather than a spring one. The BEST CB248 is a steel full mortise concealed bearing swing clear hinge for square edge doors, medium duty, and it gives the same clear width gain with free swinging operation. Pick the Hager 1267 only when you want the door to return and latch by itself.
4) Can I use the Hager 1267 on a heavy door?
No. It is standard weight construction, which suits normal commercial wood and hollow metal doors at moderate frequency. A thick lead lined, heavy timber, or high frequency stairwell door needs a heavy weight hinge, and in that case look at the McKinney TCA3386, a heavy weight 4-1/2 by 4-1/2 square corner 5 knuckle full mortise hinge, or a pivot reinforced heavy weight hinge like the BEST CB223. Overloading a spring hinge sags the door and the springs stop closing it.
5) What is the closest swing clear alternative to the Hager 1267 hinge?
The BEST CB248 is the nearest swing clear counterpart. It is a steel full mortise swing clear hinge with concealed bearings for square edge doors, rated medium duty. The Hager 1267 is a 4-1/2 inch by 4-1/2 inch full mortise swing clear hinge built on a stainless steel substrate with a square corner and 3 knuckles, and it uses spring hinge bearing for self-closing action. So both clear the door from the opening, but only the 1267 carries the spring closing mechanism; the CB248 relies on concealed bearings and would need a separate closer if the opening must self-close.
6) We have a heavy door in a high traffic opening - is the Hager 1267 the right hinge or should I step up?
The Hager 1267 is a standard weight, 3-knuckle commercial hinge in 4-1/2 inch by 4-1/2 inch. For heavier leaves the heavy weight options are the McKinney TCA3386, a square corner 5-knuckle full mortise hinge in the same 4-1/2 by 4-1/2 size rated heavy duty, the Dormakaba CB199 full mortise concealed bearing heavy weight hinge, and the BEST CB223 stainless steel concealed bearing heavy weight pivot reinforced hinge for beveled edge doors. None of those three are swing clear, so if the clear opening width is the reason the 1267 was specified, stepping up to a heavy weight means giving up the swing clear geometry.
7) Is the Hager 1267 stainless steel, and will it hold up in a wet or coastal location?
The substrate is stainless steel, which is the right pick for exterior entries, pool and locker areas, kitchens, and coastal buildings where plated steel hinges rust at the knuckle and streak the door. Among the comparable stainless options, the Don-Jo BB94545 is a stainless 4-1/2 by 4-1/2 square corner full mortise hinge, but it is a ball bearing butt hinge, not a swing clear spring hinge, so it neither self closes nor gains you clear width.
8) Is the Hager 1267 rated for commercial traffic, and what ANSI standard does it meet?
It carries an ANSI A5121 designation and is built to ANSI/BHMA A156.1, the standard that governs butt hinge performance, and it is classified as a commercial hinge rather than residential. The 3 knuckle construction is normal for spring hinges, where the spring barrel occupies the center knuckle instead of the extra bearing knuckles you see on a 5 knuckle butt hinge.
9) I have an existing hinge from another brand. Is there a Hager cross reference?
Yes. Hager maintains a commercial hinge cross reference that maps competitor hinge models to the equivalent Hager number, which is the fastest way to confirm whether the 1267 is the match for what is currently hung in your frame. Verify the size and the swing clear designation on the old hinge leaf before you cross it, since a standard butt hinge does not cross to a swing clear part.
10) What hinge should I order if the opening needs electrified through-wire rather than the Hager 1267?
The ACSI 5BB1 is the through-wire option: an Ives-style 5 knuckle ball bearing full mortise hinge, 4-1/2 inch by 4-1/2 inch, with a concealed electric through-wire in 4 wire 28 gauge, from the 1100 Series. It matches the Hager 1267 on full mortise format and the 4-1/2 by 4-1/2 size, but it carries power to an electrified lock or exit device instead of providing the 1267's spring hinge self-closing and swing clear geometry. On a door that needs both power transfer and self-closing, plan on the electrified hinge in one position and a separate closing device.
11) Can I use a ball bearing hinge like the Don-Jo BB84545 in place of the Hager 1267?
Not as a functional equal. The Don-Jo BB84545 is a brass full mortise ball bearing hinge in 4-1/2 inch by 4-1/2 inch, satin chrome, standard duty - a good match on size and finish, since the Hager 1267 is also 4-1/2 by 4-1/2 and offered in 626 satin chrome. The difference is the bearing: the 1267 uses a spring hinge that returns the door on its own, while the BB84545 is a free-swinging ball bearing hinge. Swapping in the Don-Jo leaves the opening without self-closing, and it is not swing clear, so the clear opening width narrows by the door thickness.
12) I want a removable pin hinge for a standard weight door - what compares to the Hager 1267?
The BEST 1900R is a steel full mortise concealed bearing standard weight hinge with a removable pin, rated medium duty, and the Stanley Security CB1960R is a full mortise concealed bearing standard weight hinge, also medium duty. Both sit in the same standard weight full mortise class as the Hager 1267, which is a standard weight full mortise hinge with 3 knuckles. The 1267 differs in two ways that matter on the opening: it is swing clear, so the door clears the frame for maximum clear width, and it uses a spring hinge for self-closing rather than a concealed bearing.
13) What finish does the Hager 1267 come in?
Satin chrome, BHMA finish 626. That is the most common commercial finish on lever locks and exit devices, so a 1267 blends with 626 hardware already on the building without a special order. If your other openings are 630 satin stainless, the 626 hinge will read slightly brighter and bluer next to it.
14) Where do the hinges go on the door, and is there a layout reference for the Hager 1267?
Hager publishes standard hinge location dimensions covering top, bottom, and intermediate hinge placement for commercial doors, and that sheet is the one to work from when you lay out a 1267 installation. Follow it before you rout, because swing clear leaves are unforgiving of a mortise cut to the wrong reference.
15) What are the McKinney TCA2314 and TCA2317 compared to the Hager 1267?
Both McKinney parts are square corner 5 knuckle full mortise hinges in 4-1/2 inch by 4-1/2 inch, rated standard duty - the same overall size and square corner as the Hager 1267, which is also a square corner 4-1/2 by 4-1/2 full mortise hinge. The McKinney hinges use a conventional full mortise leaf and 5 knuckles; the 1267 is a 3-knuckle swing clear hinge with spring hinge bearing, so it both self-closes and pulls the door out of the opening. If you are standardizing a building on plain full mortise hinges, the McKinney pair applies; if specific openings need clear width or self-closing, those get the 1267.
