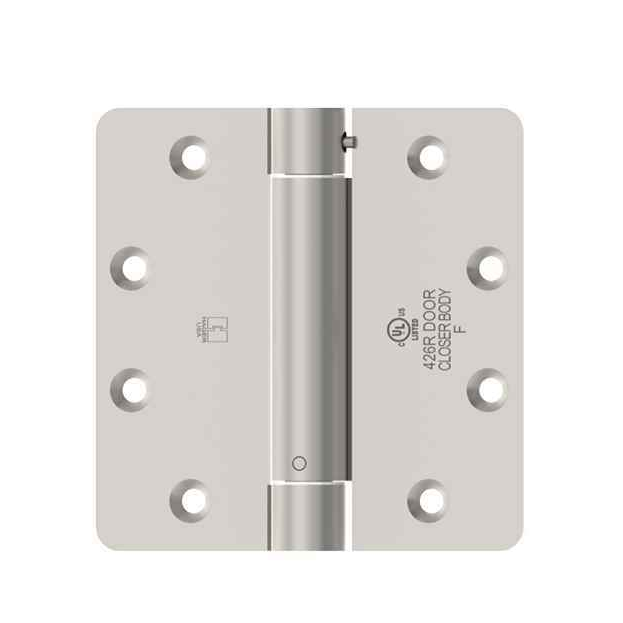

Hager 1253 Half Surface Spring Hinge - Standard Weight Steel with 4-1/2" Size

Hager 1253 Half Surface Spring Hinge - Standard Weight Steel with 4-1/2" Size

(No reviews yet) Write a Review

Model: HAG-1253 4-1/2 US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.65
$128.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 1253 Half Surface Spring Hinge - Standard Weight Steel with 4-1/2" Size

Professional Self-Closing Door Hardware Solution

The Hager 1253 Half Surface Spring Hinge delivers reliable automatic door closing performance for commercial applications. This standard weight steel hinge features 4-1/2" sizing with 3-knuckle construction and ANSI K81081F certification. Designed for single-acting operation, this full mortise spring hinge provides consistent closing force while meeting commercial building codes for hotels, motels, institutions, and commercial facilities.

Professional Features & Benefits

  • Standard Weight Construction: Steel with steel components provides reliable durability for medium-duty commercial applications.
  • ANSI Certification: ANSI K81081F compliance ensures code compliance for commercial building requirements.
  • 3-Knuckle Design: Three-knuckle configuration with 5/8" round corner radius for smooth operation and professional appearance.
  • Automatic Closing Function: Spring mechanism provides consistent door closing for code compliance in hotels, motels, institutions, and commercial buildings.
  • Versatile Installation: Full mortise design with machine screw fasteners - door leaf uses #1/4-20 x 2" with grommet nuts, jamb leaf uses #12-24 x 1/2".
  • Multiple Finish Options: Available in USP, US3, US4, US10, US10A, US10B, and US26D finishes to match existing hardware.
  • Professional Application: Meets codes for commercial buildings and institutional facilities where automatic door closing is required.

Technical Specifications

  • ANSI/BHMA: ANSI K81071F
  • Commercial/Residential: Commercial
  • Duty Level: Medium Duty
  • Features: Full Mortise, Spring Hinge, 5/8" Round Corner Radius, Standard Weight
  • Gauge: See Sizing Chart Options
  • Height: See Sizing Chart Options
  • Knuckles: 3
  • Material: Steel with Steel Components
  • Subcategory: Full Mortise Hinges
  • Width: See Sizing Chart Options

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Hotel and Motel Properties
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager spring hinges deliver professional-grade reliability with steel construction and ANSI K81081F certification for demanding commercial applications. The 3-knuckle design with standard weight rating provides consistent automatic closing performance while meeting building codes for hotels, motels, institutions, and commercial facilities. Engineered for medium-duty applications where dependable self-closing operation is essential.

Product Specs

Knuckles:
3
Subcategory:
Full Mortise Hinges
Product Subgroup:
Spring Hinges
Features:
Full Mortise, Spring Hinge, 5/8" Round Corner Radius, Standard Weight
ANSI/BHMA:
ANSI K81071F
Duty Level:
Medium Duty
Product Group:
Door Hinges and Pivots
Product Type:
Spring Hinge
Commercial/Residential:
Commercial
Product Model:
1252
Product Function:
Spring Hinges
Product Substrate:
Steel
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Hager HAG-1253 4-1/2 US26D – Frequently Asked Questions

1) What is a half surface spring hinge and when do I use one instead of a full mortise hinge?
A half surface hinge mortises into the frame on the jamb leaf and surface-mounts to the face of the door on the other leaf. That is why the Hager 1253 uses two different fasteners: #1/4-20 x 2 inch machine screws with grommet nuts through the door, and #12-24 x 1/2 inch machine screws into the jamb. Use it when the door itself cannot be mortised or has already been cut up, typically hollow metal or a channel-edge door on a rehang. If both the door edge and the frame can take a mortise, a standard full mortise spring hinge such as the McKinney 1502 is the simpler prep.
2) Does the Hager 1253 spring hinge close the door on its own, or do I still need a door closer?
The spring is the closing device. The 1253 is a single acting self closing hinge, so it returns the door to the frame without a surface closer, which is how corridor and stairwell doors in hotels, motels and institutions get their self closing requirement met without hanging a closer on the face of the door. What it does not give you is closing speed control, backcheck or delayed action. On a heavy exterior door or anywhere you need a controlled sweep and latch, a closer is still the right device.
3) Is the Hager 1253 spring hinge fire rated for a 20 minute or 90 minute door?
No fire rating is carried on the 1253. Where the opening is a rated door assembly and the label requires a listed self closing hinge, go with a hinge that carries the listing outright: the SOSS 216IC invisible spring closer hinge is rated for 20 minutes, and the Design Hardware UL spring hinge and the Emtek 95013 are UL listed spring hinges. Match the hinge listing to what the door label calls for before you order.
4) I need a self-closing hinge on a residential 3-1/2 inch door prep, not a 4-1/2 inch commercial one. What should I use?
Step down to a 3-1/2 inch spring hinge. Deltana's DSH35R4 is a single action spring hinge, 3-1/2 inch by 3-1/2 inch with a 1/4 inch radius corner, in steel, and the DSH35R4-A is the same 3-1/2 inch by 3-1/2 inch 1/4 inch radius steel single action hinge. Emtek's 95013 is a 3-1/2 inch by 3-1/2 inch spring hinge sold as a pair, with square corners, in plated steel and UL listed. All three take the smaller door and frame prep that the 4-1/2 inch Hager 1253 will not fit; pick the corner to suit what is routed, 1/4 inch radius on the Deltanas or square on the Emtek.
5) What is the closest equivalent to the Hager 1253 spring hinge from another manufacturer?
The McKinney 1502 is the nearest peer. It is a full mortise spring hinge in standard weight, medium duty, sized 4-1/2 inch by 4-1/2 inch, the same size the Hager 1253 covers. The difference to check against the opening is the corner: the McKinney 1502 is a square corner hinge, while the Hager 1253 carries a 5/8 inch round corner radius. A door and frame already mortised for square corners will not accept a 5/8 inch radius leaf without rework, and the reverse leaves visible gaps at the corners, so match the existing prep before ordering either.
6) The door has to swing both ways. Can I use the Hager 1253 spring hinge?
No. The Hager 1253 is a single-acting full mortise spring hinge, so it closes a door swinging one direction only. For a door that swings both ways, use a double action spring hinge: the Deltana DASH95 is a double action spring hinge with solid brass cover plates, and the Deltana DASHS is a double action saloon hinge sold each in 4 inch, 5 inch and 6 inch heights. Double action hinges are the ones to specify for pass-through and saloon style openings where a single-acting hinge would fight the swing.
7) How many Hager 1253 spring hinges do I need per door?
Spring hinges are ordered each, not per pair, and you hang the door on the same number of hinges you would use otherwise. On a standard 7 foot commercial door that is three per leaf. Common practice with spring hinges is to run at least two spring hinges on the leaf so the closing force is shared; a third position can be a matching plain bearing hinge. Order all of them in the same finish so the door reads consistently.
8) Do I have to specify handing when I order a Hager 1253 spring hinge?
Handing is not an option on this hinge. Spring hinges of this type are non handed and the spring is tensioned after the hinge is hung, so the same part works on a left or right hand opening. What you do specify is finish and the 4-1/2 inch size. Note it is single acting, so it closes in one direction only. A door that has to swing and close both ways, like a service or saloon opening, needs a double action hinge such as the Deltana DASH95.
9) What does the ANSI K81071F designation on a Hager spring hinge mean?
K81071F is the ANSI/BHMA number Hager assigns the 1253, and it is what a spec writer or an institutional buyer needs to see on a submittal to show the hinge matches the hardware schedule. The K prefix covers spring hinges under the BHMA hinge standard. If your spec calls out a K number, quote this one back on the submittal rather than the model number alone.
10) Where do the hinges go on the door, and do I need a template to lay out a Hager half surface hinge?
Hager publishes standard hinge locations and a half surface size options chart, and both are the documents to work from on the 1253 rather than eyeballing off the old hinge. Because the door leaf surface mounts, the through bolt holes for the 1/4-20 x 2 inch screws and grommet nuts have to line up on both faces of the door, so mark the door from the template before you drill. The jamb leaf mortises and takes #12-24 x 1/2 inch machine screws.
11) Can I take the pin out of a Hager 1253 to remove the door without unscrewing the hinge?
The 1253 is a three knuckle steel spring hinge and the spring tension is carried in the barrel, so it is not a pull the pin and lift the door arrangement the way a plain bearing hinge is. If removable pin operation is what you are after on a spring hinge, the BEST 2060R and the BEST RD2060R are standard weight spring hinges built with a removable pin, in square corner and radius corner respectively.
12) The door is not closing hard enough to latch. Can the spring tension on a Hager spring hinge be adjusted?
Yes, spring hinges are tensioned in the field with a hex wrench and a tension pin in the barrel, and you increase or decrease force by winding the spring and reseating the pin. Two things to check first: run the tension evenly across every spring hinge on the leaf, not just one, and confirm the closing problem is not a latch or strike alignment issue, because winding more force into the springs to overcome a misaligned strike wears the door out. If the opening genuinely needs controlled closing force, use a closer rather than maxing out the hinges.
13) I have a square corner hinge prep and need a self-closing hinge. What are my options?
For a square corner mortise, the Orca Hardware 4040 Series is a 4 inch by 4 inch square corner spring hinge in medium duty, and the McKinney 1502 is a square corner full mortise standard weight spring hinge at 4-1/2 inch by 4-1/2 inch, also medium duty. The BEST 2060R is a square corner spring hinge in standard weight with a removable pin. Choose by leaf height against what is routed: 4-1/2 inch on the McKinney, 4 inch on the Orca 4040. The Hager 1253 carries a 5/8 inch round corner radius, so it is the radius corner answer rather than the square corner one.
14) What is the difference between the Hager 1253 spring hinge and the SOSS invisible spring closer hinges?
They solve the same self-closing problem in opposite ways. The Hager 1253 is a full mortise spring hinge with a visible 3 knuckle barrel at the edge of the door, medium duty. The SOSS 216IC, 218IC and 220IC are invisible spring closer hinges, heavy duty, that conceal entirely inside the door and jamb when the door is shut; the 216IC and 220IC carry a 20 minute fire rating, the 218IC is 7 inch and requires a 1-3/4 inch minimum door thickness, and the 220IC is 7 inch requiring a 2 inch minimum door thickness. Specify the SOSS route when nothing may be visible on the closed door and the leaf is thick enough; specify the 1253 when a standard mortise leaf hinge is what the opening is prepped for.
15) Which spring hinge should I use if I want to be able to pull the pin and take the door off?
The BEST 2060R is a plain bearing spring hinge with a removable pin in standard weight with square corners, medium duty, and the BEST RD2060R is the same removable pin plain bearing spring hinge in standard weight with a radius corner, medium duty. A removable pin lets you drop the door out without unscrewing the leaves, which matters on units where doors come off for turnover or refinishing. The Hager 1253 is a 3 knuckle full mortise spring hinge in steel with steel components; match the corner when choosing between the two BEST models, square on the 2060R or radius on the RD2060R.
16) Which spring hinge is UL listed for a self-closing door?
Two peers state a UL listing directly: the Design Hardware UL Spring Hinge, medium duty, and the Emtek 95013, a UL listed plated steel spring hinge sold as a pair in 3-1/2 inch by 3-1/2 inch with square corners. The Hager 1253 is a commercial spring hinge certified ANSI K81071F, medium duty. Where a fire door assembly or an inspector calls specifically for a UL listed self-closing hinge, the Design Hardware or Emtek units carry that listing on their face; the Emtek is limited to the smaller 3-1/2 inch prep.
17) What do I use instead of the Hager 1253 on a 1/4 inch radius corner prep?
The Orca Hardware 4014 Series is a 4 inch by 4 inch spring hinge with a 1/4 inch radius corner in medium duty, and Deltana's DSH35R4 and DSH35R4-A are single action steel spring hinges at 3-1/2 inch by 3-1/2 inch with a 1/4 inch radius. The Hager 1253 is cut to a 5/8 inch round corner radius, which is a wider sweep than a 1/4 inch corner, so on a frame routed for 1/4 inch radius the 1253 leaf will not seat without rework. Confirm the leaf height as well, 4 inch on the Orca 4014 and 3-1/2 inch on the Deltanas.
18) The door is heavy and the medium duty spring hinge is not holding it closed. What is the heavier option?
The heavy duty self-closing hinges in the spring hinge range are the SOSS invisible spring closers: the 216IC Series, the 218IC and the 220IC Series are all rated heavy duty. The Hager 1253 is standard weight and rated medium duty, which suits medium-duty commercial leaves. Before switching, confirm door thickness, since the SOSS 218IC needs a 1-3/4 inch minimum door thickness and the 220IC needs 2 inch minimum, and both are 7 inch hinges requiring a concealed pocket rather than a surface mortise leaf.
19) What finishes does the Hager 1253 half surface spring hinge come in?
Seven finishes, all on the 4-1/2 inch size: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed satin bronze, 626 satin chrome, US10A antique bronze, and 600 primed for painting. For a property manager matching a corridor of existing doors, 626 satin chrome is the usual commercial match to satin chrome levers and 613 is the darker oil rubbed look. The 600 primed option is the one to take when the hinge is going to be painted out with the frame.
20) Can the Hager 1253 be modified for electrified hinge wiring for an access control door?
The 1253 as sold is a mechanical spring hinge with three knuckles and no wire transfer. Concealed electric modification is a separate build, not a field conversion of a spring hinge, and Hager publishes the modification details and the electric hinge installation instructions as reference documents. On an access control opening the practical approach is a dedicated electric transfer hinge or a power transfer at the frame, with the 1253 carrying the closing function on the other hinge positions.
21) Do the spring hinges come as a pair or sold individually?
It varies by product and it changes what you order for a three-hinge opening. The Emtek 95013 is sold as a pair of 3-1/2 inch by 3-1/2 inch spring hinges, while the Deltana DASHS double action saloon hinge is sold each in 4 inch, 5 inch and 6 inch heights. Check the count before ordering across brands, because a quantity of three on a pair-packed item and a quantity of three on an each-packed item give very different results on the job.
