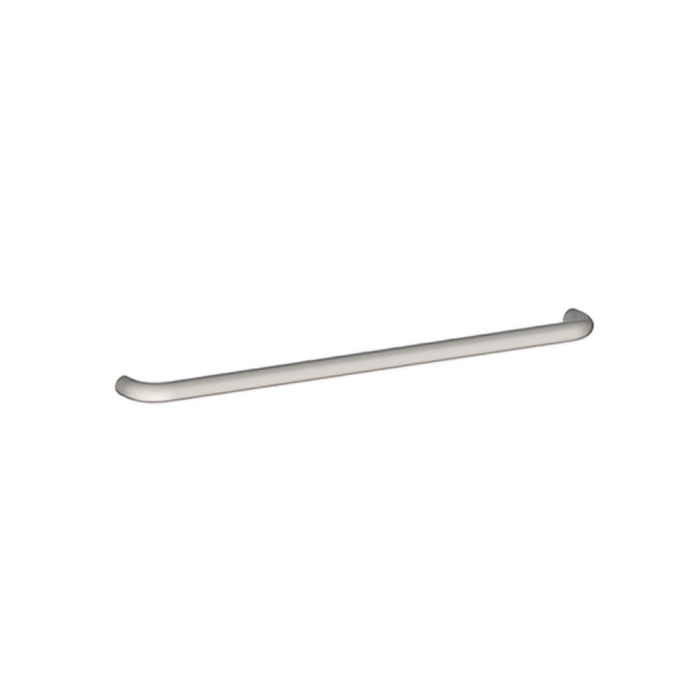

Hager 133S Push Bar 1" Round, 2" Diameter Base Plate, 2-5/8" Projection, 33" CTC HAG-133S-US32D-33CTC

Hager 133S Stainless Steel Push Bar with 1" Round Bar and 2" Diameter Base Plate

(No reviews yet) Write a Review

Model: 133S-US32D-33CTC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$363.94
$232.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 133S Stainless Steel Push Bar with 1" Round Bar and 2" Diameter Base Plate

Commercial-Grade Door Hardware Solution

The Hager 133S push bar delivers professional-grade performance for commercial door applications with its durable stainless steel construction. This push bar features a 1" round bar design with 2" diameter base plates and 2-5/8" projection, specifically configured for 33" center-to-center mounting. The unit meets ANSI A156.6 standards for J501 push bar applications and includes 1/4" - 20 x 2-1/4" FPHMS fasteners with finish washers for secure installation.

Professional Features & Benefits

  • Dimensional Specifications: 1" round bar with 2" diameter base plates and 2-5/8" projection for optimal ergonomic performance.
  • Center-to-Center Configuration: 33" CTC spacing designed for standard commercial door applications.
  • Stainless Steel Construction: Durable stainless steel material provides exceptional corrosion resistance and long-term reliability in high-traffic environments.
  • ANSI Compliance: Meets ANSI A156.6 standards for J501 push bar applications ensuring code compliance and professional performance.
  • Complete Hardware Package: Includes 1/4" - 20 x 2-1/4" FPHMS fasteners with finish washers for secure mounting.
  • Mounting Options: Standard surface mounting included with optional Type 5 concealed mountings available for enhanced aesthetics.
  • US32D Finish: Satin stainless steel finish provides professional appearance and durability.

Technical Specifications

  • ANSI/BHMA: EPD. Meets ANSI A156.6 for J501 push bar
  • Base Diameter: 3/4" (19 mm) Round
  • Commercial/Residential: Commercial
  • Fasteners: 1/4" - 20 x 2- 1/4" FPHMS with finish washers. May be ordered with Type 5 concealed mountings at extra charge
  • Finishes: US32D;
  • Material: Stainless Steel
  • Projection: 2-1/4" (57 mm)
  • Subcategory: Push Bars

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and mounting surface compatibility for this push bar configuration.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface at 33" center-to-center spacing.
  3. Prepare door by drilling required holes for 1/4" - 20 fasteners as specified in manufacturer instructions.
  4. Install push bar using provided 1/4" - 20 x 2-1/4" FPHMS fasteners with finish washers per manufacturer torque specifications.
  5. Adjust push bar alignment for proper positioning and secure mounting of both base plates.
  6. Test push bar operation to verify proper function and secure attachment. Refer to manufacturer documentation for complete installation details and optional concealed mounting procedures.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager push bar products deliver professional-grade reliability with stainless steel construction that meets ANSI A156.6 standards for demanding commercial applications. The 133S model combines durable materials with precise engineering to provide dependable performance in high-traffic environments. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Manufacturer Resources

Product Specs

Fasteners:
1/4" - 20 x 2- 1/4" FPHMS with finish washers. May be ordered with Type 5 concealed mountings at extra charge
Subcategory:
Push Bars
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push Bars
ANSI/BHMA:
EPD. Meets ANSI A156.6 for J501 push bar
Commercial/Residential:
Commercial
Product Model:
133S
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Department:
Door Hardware

Hager 133S-US32D-33CTC – Frequently Asked Questions

1) What center-to-center spacing does the Hager 133S push bar mount at?
The 133S is built for 33 inch center-to-center mounting, so the two base plate hole locations on the door have to be drilled at 33 inches apart. Hager supplies a template for marking them. If your existing push bar or door prep is drilled at a different spread, the holes will not line up and you would need a different CTC configuration.
2) Is the Hager 133S push bar rated for a commercial opening, and what standard does it meet?
It is a commercial-grade item, not a residential one, and it meets ANSI A156.6 for a J501 push bar. For a spec writer or facilities buyer, J501 is the push bar function type under that trim standard, so the 133S satisfies a drawing calling out an ANSI A156.6 J501 push bar.
3) Is a push bar like the Hager 133S the same thing as a security bar for a double door?
No, and this is a common mix-up. The 133S is door trim: a round push bar mounted horizontally on the push side of a commercial door so people can shove it open. It does not lock or secure anything. If you want to physically bar a door shut, that is a different product, such as the Exit Security SB Series double door outswing bar or the SB-SG single door outswing security bar, both heavy duty security bars rather than push trim.
4) Is an Exit Security SB series bar a substitute for the Hager 133S push bar?
No. The Hager 133S is a stainless steel push bar for commercial doors that meets ANSI A156.6 for the J501 push bar function, mounted through the door on 1/4" - 20 x 2-1/4" FPHMS fasteners with finish washers so the door can be pushed open. The Exit Security SB is a double door outswing bar, a heavy duty security barricade product. One is egress push trim, the other secures a closed opening, so they are not interchangeable even though both are described as bars.
5) Will a stainless steel push bar hold up on an exterior door or in a washdown area?
The 133S is solid stainless steel, which is the reason to pick it over brass or aluminum trim on exterior entries, kitchens, healthcare corridors and coastal buildings where plated finishes pit. The US32D satin stainless finish also hides scuffs better than a polished finish on a high-traffic pull side.
6) What finish does the Hager 133S push bar come in, and will it match my existing door hardware?
US32D only, which is satin stainless steel. That is the most common commercial finish, so it matches satin stainless pulls, plates, hinges and exit device trim already on most office, school and hospital openings. It will not match a US26D satin chrome plated set exactly, though the two are close enough that many buildings mix them.
7) For a pair of doors, does the Exit Security SB cover the same application as two Hager 133S push bars?
No. Two Hager 133S push bars would give each leaf of a pair its own stainless steel push surface, each meeting ANSI A156.6 for J501 and fastened with the supplied 1/4" - 20 x 2-1/4" FPHMS hardware. The Exit Security SB is a double door outswing bar that spans a pair to hold it closed. A pair of doors that both needs push trim and needs securing after hours takes both types of product, not one in place of the other.
