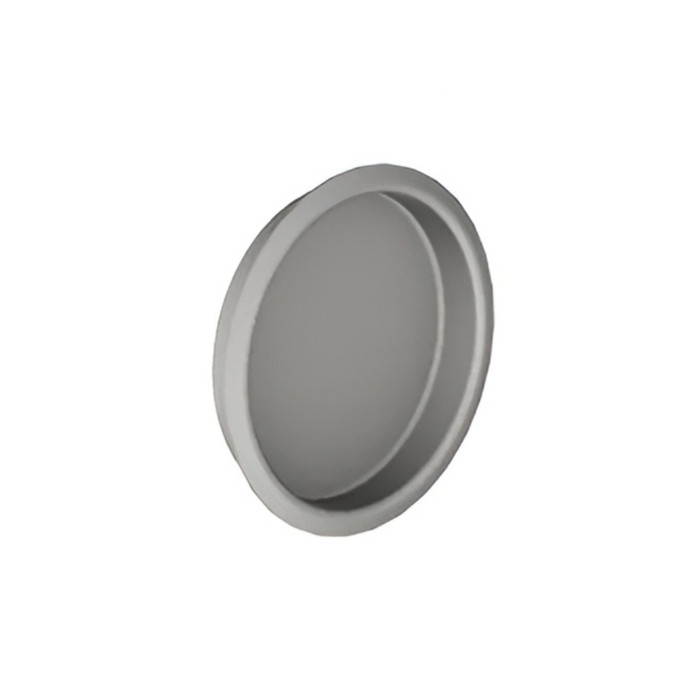

Hager 2630 Round Flush Pull with 2-7/16" Overall Diameter and Built-In Prong Design

Hager 2630 Round Flush Pull with 2-7/16" Overall Diameter and Built-In Prong Design

(No reviews yet) Write a Review

Model: 2630 US3
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 2630 Round Flush Pull with 2-7/16" Overall Diameter and Built-In Prong Design

Professional Flush Cup Pull for Bi-Fold and Pocket Door Applications

The Hager 2630 Round Flush Pull delivers professional-grade door hardware performance with a 2-7/16" overall diameter and 2-1/16" finger pull diameter. Constructed from solid brass with an 11/32" depth and minimal 3/32" projection, this flush cup pull features an innovative built-in prong design that eliminates the need for screws or brads during installation. Available in multiple finish options including US3, US4, US5, US10A, US15, US15A, US26, US26D, and ABA for versatile design coordination.

Professional Features & Benefits

  • Precise Dimensions: 2-7/16" overall diameter with 2-1/16" finger pull diameter provides optimal grip and aesthetic proportions for professional door applications.
  • Built-In Prong Installation: Innovative prong design eliminates the need for screws or brads, simplifying installation while providing secure mounting.
  • Solid Brass Construction: Durable solid brass material ensures long-lasting performance and resistance to wear in high-use applications.
  • Low-Profile Design: 3/32" projection and 11/32" depth create a flush appearance that minimizes snag hazards while maintaining functionality.
  • Versatile Application Compatibility: Specifically designed for bi-fold, by-pass, and pocket door installations where space-saving hardware is essential.
  • Multiple Finish Options: Available in US3, US4, US5, US10A, US15, US15A, US26, US26D, and ABA finishes for comprehensive design flexibility.
  • Professional Packaging: Supplied in case quantities of 50 units for efficient project procurement and inventory management.

Technical Specifications

  • Case Quantity: 50
  • Depth: 11/32" (9 mm)
  • Diameter: Overall 2-7/16" (62 mm), Finger pull 2-1/16" (52 mm)
  • Finishes: US3, US4, US5, US10A, US15, US15A, US26, US26D, ABA
  • Material: Solid brass
  • Notes: Crossover from SDH section
  • Projection: 3/32" (2 mm)
  • Subcategory: Door Pulls, Push and Pull Plates
  • Use: For use with bi-fold, by-pass, or pocket door applications

Installation & Operation

  1. Review door preparation requirements and verify door thickness compatibility with the 11/32" depth specification.
  2. Mark the desired pull location on the door surface, ensuring proper positioning for user accessibility and door operation clearance.
  3. Drill the required hole diameter to accommodate the flush pull body and built-in prong mounting system.
  4. Insert the pull into the prepared opening, ensuring the built-in prongs engage securely with the door material.
  5. Verify the pull sits flush with the door surface and operates smoothly without binding or interference.
  6. Test pull operation to confirm secure mounting and proper function. Refer to manufacturer documentation for specific hole preparation dimensions and installation details.

Professional Applications

  • Bi-Fold Door Systems
  • Pocket Door Installations
  • By-Pass Door Applications
  • Commercial Office Environments
  • Residential Custom Millwork
  • Hospitality and Hotel Projects
  • Healthcare Facility Privacy Doors

Why Choose Hager Quality?

Hager flush pull hardware delivers professional-grade reliability with solid brass construction engineered for demanding commercial and residential applications. The innovative built-in prong design eliminates installation complexity while maintaining secure mounting performance. Engineered for space-saving door applications where dependable operation and clean aesthetics are essential.

Manufacturer Resources

Product Template

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Flush Pulls
Subcategory:
Door Pulls, Push and Pull Plates
Product Model:
2630
Product Diameter:
Overall 2-7/16" (62 mm), Finger pull 2-1/16" (52 mm)
Product Projection:
3/32"
Product Substrate:
Solid brass
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 2630 US3 – Frequently Asked Questions

1) Will the Hager 2630 flush pull work on a pocket door or bi-fold?
That's exactly what the 2630 round flush pull is for: bi-fold, by-pass, and pocket doors. It sits in a bored recess so nothing sticks out into the pocket or between stacked bi-fold panels, with only a 3/32 inch projection off the face. Overall diameter is 2-7/16 inches, so you need that much clear flat face on the stile or panel at the pull location.
2) How deep does the hole need to be for the Hager 2630 flush pull?
The cup is 11/32 inch deep (9 mm) with a 2-7/16 inch overall diameter, so the bore has to take that depth without breaking through. On a 1-3/8 inch interior door, which is the common thickness on bi-fold and pocket panels, 11/32 inch leaves plenty of material behind the cup. Thin hollow-core bi-fold panels are the case to check, since the prongs need solid material to bite into.
3) What is a cross-brand equivalent to the Hager 2630 round flush pull?
The closest cross-brand counterpart is the Trimco 1110 Series manual flush pull. Both are manual flush cup pulls for doors that need hardware sitting at or below the face of the door. The Hager 2630 is a round pull with a 2-7/16 inch overall diameter and a 2-1/16 inch finger pull opening, made of solid brass, with only 3/32 inch projection. If you are matching an existing cutout, work from that 2-7/16 inch diameter and 11/32 inch depth first, since the bore in the door is what decides whether a pull drops in.
4) How big is the finger opening on the Hager 2630 pull?
The recessed finger pull measures 2-1/16 inches (52 mm) across inside a 2-7/16 inch (62 mm) overall cup. That's a full-finger grip, not a fingertip notch, which matters when the door is a heavy by-pass panel someone has to slide daily rather than a light closet bi-fold.
5) Is the Hager 2630 flush pull solid brass or plated steel?
Solid brass. That's the base material under whatever finish you order, including 630 satin stainless steel, which is a finish over the brass body rather than a stainless part. For a property manager standardizing across a building, brass takes handling wear on a daily-use closet or pocket door better than a stamped pull.
6) Should I use a round flush pull or a rectangular one on a pocket door?
Round pulls like the 2630 go in with a single bored hole, which is why they're common on retrofits and on site-built millwork where you don't want to rout a rectangular mortise. Rectangular flush pulls give a longer grip and are the usual choice on tall passage-height pocket doors that get pulled hard. If you want the rectangular style, Trimco's 1110 Series manual flush pulls are the alternative to look at.
7) Will a flush pull alone latch or hold a bi-fold door closed?
No. The 2630 is a pull only, with no latch, no catch, and no locking function. It gives you a grip to move the panel and nothing more. Bi-fold and by-pass doors need a separate roller catch, magnetic catch, or track hardware to hold them shut, and a pocket door that needs to lock takes a pocket door lock or privacy latch instead of a plain flush pull.
8) The Hager 2630 mounts with built-in prongs. What flush pull do I use if prongs will not hold in my door?
The Hager 2630 seats with a built-in prong design that engages the door material, which depends on the prongs biting into the substrate. On a door where that will not hold, the Trimco 1110 Series manual flush pull is the alternative to price out for the same opening. Confirm the mounting method the 1110 Series uses against your door before you order, and confirm the cup diameter matches the bore you already have if you are replacing rather than boring new.
9) Can I order the Hager 2630 flush pull in small quantities or only by the case?
The 2630 is packed 50 to a case. On a multi-family or hotel job where every closet has a pair of by-pass doors, a case covers 25 openings at one pull per leaf, so run the count by leaf and not by opening before you order.
