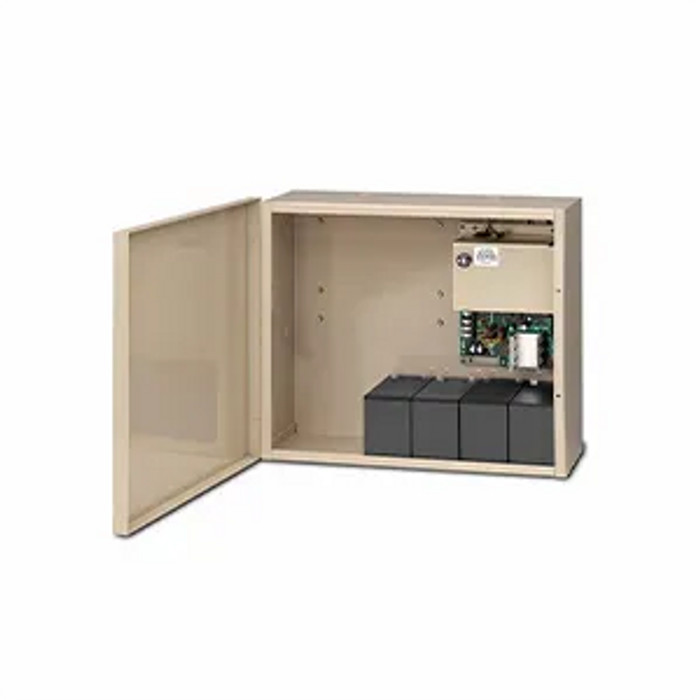

Hager 2910 4A Modular Access Control Power Supply

Hager 2910 4A Modular Access Control Power Supply with Field Selectable 12/24VDC Output

(No reviews yet) Write a Review

Model: 2910

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,186.65
$937.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 2910 4A Modular Access Control Power Supply with Field Selectable 12/24VDC Output

Professional Modular Power Supply for Access Control Systems

The Hager 2910 delivers up to 4 amps of field-selectable 12 or 24 volt DC power specifically designed for all Hager electrified products. This UL294 listed modular power supply features a regulated design with filtering and output voltage regulation to protect system components and ensure longevity. Housed in 16 gauge steel construction with dimensions of 16" height, 14" width, and 6.5" depth, the unit operates on 115 VAC, 50/60 Hz input with 230 VAC optional configuration.

Professional Features & Benefits

  • High Current Output: Provides up to 4 amps at field-selectable 12 or 24 VDC for demanding access control applications requiring substantial power delivery.
  • Modular Expandability: Compatible with multiple accessory modules including 5 amp hour battery backup, 12 VDC output regulator, universal relay module, and 16 amp power boost module for customized configurations.
  • Advanced Protection Systems: Circuit breaker protected AC input with PTC protected charging output and fire alarm input for comprehensive system safety and monitoring.
  • Voltage Regulation Technology: Maintains stable 12 or 24 VDC output regardless of load changes and battery charging conditions for consistent system performance.
  • Heavy-Duty Construction: 16 gauge steel enclosure provides durability and electromagnetic shielding for reliable operation in commercial environments.
  • Comprehensive Status Monitoring: LED indicators provide real-time status with amber for normal operation, green for no DC output, and red for battery backup mode operation.
  • California Compliance: Standard California compliant manual release ensures code compliance for emergency egress applications.
  • Manufacturer Warranty: One-year warranty coverage for added confidence and protection in commercial installations.
  • Fire alarm input

Technical Specifications

  • Accessories: 2-679-0661 - 5 Amp hour battery backup
  • Ampheres: 4 Amps
  • ANSI/BHMA: UL294 Listed
  • Applications: Provides up to 4 amp of 12 or 24 volt DC power for all electrified products
  • Commercial/Residential: Commercial
  • Electrical Specifications: 1.2A @ 115 VAC, 50/60 Hz (230 VAC optional)
  • Features: Fire alarm input
  • Gauge: 16 Gauge Steel
  • LED Indicators: Amber - AC and DC voltages are OK
  • Size: 16" Height, 14" Width, 6.5" Depth
  • Subcategory: Modular Power Supplies
  • Voltage: 12/24VDC Field Selectable
  • Warranty: One-year

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 115 VAC, 50/60 Hz input capacity and current requirements before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements with 16" height, 14" width, and 6.5" depth clearances.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for 4 amp output capacity.
  5. Configure operational settings including field-selectable 12/24 VDC output voltage per application requirements.
  6. Restore power and test all functions including normal operation, LED status indicators, fire alarm input, and integration with connected access control devices.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Access Control Systems
  • Electric Lock and Strike Power Distribution
  • Magnetic Lock Installation Power Supply
  • Delayed Egress System Power Management
  • Magnetic Hold Open Device Power
  • Multi-Door Access Control Installations
  • High-Security Facility Power Distribution

Why Choose Hager Quality?

Hager 2910 power supplies deliver professional-grade reliability with 16 gauge steel construction and UL294 listing for demanding commercial applications. The modular design with comprehensive accessory compatibility and advanced voltage regulation technology ensures dependable performance where consistent power delivery is essential. One-year manufacturer warranty provides added confidence for critical access control installations.

Electric strike for fail-safe or fail-secure access control applications. Compatible with cylindrical, mortise, and exit device trim.

Product Specs

Subcategory:
Modular Power Supplies
ANSI/BHMA:
UL294 Listed
Product Group:
Electronic Access Controls
Product Subgroup:
Power Supplies
Product Type:
Modular Power Supplies
Commercial/Residential:
Commercial
Ampheres:
4 Amps
Product Model:
2910
Product Voltage:
12/24 VDC
Product Category:
Power Supplies
Department:
Door Hardware

Hager 2910 – Frequently Asked Questions

1) Can the Hager 2910 power supply run both 12V and 24V locks, or do I pick one?
Output voltage is field selectable, 12 or 24 VDC, but it is one setting for the whole unit. Everything you power off the 2910 runs at whichever voltage you set. Mixing a 12V mag lock and a 24V strike off the same board means adding the 12 VDC output regulator module, which is one of the accessory modules the 2910 accepts.
2) Is 4 amps enough for a multi-door access control job?
The 2910 supplies up to 4 amps total at the selected voltage, shared across every device on it. Budget your draw: mag locks pull continuously, electric strikes pull only on release. If the total continuous load exceeds 4 amps, the 16 amp power boost module is the accessory Hager lists for expanding the same cabinet rather than adding a second supply.
3) Does the Hager 2910 drop power to mag locks on a fire alarm signal?
Yes, there is a fire alarm input on the 2910 for exactly that. Tie your FACP contact to it and the supply kills DC output to release fail-safe devices such as mag locks and hold-opens. The unit also ships with a California compliant manual release.
4) Does the Hager 2910 include battery backup?
Battery backup is an add-on, not built in. The 5 amp hour battery backup module, part 2-679-0661, is the accessory Hager lists for the 2910. The charging output is PTC protected, and the red LED tells you the unit has switched over to battery.
5) How much wall space do I need for the Hager 2910 enclosure?
The cabinet measures 16 inches high, 14 inches wide and 6.5 inches deep in 16 gauge steel. Allow clearance beyond that for conduit entry, wiring access and servicing, and remember the depth grows in practice once a backup battery is sitting inside.
6) What incoming power does the Hager 2910 need on the line side?
115 VAC, 50/60 Hz, drawing 1.2 amps, with a 230 VAC configuration available. The AC input is circuit breaker protected. Run a dedicated circuit and follow local electrical code for the whip into the cabinet.
7) What do the LED colors on the Hager 2910 mean during troubleshooting?
Amber means AC and DC are both good, normal running state. Green means there is no DC output. Red means the unit is running on battery backup. If you walk up to a dead opening and see red, you have lost line power; green points at the output side or a fire alarm trip.
8) Is the Hager 2910 only for Hager electrified hardware, or will it run other brands?
Hager specifies it for their full line of electrified products, but it is a regulated 12/24 VDC supply, so any access control device that matches the selected voltage and fits inside the 4 amp budget will run on it. What matters is voltage and current draw, not the badge on the lock.
9) Will the 2910 power a relay for a card reader or REX input?
A universal relay module is one of the accessories the 2910 accepts, which is how you get dry contact switching for reader, REX or alarm interlock wiring off the same cabinet instead of mounting a separate relay board.
10) Is this power supply suitable for a residential gate or home application?
No. The 2910 is a commercial unit, sized and enclosed for building access control systems, electric strikes, mag locks and delayed egress. A 16 by 14 by 6.5 inch steel cabinet on 115 VAC is far more supply than a single residential opening needs.
