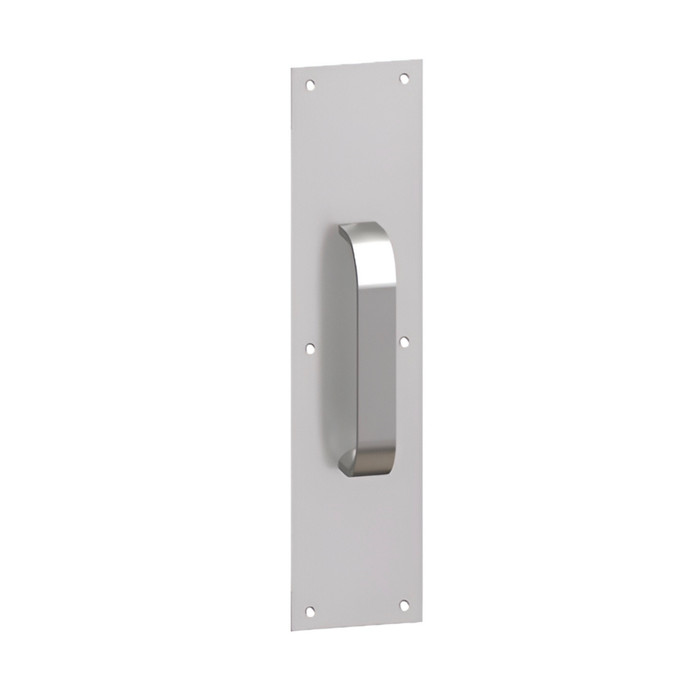

Hager 31E Square Corner Pull Plate with Half Round Pull - 0.050 Gauge Commercial Door Hardware

Professional Square Corner Pull Plate Solution

The Hager 31E Square Corner Pull Plate features a half round pull design with 0.050" (1.3 mm) gauge construction for reliable commercial door hardware applications. This ANSI A156.6 compliant pull plate meets J301 push plate standards and is available in multiple material options including aluminum, brass, bronze, and stainless steel. The square corner design provides clean architectural lines while the half round pull offers comfortable grip ergonomics.

Professional Features & Benefits

  • Precision Gauge Construction: 0.050" (1.3 mm) gauge thickness provides optimal strength-to-weight ratio for commercial door applications.
  • ANSI A156.6 Compliance: Meets J301 push plate standards ensuring code compliance and professional installation requirements.
  • Multiple Material Options: Available in aluminum, brass, bronze, and stainless steel to match various architectural finishes and durability requirements.
  • Square Corner Design: Clean architectural profile with precise square corners for modern commercial door aesthetics.
  • Half Round Pull Configuration: Ergonomic pull design provides comfortable grip while maintaining professional appearance.
  • Customization Options: May be ordered cut for cylinder (CFC) and laser engraved "Push" available in US32 and US32D finishes.
  • Professional Fastening System: Includes #6 x 5/8" OPH tapping screws with countersunk design for secure, flush mounting.
  • EPD Certification: Environmental Product Declaration available demonstrating commitment to sustainable building practices.

Technical Specifications

  • Certifications: EPD
  • Fasteners: #6 x 5/8" OPH Tapping Screws - countersunk
  • Gauge: 0.050" (1.3 mm)
  • Material: Aluminum, Brass, Bronze, Stainless Steel
  • Options: May be ordered cut for cylinder (CFC).
  • Subcategory: Door Pulls, Push and Pull Plates

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and mounting surface compatibility.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface for proper alignment.
  3. Prepare door by drilling required holes per manufacturer specifications using appropriate drill bits for door material.
  4. Install pull plate using provided #6 x 5/8" OPH tapping screws, ensuring countersunk heads are flush with plate surface.
  5. Verify secure mounting and test pull operation for smooth function and proper grip comfort.
  6. Complete final inspection to ensure proper alignment and finish appearance. Refer to manufacturer documentation for complete installation details.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager pull plates deliver professional-grade reliability with precision 0.050" gauge construction and ANSI A156.6 compliance for demanding commercial applications. Multiple material options and customization capabilities including cylinder cutouts and laser engraving provide architectural flexibility while maintaining code compliance. Engineered for commercial door hardware applications where dependable performance and professional appearance are essential.

Manufacturer Resources

Product Template

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Subcategory:
Door Pulls, Push and Pull Plates
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 31E3121526D – Frequently Asked Questions

1) What sizes and finishes does the Hager 31E pull plate come in?
The 31E comes in two plate sizes, 3-1/2 x 15 inches and 4 x 16 inches, and each size is offered in four finishes: 626 satin chrome, 628 satin aluminum, 630 satin stainless steel, and 613 satin bronze oil-rubbed. If you are standardizing a building, the 4 x 16 covers more of the door face and is the more common commercial spec; the 3-1/2 x 15 suits narrower stiles.
2) Can the Hager 31E be used on a door with a cylinder, like a storefront or an exit device door?
It can. The 31E may be ordered cut for cylinder (CFC), which puts the cylinder hole in the plate so it clears a mortise cylinder on a deadlatch or exit device door. Order it that way up front; the plate is 0.050 inch gauge and is not something you want to be drilling in the field.
3) Is the Hager 31E pull plate ANSI compliant for a commercial or institutional spec?
The 31E meets ANSI A156.6 and the J301 push plate designation, which is the architectural hardware standard architects call out for plates on commercial openings. It also has an Environmental Product Declaration, which helps on projects chasing sustainable material credits.
4) Should I order a pull plate or a push plate for my door?
A pull plate like the Hager 31E has a half round pull attached to the plate and goes on the side you pull from. A flat push plate, with no pull, goes on the swing side. A typical commercial opening uses one of each, so if you are outfitting both faces you need a push plate as well, for example the Delaney 4 x 16 push plate to match a 4 x 16 pull.
5) If the Hager 31E is not heavy enough for a high traffic entrance, what pull plate should I use instead?
The Hager 31E is built to 0.050 inch (1.3 mm) gauge. Where a heavier plate is called for, the Ives 8302 is a heavy duty pull plate with through bolt mounting, and the Ives 8303 is heavy duty with a choice of 8 inch or 10 inch center-to-center pull mounting. Trimco also offers heavy duty cast plates in the 1010 Series with a 5 inch CTC pull and the 1012 Series tapered plate with a 5.5 inch CTC pull.
6) What is the closest equivalent to the Hager 31E half round pull plate from another manufacturer?
The Trimco 1014 Series is the nearest match in pull profile - it is a half-round pull plate with a 6 inch center-to-center pull, the same grip style as the Hager 31E half round pull. The Hager 31E is offered in 3-1/2 inch x 15 inch and 4 inch x 16 inch plate sizes with 0.050 inch gauge construction and square corners.
7) Does the Hager 31E pull plate come with mounting screws?
Yes. The 31E ships with #6 x 5/8 inch oval pan head tapping screws, countersunk so the heads sit flush with the plate face. Nothing else is needed for a standard surface mount, though you do have to drill the door per the manufacturer template before fastening.
8) What is a comparable half round pull plate to the Hager 31E?
The Trimco 1014 Series is the closest match in style, a half-round pull plate with a 6 inch center-to-center pull. For a plate in the same two footprints, Delaney offers pull plates in both 3-1/2 x 15 and 4 x 16. If the job wants decorative rather than architectural, the Emtek Modern and Knoxville push and pull plate sets are the alternative direction.
9) Can I use the Hager 31E pull plate on a door with an exit device?
The Hager 31E is a general purpose square corner pull plate with a half round pull and #6 x 5/8 inch OPH tapping screws. For an exit device opening, the Detex P/PN Series pull plate is made specifically for Detex Value Series exit devices, so it is the one to specify when the pull has to work with that device rather than as standalone door trim.
10) I need a plain push plate, not a pull plate - what matches the Hager 31E sizes?
The Hager 31E is a pull plate, meaning it carries a half round pull on the plate face. For the push side of the same opening, Delaney offers push plates in both matching footprints: a 3-1/2 inch x 15 inch push plate and a 4 inch x 16 inch push plate, which pair with the same two plate sizes the 31E comes in.
11) Is there a simpler pull plate in the same 3-1/2 x 15 and 4 x 16 footprints as the Hager 31E?
Delaney lists door pull plates in both of those footprints - a 3-1/2 inch x 15 inch pull plate and a 4 inch x 16 inch pull plate - so they drop into the same door prep footprint as the Hager 31E. The 31E is the one that carries ANSI A156.6 J301 compliance and can be ordered cut for cylinder (CFC) or laser engraved.
12) What material options are there on the Hager 31E pull plate?
Aluminum, brass, bronze, and stainless steel are all offered on the 31E, which is what lets it match existing hardware across a mixed building. The finish you pick tracks the material: 628 is satin aluminum, 630 satin stainless, 613 oil-rubbed bronze, and 626 satin chrome.
13) What should I look at instead of the Hager 31E for a decorative or residential-style opening?
The Hager 31E is a square corner commercial plate in aluminum, brass, bronze or stainless steel with 0.050 inch gauge. For a decorative look, Emtek offers push and pull plate sets in the Modern series, the Knoxville series, and a Petal series made from lost wax cast bronze - all styled sets rather than flat commercial trim.
