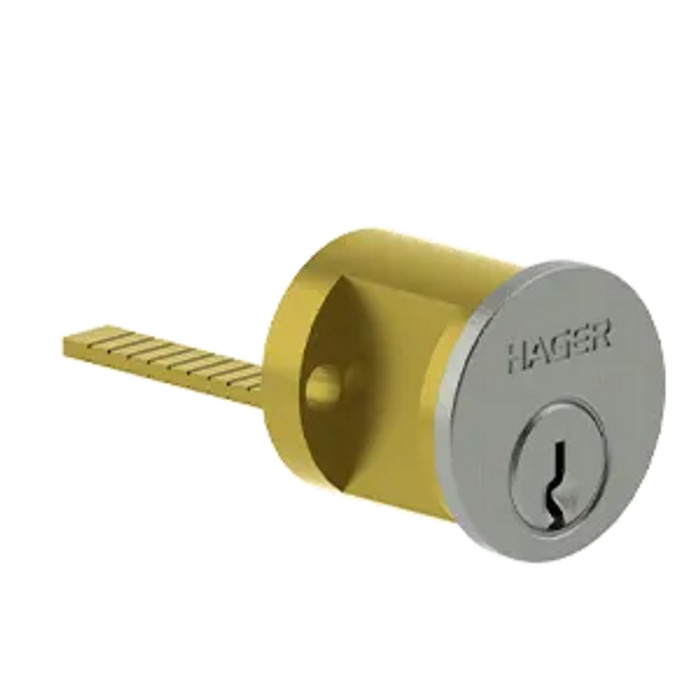

Hager 3901 Fixed Rim Cylinder and Small Format Interchangeable Core Housing

Hager 3901 Fixed Rim Cylinder with Small Format Interchangeable Core Housing

(No reviews yet) Write a Review

Model: 3901 SC 26D
$63.74
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$63.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 3901 Fixed Rim Cylinder with Small Format Interchangeable Core Housing

Professional Rim Cylinder Solution for Commercial Applications

The Hager 3901 Fixed Rim Cylinder provides reliable security with small format interchangeable core housing for commercial door applications. This conventional cylinder comes drilled 6-pin and keyed 5-pin standard, featuring a long tail piece for versatile installation requirements. Complete with trim ring, mounting plate, break off screws, and two operating keys for immediate installation.

Professional Features & Benefits

  • 6-Pin Drilling Standard: Conventional cylinder drilled 6-pin and keyed 5-pin standard for reliable security operation.
  • Complete Installation Package: Furnished with trim ring, mounting plate, and break off screws for comprehensive installation solution.
  • Long Tail Piece Design: Standard long tail piece accommodates various door thicknesses and lock mechanisms.
  • Small Format Interchangeable Core: Compatible housing allows for easy core changes and master key system integration.
  • Ready-to-Install: Supplied with two operating keys for immediate use upon installation.
  • Commercial-Grade Construction: Engineered for demanding commercial applications requiring dependable cylinder performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Series: 4700
  • Subcategory: Cylinders

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager cylinder products deliver professional-grade reliability with conventional 6-pin drilling and complete installation accessories. Engineered for demanding commercial applications where dependable cylinder performance and master key system compatibility are essential.

Manufacturer Resources

Product Template

Product Specs

Product Type:
Mortise Cylinder
Series:
4700
Subcategory:
Cylinders
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Cylinders
Product Model:
3902
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 3901 SC 26D – Frequently Asked Questions

1) Can I key the Hager 3901 into my existing Schlage C master key system?
Yes, if you order the Schlage C keyway version. It is a conventional cylinder drilled 6-pin and keyed 5-pin, so a locksmith can key it into an existing Schlage C system. If your building runs small format interchangeable cores instead, take the SFIC housing (6-pin or 7-pin) less core and install a core already cut to your system.
2) What is the difference between the 6-pin and 7-pin SFIC housing on the Hager 3901?
It is about which core depth your key system uses. A 6-pin housing takes a 6-pin small format interchangeable core; a 7-pin housing takes a 7-pin core. Order the one that matches the cores already in your facility, because the two are not interchangeable in the same housing.
3) Is a rim cylinder the right type for my door, or do I need a mortise cylinder?
A rim cylinder like the Hager 3901 mounts through the door and drives a rim exit device or a rim night latch with a tailpiece on the back. A mortise cylinder threads into a mortise lock body and drives it with a cam instead. If the lock on your door is a mortise case, the 3901 is the wrong part. The 3901 is the one you want behind a rim panic device or surface-mounted rim latch.
4) I'm re-keying a whole building of doors. Can I get these keyed alike?
Yes. Keying is a required choice at order: keyed alike, so one key runs every cylinder you buy on the order, or keyed different, so each cylinder has its own key. For a fleet of tenant doors that need individual keys, take keyed different; for a bank of doors one maintenance key should open, take keyed alike.
5) Will the Hager 3901 tailpiece reach through a thick door with a rim device?
It ships with the long tailpiece as standard, which is what covers the range of door thicknesses and rim device back plates you run into on commercial openings. Shorter tailpieces on rim cylinders are the usual cause of a cylinder that turns but will not retract the latch.
6) What hardware is included with the Hager 3901, and do I need anything else to install it?
Each cylinder is furnished with a trim ring, mounting plate, and break off screws, plus two operating keys on the keyed versions. That is everything needed to mount it in a prepped rim cylinder hole. The less-core SFIC versions arrive without keys or a core, so plan on supplying the core.
7) What finish does the Hager 3901 rim cylinder come in, and will it match my other door hardware?
626 Satin Chrome is the finish offered, across every keyway and housing option. That is the standard commercial cylinder finish and it reads as a match against 626 satin chrome exit devices, locksets, and 630 stainless trim in most buildings.
8) Is the Hager 3901 suitable for high-traffic commercial doors, or is it a residential cylinder?
It is a commercial-rated cylinder, and Hager positions it for office buildings, schools, healthcare, retail, warehouse, multi-tenant residential, and government facilities. It sits in the 4700 series line.
9) Is there a template for the rim cylinder hole prep on the Hager 3901?
Yes. Hager publishes a product template for this cylinder, T-ED008773, which gives the hole locations for marking the door before drilling. Use it rather than tracing the existing cylinder if you are cutting a fresh opening.
