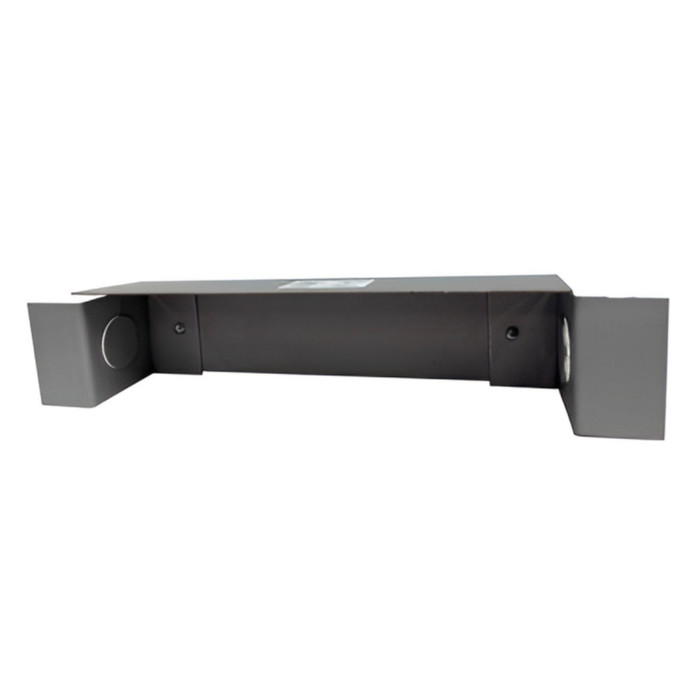

Hager 430 Commercial Hinge Mortar Box Component - Galvanized Steel Construction for 4-1/2" and 5" Hinges

Hager 430 Commercial Hinge Mortar Box Component - Galvanized Steel Construction for 4-1/2" and 5" Hinges

(No reviews yet) Write a Review

Model: HAG-430-H2
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$91.45
$66.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 430 Commercial Hinge Mortar Box Component - Galvanized Steel Construction for 4-1/2" and 5" Hinges

Professional Hinge Installation Component for Commercial Applications

The Hager 430 Commercial Hinge Mortar Box Component provides essential installation support for 4-1/2" and 5" commercial grade hinges. This galvanized steel component features a 9" length from tab to tab with a 7" inside cavity, designed specifically for hinge reinforcement applications. The removable back design allows for easy servicing access, while top and bottom knockouts accommodate standard conduit fittings for electrical integration when required.

Professional Features & Benefits

  • Precise Dimensions: 9" length from tab to tab with 7" inside cavity provides optimal fit for commercial hinge installations.
  • Universal Hinge Compatibility: Fits hinge reinforcements for both 4-1/2" and 5" commercial grade hinges for versatile application options.
  • Galvanized Steel Construction: Durable galvanized steel material provides corrosion resistance and long-term reliability in commercial environments.
  • Serviceable Design: Removable back panel allows for easy access during installation and future maintenance requirements.
  • Electrical Integration Ready: Top and bottom knockouts accommodate standard conduit fittings for electrified hinge applications.
  • Commercial Grade Quality: Engineered to support ANSI/BHMA A156.1 compliant hinge installations in demanding commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Material: Galvanized Steel ;
  • Notes: Removable back for servicing ;
  • Subcategory: Accessories

Installation & Operation

This commercial hinge component is designed for use with compatible 4-1/2" and 5" commercial grade hinges. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager commercial hinge components deliver professional-grade reliability with galvanized steel construction engineered for demanding commercial applications. As the industry's premiere designer and manufacturer of architectural hinges, Hager products meet or exceed ANSI standards and are manufactured in accordance with ANSI/BHMA A156.1 specifications. This mortar box component supports the installation of commercial hinges designed for dependable performance in high-traffic commercial environments.

Product Specs

Subcategory:
Accessories
Product Group:
Parts and Accessories
Product Type:
Commercial Hinge Component
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Product Model:
430
Product Category:
Parts and Accessories
Product Substrate:
Steel
Department:
Door Hardware

Hager HAG-430-H2 – Frequently Asked Questions

1) What is a Hager 430 mortar box actually for?
The Hager 430 is the steel box that gets set into a hollow metal frame behind a hinge reinforcement, so grout or mortar poured into the frame cannot fill the hinge prep or foul the anchors and screws. It is not a hinge and not the reinforcement plate itself. On a grouted frame job you set one behind each hinge location before the pour.
2) Will the Hager 430 fit a 4-1/2 inch hinge prep, or do I need a different size for 5 inch hinges?
One box covers both. The 430 fits hinge reinforcements for 4-1/2 inch and 5 inch commercial hinges, so you are not ordering two part numbers for a frame that mixes standard and heavy weight hinge sizes.
3) Can I run conduit to an electrified hinge through a Hager 430 mortar box?
Yes. The 430 has top and bottom knockouts that take standard conduit fittings, which is what you need when the hinge at that location is an electric power transfer hinge and the wire has to leave the frame in conduit rather than open in the grout.
4) Is the Hager 430 a hinge reinforcement plate?
No. The reinforcement is the tapped plate welded into the frame that the hinge screws bite into. The 430 goes behind it, boxing the back of that prep off from the grout. You need both on a grouted frame, and ordering the 430 does not get you the reinforcement.
5) How much clear space is inside a Hager 430 mortar box?
Nine inches from tab to tab, with a 7 inch inside cavity. The tabs sit outside the cavity, so plan the frame layout on the 9 inch overall figure and the usable pocket behind the hinge on the 7 inch figure.
6) Once the frame is grouted, can you still get into the mortar box to service an electrified hinge?
The back panel is removable, so the cavity stays accessible for pulling or replacing wire at that hinge location after the frame is set. That is the main reason to spend the money on a box here rather than blocking the prep off some other way.
7) How many mortar boxes do I need per door frame?
One per hinge location. A standard commercial opening carries three hinges, and a tall or heavy door can carry four, so order to your hinge count per frame, not per door. Hager publishes standard hinge locations if you are laying out preps from scratch.
8) Does the Hager 430 work on a residential door frame?
No, and it would have nothing to do. The 430 is a commercial item sized to commercial hinge reinforcements, and mortar boxes only matter in grouted hollow metal frames. A wood frame or an ungrouted residential steel frame does not need one.
9) Is a galvanized mortar box worth it inside a grouted frame?
Grout holds moisture against anything buried in it, and the 430 is galvanized steel, which is the reason to use it over bare steel in a wet pour or an exterior frame. The finish is H2H mechanical galvanized.
