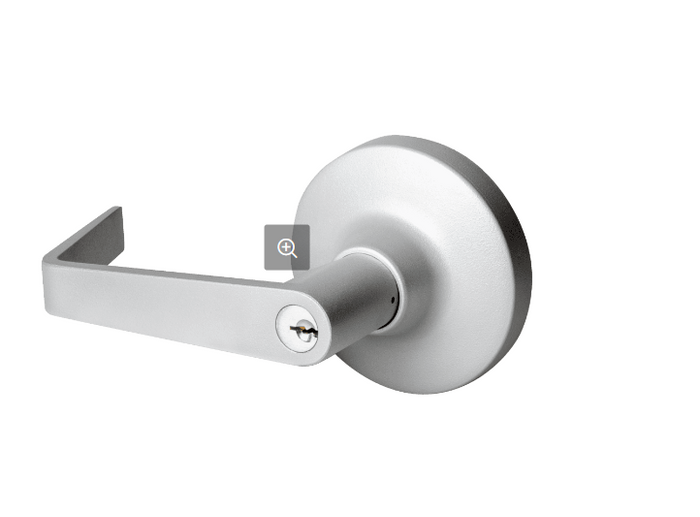

Hager 47KE Device Trim with Withnell Lever Schlage C Keyway in Satin Stainless Steel

Hager 47KE Exit Device Trim with Withnell Lever and Schlage C Keyway in Satin Stainless Steel

(No reviews yet) Write a Review

Model: 47KE-WTN-ALM
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$305.00
$159.32
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 47KE Device Trim with Withnell Lever and Schlage C Keyway in Satin Stainless Steel

Professional Commercial Door Trim Solution

The Hager 47KE Device Trim features the Withnell lever design with Schlage C keyway compatibility for commercial applications. This entrance trim allows key locking or unlocking operation with 1-3/4" door thickness compatibility. The unit features steel body construction with stainless steel rose in US32D finish and 3-1/16" projection for optimal ergonomics.

Professional Features & Benefits

  • Door Thickness Compatibility: Designed for 1-3/4" (45 mm) door thickness for standard commercial door applications.
  • Withnell Lever Design: 3-1/16" (78 mm) projection provides comfortable operation with professional appearance.
  • Schlage C Keyway: Conventional cylinder with C keyway standard configuration ensures broad compatibility with existing key systems.
  • Heavy-Duty Construction: Steel body with stainless steel rose in US32D finish provides exceptional durability for commercial applications.
  • Standard Door Preparation: 2-1/8" (54 mm) diameter cross bore with Turtle Prep compatibility per ANSI A156.115 standards.
  • Entrance Function: Function 08 entrance by trim allows key to lock or unlock trim for controlled access applications.
  • Manufacturer Warranty: 5 Years limited warranty for added confidence and protection.
  • Rose Diameter: 3-3/8" (86 mm) rose diameter provides secure mounting and professional appearance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Cylinder and Keyways: Conventional cylinder, Ckeyway - standard on levers and knob
  • Device Type: Physical Appearance
  • Door Thickness: 1-3/4" (45 mm)Finishes
  • Finish Description: Sprayed Aluminum
  • Functions: 08 - Entrance by trim (key locks or unlocks trim)
  • Installation: Commercial
  • Lever Options: Archer, August, Withnell levers, Apollo knob
  • Limited Warranty: 5 Years
  • Mechanical Function: Lever Classroom
  • Notes: 4700 have steel bodies and zinc handles. The exception being US32D which has a stainless steel rose.
  • Projection: 3-1/16" (78 mm) for Archer, 3-3/16" (80 mm) for August, 3-1/16 (78 mm) for Withnell,
  • Standard Door Prep: 2-1/8" (54 mm) diameter (cross bore)

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager device trim products deliver professional-grade reliability with steel body construction and stainless steel rose components engineered for demanding commercial applications. The 5 Years limited warranty provides added confidence for long-term performance. Designed to meet ANSI A156.115 standards where dependable access control is essential.

Support Resources

Manufacturer Resources

Product Specs

Manufacturer:
Hager
Installation:
Commercial
Unit of Measure:
Each
Limited Warranty:
5 Years
Finish Description:
Sprayed Aluminum
Device Type:
Physical Appearance
Mechanical Function:
Lever Classroom
Commercial/Residential:
Commercial
Product Finish:
689/US28
Product Category:
Door Trim and Accessories
Department:
Door Hardware
Product Trim Style:
WTN - Withnell Lever
