Hager 4934 4700 Series Grade 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$47.30

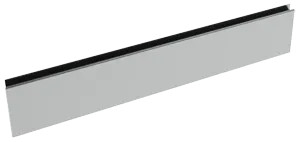

Hager 4934 4700 Series Grade 1 Dogging Plate

Hager 4934 4700 Series Grade 1 Dogging Plate with Hex Key

(No reviews yet) Write a Review

Model: 4934 36 ALM
$47.30
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$47.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 4934 4700 Series Grade 1 Dogging Plate with Hex Key

Professional Exit Device Dogging Solution

The Hager 4934 dogging plate is specifically engineered for use with 4700 Series rim exit devices, providing Grade 1 performance for commercial applications. Constructed from steel or stainless steel materials with multiple finish options including US3, US32D, ALM, and DBZ. Each unit includes both the dogging plate and hex key for complete installation convenience.

Professional Features & Benefits

  • Grade 1 Performance: BHMA Grade 1 rating ensures superior durability and reliability for high-traffic commercial applications.
  • Series-Specific Compatibility: Designed exclusively for Hager 4700 Series rim exit devices for precise fit and optimal performance.
  • Durable Construction: Available in steel or stainless steel materials to withstand demanding commercial use and environmental conditions.
  • Multiple Finish Options: US3, US32D, ALM, and DBZ finishes provide flexibility to match existing door hardware aesthetics.
  • Complete Installation Kit: Includes both dogging plate and hex key for convenient single-package installation solution.
  • Professional Application Focus: Engineered for commercial installations where reliable dogging functionality is essential for operational efficiency.

Technical Specifications

  • Commercial/Residential: Commercial
  • Finishes: US3, US32D, ALM, DBZ
  • Material: Steel or Stainless Steel
  • Notes: For use with 4700 Series Rim exit device, Not for use on fire-rated device
  • Packaging: One (1) each dogging plate and hex key
  • Subcategory: Door Thresholds

Installation & Operation

This dogging plate accessory is designed for use with compatible Hager 4700 Series rim exit devices. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation. Note: Not for use on fire-rated devices.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager dogging plates deliver professional-grade reliability with steel or stainless steel construction rated for Grade 1 commercial performance. Engineered specifically for 4700 Series compatibility, ensuring precise fit and dependable operation in demanding commercial applications where consistent dogging functionality is essential.

Grade 1 rim exit device UL listed for panic and fire-rated hardware. Non-handed and packaged with thru-bolts, slotted strikes, and wood and machine screws.

Manufacturer Resources

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Exit Devices - Accessories
Commercial/Residential:
Commercial
Subcategory:
Door Thresholds
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 4934 36 ALM – Frequently Asked Questions

1) Will the Hager 4934 dogging plate work on my fire-rated exit device?
No. The 4934 dogging plate is not for use on a fire-rated device. Dogging holds the pushbar depressed and the latch retracted, which defeats the positive latching a fire door assembly has to keep, so a fire-rated opening gets a device without mechanical dogging. Use it only on panic (non-fire) 4700 Series rim devices.
2) I need to hold a set of storefront doors unlocked during business hours. Does the 4934 do that?
That is exactly the job. Dogging keeps the pushbar pressed and the latch held back, so the door stays push-pull free all day and relocks when you undog it at close. The 4934 is the hex-key dogging hardware for a Hager 4700 rim device, and the hex key ships in the package. Retail, office lobbies, and school corridors are the usual application. Just confirm the device is not a fire-rated one.
3) Does the Hager 4934 come with the hex key or do I have to buy one separately?
The hex key is included. Each package is one dogging plate and one hex key, so nothing else needs to be ordered to dog the device. Worth keeping one key per building rather than per door, since the same key works the openings you set up the same way.
4) What size and finish do I order the Hager 4934 dogging plate in?
Two sizes, 36 inch and 48 inch, matched to the device length on your door, and four finishes: aluminum (ALM), dark bronze, 605 bright brass, and 630 satin stainless. Every finish is offered in both lengths. Measure the device already on the door, not the door itself, when picking between 36 and 48.
5) Is the Hager 4934 dogging plate rated for high-traffic commercial use?
It carries a BHMA Grade 1 rating and is built in steel or stainless steel, which is the commercial-duty tier for exit hardware. That is the specification a school, hospital, or municipal facility usually writes into the drawing, and it is a commercial part rather than a residential one.
6) I'm standardizing hardware across a building with mixed brass and stainless doors. Can I match the 4934 to both?
Yes. The dogging plate is offered in 605 bright brass and 630 satin stainless alongside aluminum and dark bronze, so a mixed-finish property can be covered from the same part number. 605 and 630 are the standard BHMA finish designations, so they will read the same as the trim already on your openings carrying those codes.
7) Does the dogging plate change the handing of my exit device?
Handing is not a factor. The 4700 Series rim device it goes on is non-handed, so there is no left or right version of the dogging hardware to specify. You pick length and finish and that is the whole decision.
