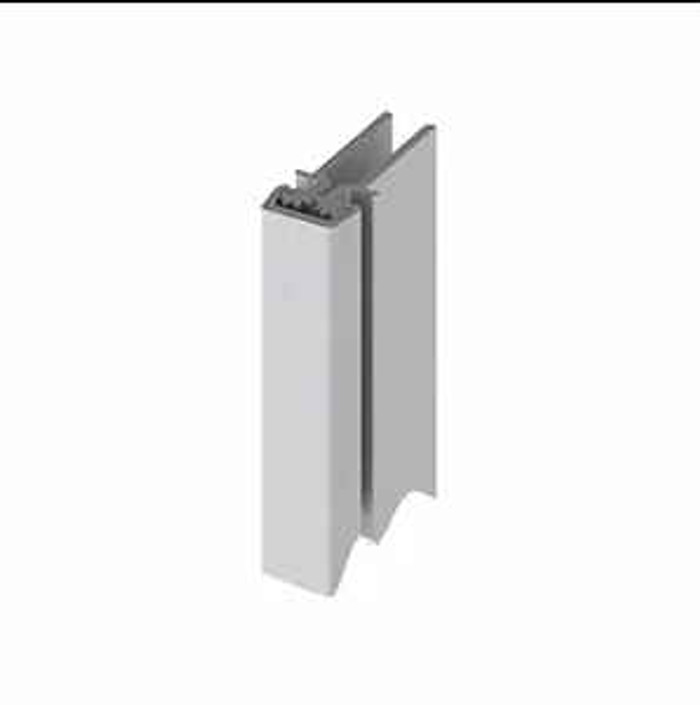

Hager 500048 Series Concealed Leaf Roton Hinge with Sheet Metal Screws, Aluminum Finish

Hager 500048 Series Concealed Leaf Roton Continuous Geared Hinge with Aluminum Finish

(No reviews yet) Write a Review

Model: 50004824CLR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$97.48
$57.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

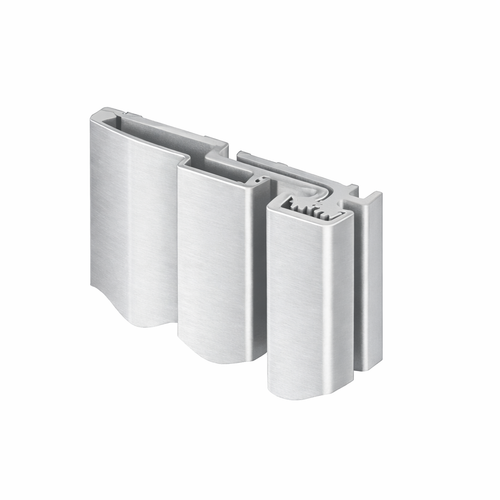

You may also like

Hager 500048 Series Concealed Leaf Roton Continuous Geared Hinge with Aluminum Finish

Professional Continuous Geared Hinge Solution

The Hager 500048 Series Concealed Leaf Roton Hinge delivers superior performance through unique aluminum geared construction that distributes door weight along the full length of the door frame. This continuous geared hinge features 1/16" nominal leaf thickness with 5/16" clearance and includes no.8-18 x 3/4" sheet metal screws for versatile installation. Available in clear anodized satin aluminum finish, this hinge is designed to outperform most other entrance components with lifetime warranty coverage.

Professional Features & Benefits

  • Weight Distribution Design: Unique aluminum geared construction distributes door weight along the full length of the door frame for superior performance and reduced stress points.
  • Heavy-Duty Load Capacity: Bearings spaced to distribute door weight evenly up to 50 lbs for reliable operation in commercial applications.
  • Precision Construction: 1/16" nominal leaf thickness with 5/16" clearance provides optimal fit and smooth operation.
  • Versatile Installation: Can be used for vertical or horizontal applications with alignment ribs for easy installation and proper hinge location.
  • Complete Hardware Package: Includes no.8-18 x 3/4" sheet metal screws for immediate installation on sheet metal or wood applications.
  • Professional Finish: Clear anodized satin aluminum finish provides durability and corrosion resistance for long-term performance.
  • Templated Installation: Hager has developed templated hole patterns for Roton hinge models in standard lengths for consistent installation.
  • Lifetime Warranty: All Roton products have a lifetime warranty for added confidence and protection.

Technical Specifications

  • Subcategory: Continuous Geared Hinges
  • Warranty: All Roton products have a lifetime. When ordering electric Roton, the electric portion of the hinge has a one Year.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager Roton continuous geared hinges deliver professional-grade reliability with unique aluminum geared construction designed to outperform most other entrance components. All Roton products include a lifetime warranty for mechanical components, providing exceptional value and peace of mind. Engineered for demanding commercial applications where dependable performance and superior weight distribution are essential.

Hager's Roton® continuous geared hinge distributes door weight along the full hinge length, minimizing lateral wear in high-traffic applications.

Product Specs

Subcategory:
Continuous Geared Hinges
Warranty:
All Roton products have a lifetime. When ordering electric Roton, the electric portion of the hinge has a one Year.
Product Group:
Door Hinges and Pivots
Product Subgroup:
Continuous Hinges
Product Type:
Concealed Hinges
Product Substrate:
Aluminum
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Hager 50004824CLR – Frequently Asked Questions

1) What lengths does the Hager 500048 Roton continuous geared hinge come in?
The 500048 concealed leaf Roton hinge is offered in 24, 36, 48 and 72 inch lengths. Continuous geared hinges run the full height of the door leaf, so pick the length that matches your door height or the section you are hinging. Hager has developed templated hole patterns for Roton models in standard lengths, which keeps the drilling consistent from opening to opening.
2) How much door weight will the Hager 500048 continuous hinge carry?
Bearings in the 500048 are spaced to distribute door weight evenly up to 50 lbs. Unlike butt hinges that concentrate load at two or three points, the geared aluminum construction spreads the weight along the full length of the frame, which is what reduces lateral wear on high-traffic openings. For doors heavier than that rating, you need a heavier continuous hinge, not this one.
3) What clearance do I need to allow for the Hager 500048 concealed leaf hinge?
Plan on 5/16 inch clearance with a 1/16 inch nominal leaf thickness. That leaf thickness matters on the reveal: the leaves sit against the door and frame faces rather than being mortised like a butt hinge, so the gap between door and frame has to accommodate the geared barrel at 5/16 inch.
4) Does the Hager 500048 Roton hinge come with screws, or do I need to buy fasteners separately?
Fasteners are included. The 500048 ships with no.8-18 x 3/4 inch sheet metal screws, suitable for sheet metal or wood applications. If your frame is a different substrate, such as masonry anchors or machine screws into tapped steel, you will need to source those fasteners yourself.
5) Concealed leaf or full mortise continuous hinge, which one do I want?
The 500048 is a concealed leaf Roton, meaning the geared barrel is hidden when the door is closed and the leaves are concealed in the gap between door and frame. That is the choice when appearance matters or when you want the hinge pin inaccessible from the swing side. A full surface continuous hinge, by contrast, mounts on the face of the door and frame and is the easier retrofit on existing openings that are already drilled and worn. Concealed leaf needs the 5/16 inch clearance to work.
6) Will switching to a Hager Roton continuous hinge fix doors that keep sagging and dragging on the threshold?
That is the usual reason people move to a continuous geared hinge. Standard butt hinges carry the door at two or three points, and in high-cycle openings those points wear and the door drops. The Roton geared design carries the load along the entire height of the frame, minimizing lateral wear. It is a common fix in schools, healthcare corridors, retail entries and multi-tenant residential where the same door swings all day. Keep the door within the 50 lb capacity.
7) What is the Hager 500048 hinge made of, and will it hold up in a humid or coastal building?
Construction is aluminum with a clear anodized satin aluminum finish. Anodizing gives the aluminum a corrosion resistant surface, which is why these are common on aluminum storefront and entrance work. Aluminum also means it will not rust the way a plated steel butt hinge does in a damp environment.
8) Is there an install template or instruction sheet for the Hager Roton hinge?
Hager publishes Roton instruction sheets covering the hole patterns and mounting sequence, and templated hole patterns exist for Roton models in standard lengths. Mark from the template rather than the hinge itself; the alignment ribs then locate the hinge correctly on the door and frame.
