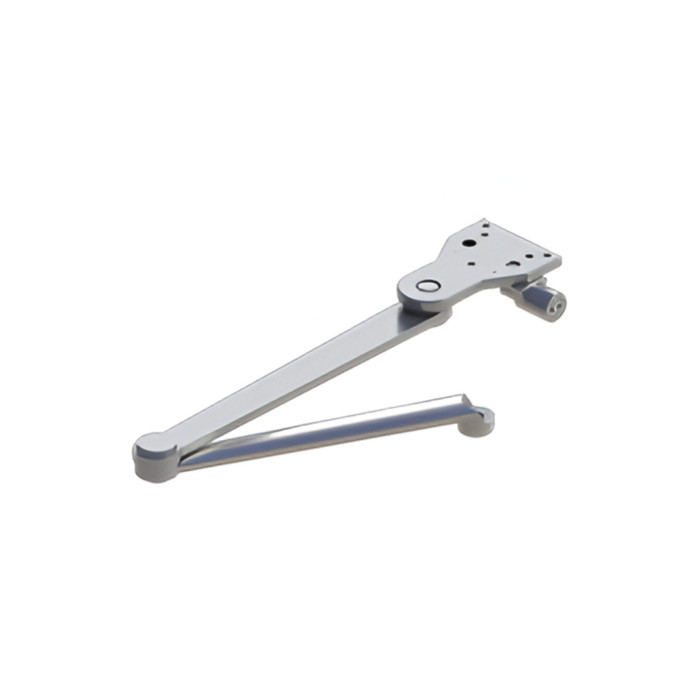

Hager 5906 - 5200/5300 Series Closer Part, Extra Heavy Duty Hold Open Stop Arm

Hager 5906 Extra Heavy Duty Hold Open Stop Arm for 5200/5300 Series Door Closers

(No reviews yet) Write a Review

Model: 5906 BLK
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$221.09
$206.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 5906 Extra Heavy Duty Hold Open Stop Arm for 5200/5300 Series Door Closers

Professional Door Closer Hold Open Solution

The Hager 5906 Extra Heavy Duty Hold Open Stop Arm is engineered specifically for 5200/5300 Series door closers, providing reliable hold open functionality with forged steel construction. This professional-grade closer component features an auxiliary stop in soffit shoe design with plunger hold open mechanism for consistent performance in commercial applications.

Professional Features & Benefits

  • Heavy-Duty Construction: Forged steel material provides exceptional durability and strength for demanding commercial door closer applications.
  • Series Compatibility: Designed specifically for Hager 5200/5300 Series door closers for precise fit and reliable operation.
  • Hold Open Function: Plunger hold open mechanism allows doors to remain in open position when needed for traffic flow or ventilation.
  • Auxiliary Stop Design: Integrated auxiliary stop in soffit shoe provides additional control and positioning options.
  • Expandable Configuration: Can be combined with 5950 spring cushion kit for enhanced performance and customization options.
  • Commercial-Grade Performance: Extra heavy duty rating ensures reliable operation in high-traffic commercial environments.

Technical Specifications

  • Commercial/Residential: Commercial
  • Material: Forged steel
  • Series: 5200/5300 Series
  • Subcategory: Door Closers Parts and Accessories

Installation & Operation

This closer arm component is designed for use with compatible Hager 5200/5300 Series door closers. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager door closer components deliver professional-grade reliability with forged steel construction engineered for demanding commercial applications. The 5906 stop arm provides precise hold open functionality specifically designed for 5200/5300 Series closers, ensuring dependable performance where consistent door control is essential.

BHMA certified Grade 1 door closer with full-cover case. Available with parallel arm, top jamb, and slide track configurations.

Product Specs

Subcategory:
Door Closers Parts and Accessories
Series:
5200/5300 Series
Product Group:
Door Controls
Product Subgroup:
Door Closers Parts and Accessories
Commercial/Residential:
Commercial
Product Type:
Closer Arms & Stops
Product Model:
5906
Product Category:
Door Controls
Department:
Door Hardware

Hager 5906 BLK – Frequently Asked Questions

1) Will the Hager 5906 hold open stop arm work on my Hager 5200 or 5300 Series door closer?
Yes. The 5906 extra heavy duty hold open stop arm is built for Hager 5200 and 5300 Series closers, so it mates with that closer body and shoe prep directly. It will not fit closers from other Hager series or other manufacturers, so confirm the closer body stamping before ordering.
2) What does the 5906 arm actually do differently from a standard closer arm?
Two things a standard arm does not. It has a plunger hold open that keeps the door parked open for traffic flow or ventilation, and it has an auxiliary stop built into the soffit shoe that limits how far the door swings. So you get door control and overswing protection in one arm instead of adding a separate floor or wall stop.
3) Should I use a hold open stop arm or a regular arm with a separate wall stop?
Use the 5906 when the frame or wall gives you nowhere good to mount a stop, or when you want hold open and overswing control from one piece of hardware. A regular arm plus a floor or wall stop is the better route on openings that must never be held open, such as fire rated doors where the closer has to shut the door on every cycle. The 5906's plunger hold open is a mechanical hold, not a fire release device.
4) Can I add spring cushion to the Hager 5906 stop arm?
Yes. The 5906 accepts the Hager 5950 spring cushion kit, which cushions the door at the stop point instead of letting it hit a hard stop. That is a separate item you order alongside the arm, not something included with it.
5) Is a forged steel closer arm strong enough for a high-abuse opening like a school corridor or warehouse door?
That is exactly what the 5906 is aimed at. It is forged steel rather than cast, carries an extra heavy duty rating, and is specified as a commercial component, used in schools, healthcare, retail, industrial, government and multi-tenant buildings. On openings where people push the door past its intended swing, the integral stop is the part doing the work.
6) Can I retrofit the 5906 onto a 5200 Series closer that is already installed?
Yes, the 5906 is sold as a replacement or upgrade arm for 5200 and 5300 Series closers. Follow the closer's own installation instructions for arm changeover, since the soffit shoe mounts to the frame and the template position differs from a plain regular arm. Hager publishes the 5100 track arm installation sheet and the Door Controls catalog if you need the templating reference.
7) Does the Hager 5906 include the door closer itself?
No. The 5906 is the arm assembly only, a closer part rather than a complete closer. You need a Hager 5200 or 5300 Series closer body on the door for it to work with.
8) What finishes does the Hager 5906 stop arm come in?
Three: aluminum (ALM), black, and dark bronze. Pick the one that matches the closer body already on the opening, since the arm sits in plain view above the door and a mismatched arm is obvious from the corridor.
