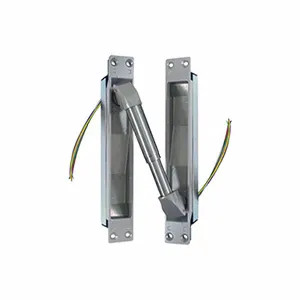

Hager 2-679 Heavy Duty Power Transfer Conductor with 10-Wire Capacity

Hager 2-679 Heavy Duty Power Transfer Conductor with 10-Wire Capacity

Professional Power Transfer Solution for Fire-Rated Door Applications

The Hager 2-679 Heavy Duty Power Transfer Conductor provides a concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door. Designed for 1-3/4" thick doors with up to 180-degree opening swing capability, this UL 10C Listed unit supports up to 3-hour fire ratings and handles (10) 24AWG wires with maximum rating of 24VDC, 1A. The all-metal construction features stainless steel tubular wire transfer and heavy cast housing for superior durability in high-traffic commercial applications.

Professional Features & Benefits

• Door Compatibility: Designed for 1-3/4" thick doors with 0-180 degree opening swing capability and up to 3/4" offset pivots for versatile installation options.
• Heavy-Duty Construction: All-metal design with stainless steel tubular wire transfer and heavy cast housing with steel back boxes provides weather and tamper resistance.
• Electrical Capacity: Supports (10) 24AWG wires with maximum rating of 24VDC, 1A for comprehensive power and signal transfer requirements.
• Fire Rating Compliance: UL 10C Listed for up to 3 hours on fire rated doors and frames, classified according to Uniform Building Code Standard 7-2.
• Serviceable Design: Removable transfer allows the door to be serviced easily without removing the door from the opening for reduced maintenance downtime.
• High-Traffic Performance: Engineered specifically for high-traffic openings where reliable power transfer is essential for continuous operation.
• Mortise Installation: Mortise door and frame installation provides secure mounting and professional appearance.
• Manufacturer Warranty: One-year warranty coverage for added confidence and protection.
• All metal design with stainless steel tubular wire transfer and heavy cast housing with steel back boxes provide weather and tamper resistance when the door is open or closed
• The removable transfer allows the door to be serviced easily without removing the door from the opening.
• Mortise door and frame installation

Technical Specifications

• Applications: Provides a concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door; Ideal for high traffic openings
• Certifications: UL 10CListed for up to 3 hours on fire rated doors and frames; UL Listed Miscellaneous Fire Door Accessories; Classified according to Uniform Building Code (UBC) Standard 7-2, Fire Test of Door Assemblies (1997)
• Commercial/Residential: Commercial
• Finishes: 2-679-0623 - ALM; 2-679-0624 - DBZ
• Notes: 0-180° opening swing with up to 3/4” (19 mm) offset pivots; 0-180° opening swing with up to 5” wide butt hinges; 0-130° opening swing with up to 5-1/2” (140 mm) wide butt hinges; 0-130° opening swing with up to 6” (152 mm) wide butt hinges; Not compatible with center hung doors, swing clear hinges, pocket pivots, butt hinges larger than 6” (152 mm), and 1-1/2” (38 mm) offset pivots
• Size: 9" Height; 1-1/4" Width; 1-5/8" Depth
• Subcategory: Door Position Switches & Alarms
• Warranty: One-year

Installation & Operation

1. Verify door thickness is 1-3/4" and opening swing requirements are within 0-180 degrees with compatible hinge or pivot specifications.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Use manufacturer templates to mark mortise locations on both door and frame for precise alignment of transfer components.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the 24VDC, 1A application.
5. Install the heavy cast housing and steel back boxes ensuring proper alignment for smooth door operation throughout the full swing range.
6. Test transfer operation through complete door swing cycle and verify all electrical connections maintain continuity.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• High-Traffic Commercial Entrances
• Fire-Rated Door Assemblies
• Emergency Exit Compliance Systems

Why Choose Hager Quality?

Hager power transfer products deliver professional-grade reliability with all-metal construction and stainless steel components rated for demanding commercial applications. UL 10C Listed for up to 3-hour fire ratings with one-year warranty coverage. Engineered specifically for high-traffic openings where dependable power transfer performance is essential for continuous security system operation.

Support Resources

• Commercial Hinges Catalog 2024 (PDF)
