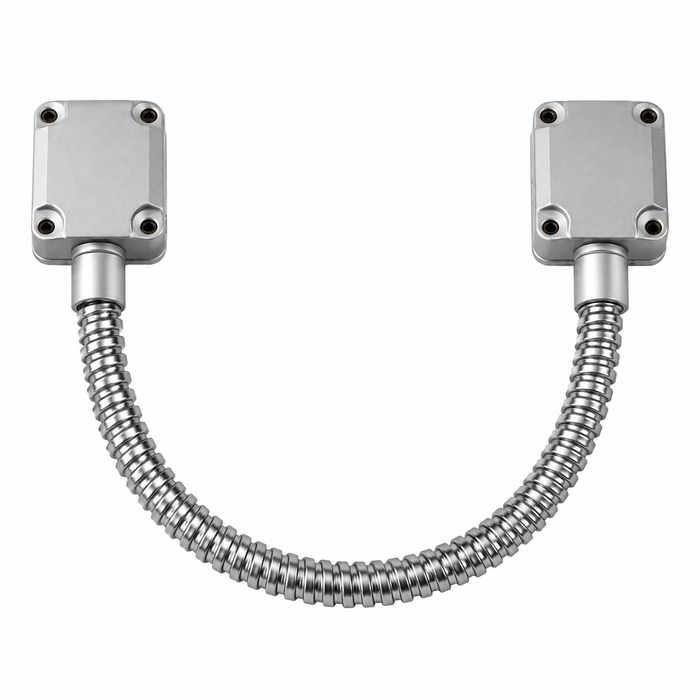

RCI Heavy-Duty Flex Door Loop with 16-Conductor Capacity - 24" Silver Electronic Access Control Wire Transfer

RCI Heavy-Duty Flex Door Loop with 16-Conductor Capacity - 24" Silver Electronic Access Control Wire Transfer

(No reviews yet) Write a Review

Model: 9509-12S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$46.00
$43.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RCI Heavy-Duty Flex Door Loop with 16-Conductor Capacity - 24" Silver Electronic Access Control Wire Transfer

Professional Wire Transfer Solution for Electronic Access Control Systems

The RCI Heavy-Duty Flex Door Loop provides reliable wire transfer for electronic access control applications with 16-conductor capacity in a 24" silver finish. This surface-mounted flex loop accepts 16-conductor 22 gauge or 8-conductor 18 gauge wiring and is designed for installation on the hinge side of doors requiring electronic connectivity between door and frame.

Professional Features & Benefits

  • High Conductor Capacity: Accommodates up to 16-conductor 22 gauge or 8-conductor 18 gauge wiring for complex electronic access control installations.
  • Heavy-Duty Construction: Engineered for demanding commercial applications with increased conductor capacity and durable flex loop design.
  • Surface Mount Installation: Mounts directly to hinge side surfaces for straightforward installation without door modification.
  • 24" Length: Provides adequate reach for standard door and frame configurations while maintaining proper flex characteristics.
  • Professional Silver Finish: Neutral silver finish complements various door hardware and architectural finishes.
  • Electronic Access Control Integration: Specifically designed for power transfer applications in electronic access control systems.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Mounting Method: Surface
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Dimension: 24"
  • Product Finish: Silver
  • Product Group: Electronic Access Controls
  • Product Subgroup: Controllers, Power Supplies and Transformers
  • Product Type: Door Cords & Wire Transfers
  • Subcategory: Power Transfers

Installation & Operation

  1. Verify electrical requirements and wire gauge compatibility. Confirm 16-conductor 22 gauge or 8-conductor 18 gauge wiring specifications match application needs.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the flex loop on the hinge side of the door and frame ensuring adequate clearance for door operation and wire routing.
  4. Route and connect wiring through the flex loop according to manufacturer specifications and system wiring diagrams.
  5. Secure all connections and verify proper wire management to prevent binding or stress during door operation.
  6. Restore power and test door operation through full range of motion. Verify all electronic functions operate properly without wire stress or interference.
  7. Complete final inspection and document installation. Refer to manufacturer documentation for complete installation specifications and wire capacity guidelines.

Professional Applications

  • Commercial Building Access Control Systems
  • Electronic Lock Power Transfer
  • Card Reader and Keypad Connectivity
  • Door Position Switch Wiring
  • Exit Device Monitoring Systems
  • Integrated Security System Connections
  • Multi-Point Electronic Hardware Installations

Why Choose RCI Quality?

RCI electronic access control components deliver professional-grade reliability with heavy-duty construction designed for demanding commercial applications. This flex door loop provides the increased conductor capacity and durable performance required for complex electronic access control installations where dependable wire transfer is essential.

Manufacturer Resources

RCI Product Catalog

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Product Type:
Door Cords & Wire Transfers
Subcategory:
Power Transfers
Commercial/Residential:
Commercial
Electronic:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Finish:
Silver
Product Dimension:
24"
Mounting Method:
Surface
Product Category:
Electronic Access Controls
Department:
Door Hardware

RCI 9509-12S – Frequently Asked Questions

1) How many wires can an RCI flex door loop carry between the door and frame?
The RCI heavy-duty flex door loop takes up to 16 conductors of 22 gauge, or 8 conductors of 18 gauge if you need the heavier wire for lock power. That capacity is what separates it from a basic loop: it lets you run an electric strike or lock, a door position switch, a request-to-exit signal from an exit device, and a reader circuit through a single transfer instead of pulling two loops on one opening.
2) Does installing an RCI flex door loop require machining the door or frame?
No machining. The flex loop is surface mounted, so it fastens to the face of the door and frame on the hinge side and needs no through-bore or mortise cut. That is the practical reason to pick a loop over a concealed electric power transfer: on a retrofit where the door is already hung and you do not want to pull it, drill the door for a concealed transfer, or send it out for prep, the loop goes on with the door in place.
3) Can I run electric strike power and a card reader through the same RCI door loop?
Yes, and that is what the 16-conductor capacity is for. Lock or strike power, door position switch, request-to-exit from an exit device, and reader or keypad circuits can share the one loop as long as the total conductor count fits: 16 at 22 gauge, or 8 at 18 gauge when the lock draw calls for heavier wire. Mixing gauges means budgeting the space accordingly and following your system wiring diagram for separation of power and signal runs.
4) Should I use a surface flex door loop or a concealed electric power transfer?
It comes down to whether the opening is a retrofit or new prep, and whether the loop can be seen. A surface flex loop mounts on the hinge side with no door or frame modification, which makes it the fast choice on existing openings and back-of-house doors. A concealed transfer hides the wiring inside the hinge edge but requires the door and frame to be mortised for it, which usually means pulling the door. If the opening is visible and finish matters, the concealed route wins; if you need the door back in service the same day, the loop does.
5) Which side of the door does an RCI flex loop mount on?
Hinge side, always. The loop has to sit where the door and frame stay closest together through the swing, so it anchors near the hinge edge on the door and on the adjacent frame face. Mount it at the lock edge or the head and it will stretch and fail. Leave enough clearance at the anchor points that the loop bends rather than binds when the door opens fully.
6) Does the RCI flex door loop come with wire in it, or do I pull my own?
The loop is the transfer housing, not a wired assembly. It is an installation accessory that carries and protects your conductors across the hinge gap, so you route your own wire through it to the capacity it takes: 16 conductors at 22 gauge or 8 at 18 gauge. Plan the wire pull as part of the job, including terminations at the frame junction and at the electrified hardware.
7) What finish does the RCI door loop come in, and will it match my other door hardware?
Silver is the finish on the flex loop. It is a neutral tone that reads close to aluminum and satin chrome trim, which is the common case on commercial hollow metal and aluminum openings. On a fleet of doors where the loop is visible, standardizing on the same loop across the building keeps the hinge edges looking consistent rather than mixing finishes door to door.
8) Is the RCI flex door loop rated for commercial use or is it a residential part?
Commercial. The heavy-duty flex loop is built for commercial access control openings, which is where a wire transfer sees hundreds of cycles a day and the conductors flex every single time the door moves. Its conductor capacity, 16 at 22 gauge, is sized for multi-point electronic hardware rather than a single residential strike.
