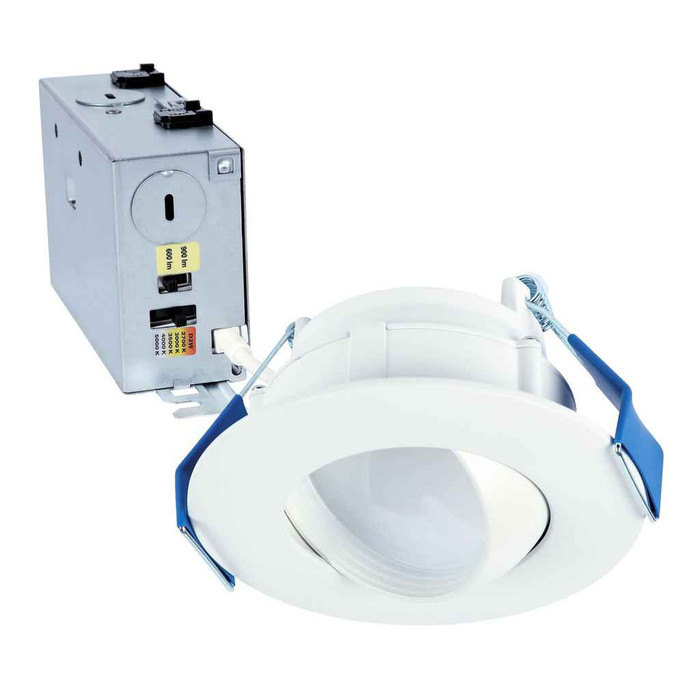

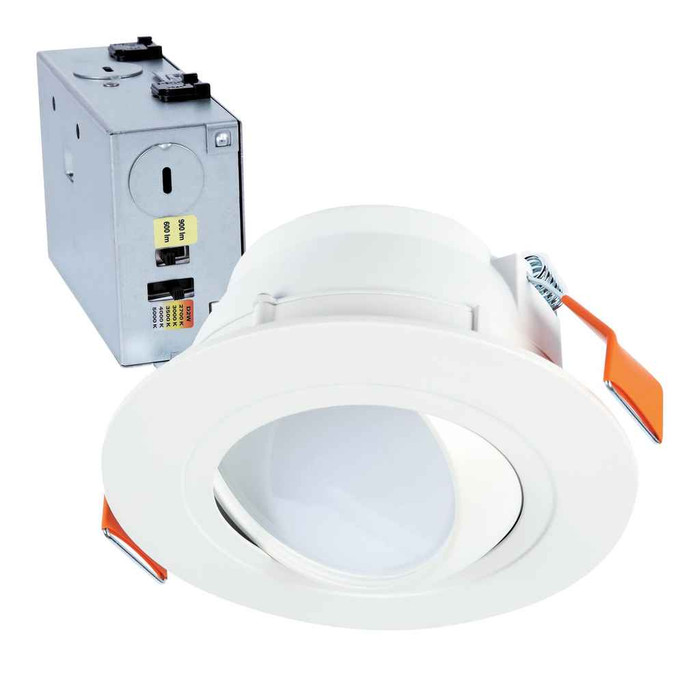

HALO RA Adjustable Baffle Canless LED Recessed Downlight

HALO RA Adjustable Baffle Canless LED Recessed Downlight 5000K with Lumen Select Switch

(No reviews yet) Write a Review

Model: RA4LS9FSD2W1EWHDM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.47
$52.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

HALO RA Adjustable Baffle Canless LED Recessed Downlight

Professional canless LED downlight with adjustable brightness and low-glare illumination

The HALO RA Adjustable Baffle Canless LED Recessed Downlight delivers professional-grade lighting performance with selectable brightness options and advanced dimming capabilities. This canless LED downlight features a recessed baffle trim with curved diffuse lens for low-glare, even illumination at 5000K color temperature. Engineered for 50,000 hours of maintenance-free operation in damp locations with 120V input and compatibility with phase cut dimmers.

Professional Features & Benefits

  • Lumen Select Switch: Choose between 600 or 900 lumens to match your specific lighting requirements and energy efficiency goals
  • Advanced Dimming Capability: Dims to 5% with compatible phase cut LE/TE dimmers for precise light control and ambiance
  • Low-Glare Design: Recessed baffle trim with curved diffuse lens ensures comfortable, even illumination without harsh shadows
  • Canless Installation: Simplified recessed mounting eliminates the need for separate housing, reducing installation time and complexity
  • 5000K Daylight Color: Crisp, natural daylight color temperature enhances visibility and color rendering for professional applications
  • Extended Lifespan: 50,000 hours of maintenance-free operation reduces replacement costs and service interruptions
  • Damp Location Rated: Suitable for bathrooms, covered outdoor areas, and other moisture-prone environments

Technical Specifications

  • Amperage Rating: 0.07A at 120V
  • Arra Compliant: No
  • Brightness: Lumen Select Switch - 600/900 lumens (nominal)
  • Color Temperature: 5000K
  • Department: Electrical
  • Dimming: Dims to 5% (phase cut LE/TE) with compatible dimmers; 120V input
  • Lamp Type: LED
  • Lens Trim: Recessed baffle trim, curved diffuse lens for low-glare, even illumination
  • Life: 50,000 hrs of maintenance-free operation in damp locations
  • Marketpro Us Flag: Yes
  • Mounting Method: Recessed
  • Voltage Rating: 120V

Professional Applications

  • Residential kitchens, bathrooms, and living spaces requiring adjustable brightness
  • Commercial offices and conference rooms with dimming control requirements
  • Retail establishments needing flexible lighting levels throughout the day
  • Healthcare facilities requiring precise light control and low-glare illumination
  • Hospitality venues with ambiance lighting needs
  • Educational facilities with variable lighting requirements
  • Professional workspaces requiring daylight color temperature

Why Choose HALO Quality?

HALO delivers reliable LED lighting solutions engineered for 50,000 hours of maintenance-free operation with damp location rating for versatile installation. The precision-engineered baffle trim and curved diffuse lens ensure consistent, professional-grade illumination performance you can trust for demanding applications.

Manufacturer Resources

Product Specs

Amperage Rating:
0.07A at 120V
Arra Compliant:
No
Brightness:
Lumen Select Switch - 600/900 lumens (nominal)
Department:
Electrical
Lamp Type:
LED
Life:
50,000 hrs of maintenance-free operation in damp locations
Marketpro Us Flag:
Yes
Mounting Method:
Recessed
Voltage Rating:
120V
Product Group:
Lighting
Light Temperature:
5000K
Product Type:
Recessed Trim
Installation Location:
Indoor/Outdoor
Indoor/Outdoor:
Indoor/Outdoor
Product Subgroup:
Recessed Lighting

Halo RA4LS9FSD2W1EWHDM – Frequently Asked Questions

1) Can the HALO RA canless downlight be installed in a bathroom or under a covered porch?
Damp location rated, so a bathroom ceiling, a shower area outside the direct spray, or a covered porch or soffit are all within its rating. The spec sheet lists it for indoor/outdoor installation and rates the LED for 50,000 hours of maintenance-free operation in damp locations. Damp is not wet, though: an open deck or anywhere it takes direct rain or hose spray needs a wet-location fixture instead.
2) Do I need to buy a separate housing or can-kit for the HALO RA downlight?
No housing needed. The RA is a canless recessed downlight, so the LED, driver and baffle trim go in as one unit through the ceiling cutout and wire straight to a 120V branch circuit. That is the practical difference from a traditional recessed light, where you buy an IC-rated can plus a separate trim. On a remodel ceiling it means one hole and no attic access to hang a frame-in housing.
3) What size ceiling opening does the HALO RA canless downlight come in, 4 inch or 6 inch?
Both. The RA adjustable baffle downlight is sold in a 4 inch version (RA4LS9FSD2W1EWHDM) and a 6 inch version (RA6LS9FSD2W1EWHDM). If you are adding to an existing layout, match the aperture already in the ceiling: 6 inch is the older standard in most homes and offices, 4 inch is the common choice for tighter spacing, closets, hallways and newer builds.
4) Will the HALO RA downlight work with my existing dimmer switch?
It needs a phase cut dimmer, leading edge or trailing edge, and with a compatible one it dims down to 5 percent on a 120V circuit. An old incandescent rotary or slide dimmer is still a phase cut device, but the low LED load (0.07A per fixture) is what causes flicker and drop-out at the bottom of the range. Running a handful of these on a dimmer rated for LED loads is the way to get the full dim range. It is not a 0-10V or DALI fixture, so do not wire it to a low-voltage control channel.
5) Is the HALO RA downlight color temperature adjustable, or is it fixed at 5000K?
Fixed at 5000K. The RA adjustable baffle model has a selectable lumen switch, not a color select switch, so every fixture puts out the same 5000K daylight-white light. That matters if you are adding to an existing ceiling: mixing 5000K with 2700K or 3500K fixtures in the same room reads as a mismatch immediately. For a warmer look in a living space or hospitality setting, a 5000K fixture is the wrong pick; spec it where you want crisp daylight, such as kitchens, garages, baths, workshops and back-of-house.
6) How many HALO RA canless downlights can I put on one 15 amp circuit?
Each RA downlight draws 0.07A at 120V. Load alone is negligible against a 15A circuit, so the real limits are the 80 percent continuous-load rule on the breaker and, more often, the dimmer's own minimum and maximum load rating. Check the dimmer spec before you fill a room, since low-wattage LED loads are what trip up phase cut dimmers, not the breaker.
7) Can I use the HALO RA canless downlight on a federally funded or ARRA project?
No. The RA downlight is not ARRA compliant, so it does not meet Buy American requirements on projects carrying that condition. If you are buying for a government, public school, or federally funded institutional job with a domestic sourcing clause, this fixture will not satisfy the spec and you need a compliant alternative.
8) Is the HALO RA downlight worth standardizing on across a building for maintenance?
For a property manager or MRO buyer, the case is the 50,000 hour rated life and the fact that the LED, driver and trim are one sealed canless unit. There are no lamps to stock and no separate trims to match, and the same fixture covers dry rooms and damp ones like baths and covered entries. The catch to plan around: it is a fixed 5000K daylight fixture, so standardizing on it means the whole building reads daylight-white, and when a unit does fail at end of life you replace the entire fixture rather than a lamp.
9) What else do I need to order to install HALO RA canless downlights?
The fixture is a self-contained 120V canless unit, so beyond the downlights themselves you are looking at the 120V branch wiring and, if you want the dim range, a phase cut LE/TE dimmer rated for low LED loads. Decide the aperture first, 4 inch or 6 inch, since that sets your ceiling cutout, and set the 600/900 lumen switch per fixture before it goes up, because reaching it after the trim is seated means pulling the light back out.
