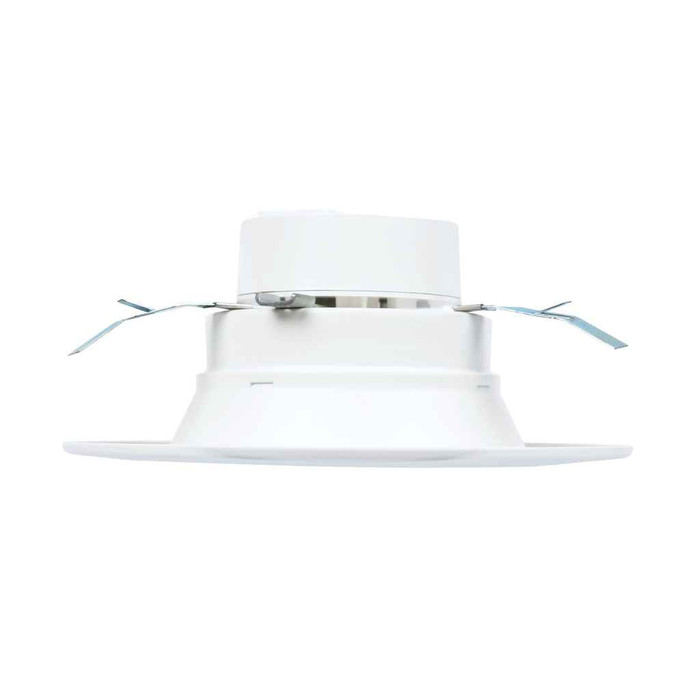

HALO RL56 LED Retrofit Downlight 5/6" Lumens Options Selectable CCT with Dim to Warm

HALO RL56 LED Retrofit Downlight 5/6" with Selectable Lumens and Dim to Warm Technology

(No reviews yet) Write a Review

Model: RL56LS9FSD2W1EWH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.41
$34.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

HALO RL56 LED Retrofit Downlight 5/6" with Selectable Lumens and Dim to Warm Technology

Professional LED retrofit solution with advanced dimming capabilities

The HALO RL56 LED Retrofit Downlight delivers professional lighting performance for 5/6" recessed applications with selectable lumen output and innovative Dim to Warm technology. This 120V LED retrofit solution features selectable lumen options of 600/900 lumens for 4" applications and 900/1200 lumens for 6" installations, providing versatile illumination control for residential and commercial spaces.

Professional Features & Benefits

  • Selectable Lumen Output: Choose between multiple lumen levels (600/900 for 4", 900/1200 for 6") to match specific lighting requirements and energy efficiency goals.
  • Dim to Warm Technology: Advanced dimming capability allows color temperature adjustment from 3000K down to 1800K using standard dimmers for enhanced ambiance control.
  • 5000K Base Color Temperature: Provides crisp, daylight-quality illumination ideal for task lighting and general illumination applications.
  • 5/6" Retrofit Design: Universal compatibility with existing 5" and 6" recessed housings eliminates the need for housing replacement.
  • 120V Operation: Standard voltage compatibility ensures easy integration with existing electrical systems without additional transformers.
  • LED Technology: Long-lasting LED light source delivers energy efficiency and reduced maintenance compared to traditional incandescent or CFL alternatives.
  • Recessed Mounting: Clean, flush installation provides unobtrusive lighting that integrates seamlessly with ceiling architecture.

Technical Specifications

  • Arra Compliant: No
  • Color Temperature: 5000K
  • D2w Dim To Warm Technology Included: use your dimmer to warm color temperature from 3000K-1800K
  • Department: Electrical
  • Lamp Type: LED
  • Marketpro Us Flag: Yes
  • Mounting Method: Recessed
  • Product Diameter: 5/6 Inch
  • Selectable Lumen Options Available: 4" 600/900 Lumens, 6" 900/1200
  • Voltage Rating: 120V

Professional Applications

  • Residential Kitchen and Bath Lighting
  • Commercial Office Spaces
  • Retail Display Areas
  • Hospitality and Restaurant Environments
  • Healthcare Facility Task Lighting
  • Educational Institution Classrooms
  • Professional Service Offices

Why Choose HALO Quality?

HALO LED retrofit downlights combine proven reliability with advanced lighting technology, delivering professional-grade performance for demanding applications. The selectable lumen output and Dim to Warm technology provide exceptional versatility, while the 120V operation and recessed mounting ensure straightforward installation and long-term dependability.

Manufacturer Resources

Spec Sheet

Product Specs

Arra Compliant:
No
Department:
Electrical
Lamp Type:
LED
Marketpro Us Flag:
Yes
Mounting Method:
Recessed
Product Diameter:
5/6 Inch
Selectable Lumen Options Available:
4" 600/900 Lumens, 6" 900/1200
Voltage Rating:
120-277V
Product Group:
Lighting
Light Temperature:
5000K
Product Type:
LED Retrofit Module
Installation Location:
Indoor/Outdoor
Indoor/Outdoor:
Indoor/Outdoor
Product Subgroup:
Recessed Lighting

Halo RL56LS9FSD2W1EWH – Frequently Asked Questions

1) What voltage does the HALO RL56 downlight run on, and can I use it on a 277V commercial circuit?
The RL56 carries a 120-277V rating, so it runs on standard 120V residential branch circuits and on 277V lighting circuits common in commercial buildings. No separate transformer or driver is needed between the circuit and the module.
2) Which lumen version of the HALO RL56 should I order for a 6 inch can versus a 4 inch opening?
Two lumen builds are sold. The 900/1200 lumen module, MPN RL56LS9FSD2W1EWH, is the one for 6 inch installations. The 600 lumen module, MPN RL56069FSD2W1EWH, covers the lower end, with 600/900 lumens listed for 4 inch applications. Output is selectable on the module, so one part covers two levels and you set it at install rather than stocking two SKUs per ceiling.
3) How does Dim to Warm work on the HALO RL56, and do I need a special dimmer?
Dim to Warm is built into the RL56 and works off your dimmer. As you dim, the color temperature warms from 3000K down to 1800K, so low light levels go amber rather than staying flat and grey. No proprietary control or extra wire is required, the dimming line does the work. This is the behavior a hospitality or restaurant owner is usually after when they say they want the lights to feel like incandescent at night.
4) What color temperature does the HALO RL56 put out at full brightness?
5000K at full output, a crisp daylight tone that suits task areas, back of house, garages, and job site style illumination. If you want the light to sit warm at full brightness, this is not that module, its warmth only comes on as you dim down through the 3000K to 1800K range. For a property manager matching a lobby full of 2700K or 3000K trims, the full-output appearance will read noticeably cooler than the existing fixtures.
5) Can the HALO RL56 downlight be used in a covered porch, soffit, or other outdoor location?
Yes. The RL56 is rated for indoor and outdoor installation locations, so it can go into exterior soffit and covered entry cans as well as interior ceilings. It still needs a housing suited to the location, the module itself is the retrofit light source going into the can you already have.
6) Is the HALO RL56 retrofit downlight ARRA compliant for a federally funded job?
No. The RL56 is not ARRA compliant. If your project carries a Buy American or ARRA sourcing requirement, this module will not satisfy it and you should be specifying against that requirement before you order for the job.
7) Can I standardize one HALO RL56 part number across mixed 5 inch and 6 inch cans in a building?
Yes, and that is the practical reason to pick it. One 5/6 inch module covers both can sizes, and selectable output means the same part can be set to the level a given room needs instead of ordering a distinct wattage per space. For a facility with mixed ceilings, that collapses the retrofit down to a short parts list, with the 900/1200 build carrying the higher output for the 6 inch openings.
8) What light source is in the HALO RL56, and does it need a lamp replaced later?
The RL56 uses an integral LED source, not a screw in lamp. There is no bulb to restock or change out, the module is the light engine and the whole assembly is what gets serviced at end of life. For MRO buyers that removes lamp inventory from the closet for every can it goes into.
