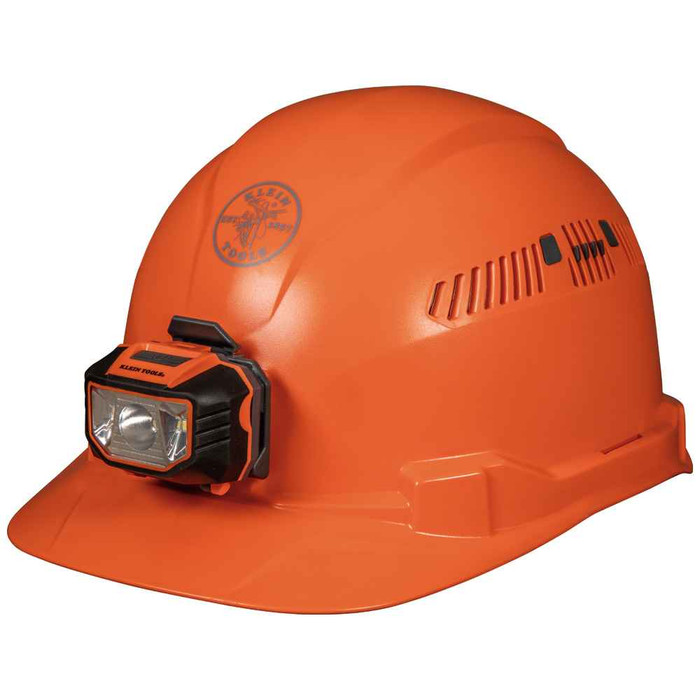

Hard Hat, Vented, Orange Cap Style with Headlamp
60901 - spec sheet
Warnings
- Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all Hard Hats and Accessories before each use. Failure to follow these warnings and instructions may result in serious bodily injury or death.
Features
- Universal accessory slots on both sides for attaching hearing protection, face shield and more
- Unique suspension system features a flexible open frame design to provide optimal fit and improved air circulation
- This model includes removable Klein Headlamp/Magnetic Worklight (KHH56220) with 3xAAA batteries
- Reverse donning: Suspension can be switched to wear hard hat backwards
- Adjustable vents can be opened or closed for maximum air circulation while meeting stringent safety standards
- Hard hat is Class C, Type 1 with adjustable vents and meets ANSI Z89.1-2014, CSA Z94.1-15; EN397:2012+A1:2012-Lateral Deformation (LD) standards
- Easy, one-handed adjustment with large knob ratchet mechanism even with gloves on and soft neck pad pivots to clear bandana knots and pony tails
- Klein Rechargeable Headlamp (#56034), Alkaline Headlamp, Sweatband, Top Pad, Chin Strap and Suspension System also sold separately
- Safety hard hat has patent-pending accessory mounts on front and back that ensure Klein Headlamps attach securely and precisely, every time — no straps or zip ties needed!
- Breathable, padded sweat-wicking sweatband and top pad improve comfort and are machine washable
60901 - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- 56034, KHHSTRP,
- Accessory Slots:
- Front, Back, and Both Sides
- Batteries:
- 3 x AAA
- Battery Life:
- Up to 10 Hours
- Bulb Type:
- LED
- Color Name:
- Orange
- Configuration:
- Hard Hat w/Light
- Hat Size:
- 6.5 to 8
- Hat Style:
- Cap
- Lumens:
- 150 (High), 50 (Low)
- Overall Height:
- 6.5" (16.5 cm)
- Overall Length:
- 11.5" (29.2 cm)
- Overall Width:
- 8.8" (22.4 cm)
- Replacement Parts:
- KHHSPN, KHHSWTBND, KHHTOPPAD,
- Shell Color:
- Orange
- Shell Lining:
- Padded, Sweat-wicking and Odor Resistant; Machine Washable
- Shell Material:
- PC/ABS
- Standard:
- ANSI Z89.1-2014, CSA Z94.1-15, EN397:2012+A1:2012-Lateral Deformation (LD)
- Suspension:
- 4-point
- Suspension Adjustment:
- Ratchet with Pivot
- Venting:
- Yes
- Department:
- Electrical
- Product Group:
- Safety Equipment
- Product Subgroup:
- PPE & Wearables
- Product Type:
- Type 1
- Product Details:
- Type 1
- Product Material:
- PC/ABS
- Product Weight:
- 1.25 lb (0.6 kg)
Klein Tools 60901 – Frequently Asked Questions
1) Will the Klein 60901 hard hat fit a big head, and how do you adjust it with gloves on?
Hat sizes 6.5 through 8 are covered by the one shell, on a 4-point suspension with a ratchet-and-pivot adjustment. The knob is large enough to turn one-handed in work gloves, and the neck pad pivots so it clears a bandana knot or a pony tail. One size stocked means you can standardize a crew without sorting sizes.
2) Is a vented hard hat like the Klein 60901 safe to wear around live electrical work?
No, not for electrical exposure. The 60901 is a Class C vented hat, and Class C offers no electrical protection by design. It meets ANSI Z89.1-2014, CSA Z94.1-15 and EN397:2012+A1:2012 Lateral Deformation, and it is Type 1, so it is impact rated for blows to the top of the head only. If your scope puts anyone near energized conductors, you need a Class E or Class G non-vented hat instead. Class C is for heat, ventilation, and general struck-by hazards.
3) Does the Klein 60901 come with the headlamp, or do I have to buy the light separately?
The light is in the box. The 60901 ships as a hard hat with a removable Klein headlamp / magnetic worklight, model KHH56220, and the 3 AAA batteries it runs on are included. It is an LED putting out 150 lumens on high and 50 on low, with run time up to 10 hours. Nothing else is required to put it in service.
4) Can I mount a face shield and earmuffs on the Klein 60901 hard hat?
Yes. There are universal accessory slots on both sides for hearing protection, a face shield, and similar attachments, plus accessory mounts on the front and back sized for Klein headlamps, so a light clips on without straps or zip ties. Slots run front, back, and both sides.
5) Can the Klein 60901 be worn backwards for welding or working in a lift?
Reverse donning is supported. The suspension can be switched around so the hat is worn backwards, which is what you want when a hood or a face position gets in the way of the brim.
6) Can I replace just the sweatband or suspension on a Klein 60901 instead of buying a new hat?
Yes, the wear parts are serviceable. The suspension (KHHSPN), sweatband (KHHSWTBND) and top pad (KHHTOPPAD) are all available on their own. The sweatband and top pad are padded, sweat-wicking, odor resistant and machine washable, so on a fleet of hats you launder them rather than replace them, and swap the suspension when the ratchet or the webbing gives out.
7) What do I order if I want a rechargeable headlamp or a chin strap with the Klein 60901?
Both are add-ons. The Klein rechargeable headlamp is 56034 and the chin strap is KHHSTRP. The 56034 replaces the alkaline KHH56220 that ships in the box, so it's the move for crews that don't want to be buying AAA cells. A chin strap is worth adding for lift work, leading edge, or anywhere the hat can be knocked off.
8) Cap style or full brim: which Klein hard hat should I put my crew in?
The 60901 is a cap style, meaning a front brim only. That is the one you want where you're working overhead in tight quarters, in a lift, or under an attachment like a face shield, because nothing catches behind you and the sight line up is clear. A full brim earns its keep outdoors, where the 360 degree brim sheds sun and rain off the neck and ears. Both are worn on the same jobs; the choice is exposure, not protection level.
9) How heavy is the Klein 60901 hard hat for all-day wear?
1.25 lb (0.6 kg) complete, including the headlamp. Overall it measures 11.5 in (29.2 cm) by 8.8 in (22.4 cm) by 6.5 in (16.5 cm), which matters mostly for locker and gang-box storage. The shell is PC/ABS, and the vents open and close so you can dump heat in summer and shut them in cold weather.
10) Is orange the only color the Klein 60901 hard hat comes in?
The 60901 is orange only, in a cap style shell. Orange is the usual pick where crews want high visibility on a roadway or a mixed trade site. If your color code assigns a different color by trade or by role, the 60901 will not carry it, so match the number to the color you need.
