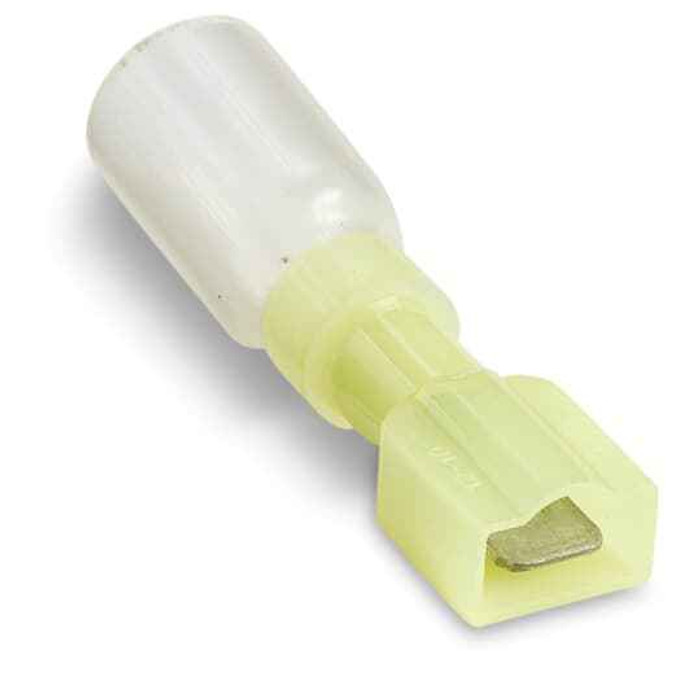

HEAT-SHR MALE-250 TAB 12-10 LEN 1.8
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- Disconnects
- Product Type:
- Heat Shrinkable Insulated Male Disconnect
- Voltage Rating:
- 600 V
- Wire Size:
- 12-10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Yellow
- Product Material:
- Brass
Sta-Kon 10RCS-251TX – Frequently Asked Questions
1) What wire gauge does the Sta-Kon 10RCS-251TX male disconnect crimp onto?
The 10RCS-251TX takes 12-10 AWG wire. The yellow insulation is the standard color code for that gauge range, so on a panel where blue barrels are 16-14 and red are 22-18, yellow tells you at a glance it's the heavy one. Anything smaller than 10 AWG won't fill the barrel and won't hold a proper crimp.
2) What is the difference between a heat shrink disconnect and a standard nylon or vinyl one?
Same crimp and same .250 tab, different insulation. The heat shrink sleeve on the 10RCS-251TX is shrunk down with a heat gun after crimping, so it grips the wire jacket and seals the barrel against moisture. Nylon and vinyl barrel versions are faster to install and fine in a dry enclosure, but they leave the crimp open to humidity, washdown, and salt air. Pick the heat shrink style for outdoor equipment, marine, pumps, and anything that gets sprayed.
3) Do I need a special crimper for the Sta-Kon 10RCS-251TX, and what else to finish the connection?
Two tools. Crimp the brass barrel with an insulated-terminal crimper set for the 12-10 AWG (yellow) die position, then apply heat to shrink the sleeve down over the wire with a heat gun. A lighter or torch will scorch the sleeve. No additional sealant or tape is needed, the adhesive-lined sleeve is the seal.
4) Is the terminal barrel on the Sta-Kon 10RCS-251TX copper or brass?
Brass. That matters for crimp tooling and for conductor pairing: brass barrels take a standard insulated-terminal crimp die and are intended for copper conductors, not aluminum.
5) Are Sta-Kon heat shrink disconnects made in the USA?
Yes, the 10RCS-251TX has a country of origin of the United States, which is the detail institutional and government buyers need when a job carries domestic sourcing language.
