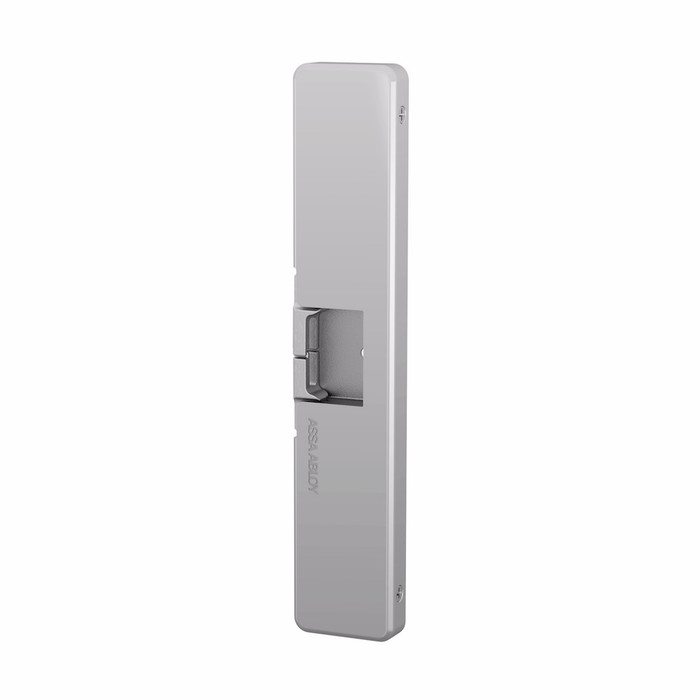

HES 9800 surface mounted electric strike, satin stainless steel finish, front view

HES 9800 Surface Mounted Electric Strike with Starwheel and Interlocking Rim Exit Devices

(No reviews yet) Write a Review

Model: 9800 630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$771.72
$431.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

HES 9800 Surface Mounted Electric Strike

Works with Adams Rite® Starwheel and Interlocking rim exit devices.

The HES 9800 Series is a low-profile, surface mounted electric strike designed to accommodate the Adams Rite 8800 & 8700 Series Rim Exit Devices. The HES 9800 is outdoor rated and exceeds Grade 1 standards for strength and performance. All functions are performed within the ½” thick strike body, which is protected by a sleek stainless steel cover to conceal the mounting screws and provide the most aesthetic appearance.

1/16” and 1/8” spacer plates are provided to accommodate varying door gaps. Place the electric strike on the surface of the frame, align it with the Starwheel or Interlock latching mechanism, and install.

Frame Application

  • Aluminum
  • Hollow Metal
  • Wood

Electrical

  • Dual voltage 12/24 VDC
  • 450 mA at 12 VDC / 250 mA at 24 VDC

Standard Features

  • Compatible with Adams Rite 8800 & 8700 Rim Exit Devices
  • Installs on aluminum, hollow metal and wood frames (wood screws not provided)
  • One 1/16” spacer plate included
  • One 1/8” spacer plate included
  • Decorative cover for sleek look
  • Stainless steel construction
  • Tamper-resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1 million cycles
  • Field selectable fail secure / fail safe
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • SecuriCare five-year, no-fault, no questions asked warranty

Optional Features

  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor

Finishes

  • 630 - Satin Stainless Steel
  • 605 - Bright Brass
  • 606 - Satin Brass
  • 613E - Dark Oxidized Satin Bronze Powder
  • 628E - Satin Aluminum, Clear Anodized Powder
  • 629 - Bright Stainless Steel
  • BSP - Black Suede Powder

Faceplates & Accessories

The HES 9800 is a surface mounted electric strike; no faceplates required.

Accessories

  • 9000-116-XXX 1/16” Spacer plate (Available in 613E, 628E, 630 & BSP finishes)
  • 9000-108-XXX 1/8” Spacer plate (Available in 613E, 628E, 630 & BSP finishes)
  • 9000-MTK Metal template kit
  • SMB Surface mounting box
  • 2001M Plug-in bridge rectifier
  • 2004M ElectroLynx® adapter
  • 2005M3 SMART Pac® III
  • 2006M Plug-in buzzer
  • 9000-ASB-XXX Aluminum Spacer Bracket (Available in 613E, 628E, 630 & BSP finishes)
  • BN-250 Blind Nuts

The HES 9800 ships standard with one 1/16” and one 1/8” spacer plate included in the box. Units ordered in 613E, 628E, 630 & BSP finishes will be made of stainless steel and finished to match. All other finishes will receive black stainless steel spacers. Additional spacer plates can be ordered separately.

Product note: this product is also available as the Adams Rite 7800 Electric Strike.

Certifications & Listings

  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • UL 305 listed
  • RoHS compliant

Product Specs

Series:
9800 Series
Product Group:
Electronic Access Controls
Grade:
Grade 1
Dynamic Strength:
70 ft-lbs
Warranty:
5 Year (10 Year when SMART Pac III)
Endurance Cycles:
1,000,000
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes for Exit Devices
Subcategory:
Electric Strikes
Door Type:
Hollow Metal, Aluminum, Wood
Lock Type:
Exit Device
Outdoor Rated:
Yes
Preload Capable:
No
Windstorm Rated:
No
Commercial/Residential:
Commercial
Electronic:
Yes
Fail-safe / Fail-secure:
Field Selectable
Holding Force:
1,500 lbs
Product Model:
HES-9800
Product Voltage:
12/24 VDC
Face Plate:
9-1/64"
Fire Rating:
No
Latch Specification:
Latchbolt
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Product Width:
9/16"
Department:
Door Hardware
Product Depth:
1-3/4"

HES 9800 630 – Frequently Asked Questions

1) Will the HES 9800 electric strike work with an Adams Rite 8800 or 8700 rim exit device?
That's exactly what the 9800 is built for. It's a surface mounted electric strike made to accommodate the Adams Rite 8800 and 8700 Series rim exit devices, and it works with the Starwheel and interlocking latchbolt styles those devices use. You set it on the face of the frame, line it up with the Starwheel or Interlock latching mechanism, and fasten it. Note that the same strike is also sold as the Adams Rite 7800 electric strike, so if a drawing calls out a 7800 you are looking at the same unit.
2) My door gap is bigger than the strike allows, can the HES 9800 be shimmed out?
Gap adjustment is built in. Every 9800 ships with one 1/16 inch and one 1/8 inch spacer plate in the box, and the strike also has horizontal adjustment so you can dial in alignment with the latch. Extra spacers can be ordered on their own as 9000-116-XXX for the 1/16 inch and 9000-108-XXX for the 1/8 inch, both available in 613E, 628E, 630 and BSP. There is also a 9000-ASB-XXX aluminum spacer bracket for aluminum frame conditions.
3) Can the HES 9800 strike go on an aluminum storefront frame, or is it hollow metal only?
Aluminum, hollow metal and wood frames are all covered. One caution on wood: the wood screws are not supplied with the strike, so plan to bring your own fasteners for that condition. For aluminum, the 9000-ASB-XXX aluminum spacer bracket and BN-250 blind nuts are the accessories that handle the mounting. A 9000-MTK metal template kit is available if you're laying out several openings.
4) Is the HES 9800 fail safe or fail secure, and do I have to pick when I order?
You don't pick at order time. The 9800 is field selectable, so the same unit can be set fail secure (stays locked when power drops) or fail safe (releases when power drops) at install. That matters on egress and on access control jobs where the fire alarm interface decides the mode late in the project. It's also non-handed, so one part number covers left and right hand openings.
5) What voltage and current draw should I size my power supply for on an HES 9800?
Dual voltage, 12 or 24 VDC, drawing 450 mA at 12 VDC or 250 mA at 24 VDC. Running it at 24 VDC nearly halves the current, which is worth doing on long home runs or when several strikes share one supply. HES offers matching plug-in accessories: the 2001M bridge rectifier if you're feeding it AC, the 2005M3 SMART Pac III, the 2004M ElectroLynx adapter, and the 2006M plug-in buzzer.
6) Will an HES 9800 hold up on an exterior door in the weather?
It's outdoor rated and UL 1034 burglary resistant listed as suitable for outdoor use, with a stainless steel body and a stainless cover. Strength numbers are 1,500 lbs static and 70 ft-lbs dynamic, with 1,000,000 cycle endurance, and it carries ANSI/BHMA A156.31 Grade 1 plus UL 294 and UL 305 listings. That combination is what you want on a high traffic exterior entrance rather than an interior-only strike.
7) Is the HES 9800 rated to work if the door is under pressure from a closer or wind load?
No, the 9800 is not a preload capable strike. If the exit device latch is being pushed against the keeper by a strong closer, stack pressure, or a warped door, the strike may not release cleanly. On those openings, either correct the pressure (closer adjustment, weatherstrip, door alignment) or spec a preload rated strike. The 9800 is also not windstorm rated, so it isn't a candidate for a hurricane or tornado shelter opening.
8) What is the difference between the HES 9800 and the Von Duprin 6300 surface mounted electric strike?
Both are surface mounted Grade 1 electric strikes for rim exit devices, so both mount on the face of the frame rather than requiring a frame cutout. The HES 9800 is built specifically for starwheel and interlocking rim latchbolts, is outdoor rated, runs on 12/24 VDC, is field selectable between fail secure and fail safe, and is tested to 1,000,000 cycles with no fire rating. The Von Duprin 6300 is heavy duty, fire rated, and tested to 2,000,000 cycles. The deciding factors are the latch your exit device actually uses and whether the opening carries a fire label.
9) What is the direct equivalent to the HES 9800 electric strike from Adams Rite?
The Adams Rite 7800 electric strike for rim exit devices with starwheel/interlocking latchbolts is the same strike sold under the Adams Rite name. Both are built for rim exit devices whose latching mechanism is a starwheel or interlock rather than a conventional latchbolt keeper, and neither carries a fire rating. If a locksmith or integrator has a spec sheet calling for the 7800, the HES 9800 satisfies it; order whichever part number the drawing names so the submittal matches.
10) Can I use an electric strike on a rim exit device without cutting the frame?
A surface mounted strike like the HES 9800 is the way to avoid frame cutting. All the working parts sit inside a 1/2 inch thick strike body that mounts on the surface of the frame, so there's no mortise prep and no faceplate to specify. A stainless cover hides the mounting screws. The tradeoff versus a mortised rim strike is that you're adding a half inch of body to the face of the frame, so check that the exit device latch and any existing trim clear it. If the opening will take a cut-in strike, a mortised unit sits flush instead.
11) Can I get a signal back to my access control panel when the door latches on an HES 9800?
Monitoring is an option you add at order time, not something you retrofit later, so specify it up front. Two choices: LBM latchbolt monitor, which reports the position of the exit device latchbolt, and LBSM latchbolt strike monitor, which reports both the latchbolt and the strike keeper. If your panel needs to distinguish a latched door from a released strike, LBSM is the one to call out.
12) How much room does the HES 9800 strike take up on the frame face?
Plan for a 9-1/64 inch faceplate dimension, a 9/16 inch width and a 1-3/4 inch depth on the strike body, with the working guts contained in a 1/2 inch thick body under the cover. Those numbers are what decide whether the unit clears the stop, the exit device latch case, and any existing trim on a narrow aluminum stile frame. Measure the flat area of the frame face before ordering on a storefront opening.
13) What finishes does the HES 9800 come in, and do the spacer plates match?
Seven finishes: 605 bright brass, 606 satin brass, 613E dark oxidized satin bronze, 628E satin aluminum clear anodized powder, 629 bright stainless, 630 satin stainless, and BSP black suede powder. Finish choice affects the spacers. Order in 613E, 628E, 630 or BSP and the included spacer plates are stainless finished to match the strike. Order any other finish and the spacers arrive in black stainless, which will show if the door gap forces you to use one. Worth knowing on a bright brass storefront where the shim would be visible.
14) Do I need to buy anything else to install an HES 9800 electric strike?
Out of the box you get the strike, the decorative cover, and both spacer plates (1/16 and 1/8 inch). What you may still need: wood screws if you're going into a wood frame, since those are not supplied; BN-250 blind nuts or the 9000-ASB-XXX aluminum spacer bracket for aluminum frame work; an SMB surface mounting box if there's no way to run wire concealed in the frame; and a 2001M bridge rectifier or 2005M3 SMART Pac III depending on what your power supply puts out. A 9000-MTK metal template kit helps if you're doing a run of openings.
15) For an exterior aluminum storefront door, does the HES 9800 or a Von Duprin rim strike suit the opening better?
The HES 9800 is outdoor rated, installs on aluminum, hollow metal, and wood frames, and is stainless steel with a 1,500 lb static holding force and 70 ft-lb dynamic strength, which is the profile glass front installers usually want on an exterior storefront. It is not fire rated. The Von Duprin 6111 and 6300 are heavy duty Grade 1 rim strikes that are fire rated, which matters on a labeled interior opening rather than a storefront entry. Match the choice to the frame material and whether the door is labeled.
16) The frame cannot be cut for a mortised electric strike - what rim device strike mounts on the surface?
The HES 9800 sets on the face of the frame and aligns to the starwheel or interlock latching mechanism, with 1/16 inch and 1/8 inch spacer plates included to take up varying door gaps and no faceplate required. The Von Duprin 6300 is also a surface mounted strike for rim exit devices, heavy duty Grade 1 and fire rated. Both avoid cutting the frame; choose between them on latch type and whether the opening is labeled.
17) Can the HES 9800 be used on a door where the strike sees latch preload?
No. The HES 9800 is not preload capable, so an opening where a closer, wind pressure, or a stack effect pushes the latch against the keeper needs a different strike. The Von Duprin 6111 and 6300 are heavy duty Grade 1 rim strikes, with the 6300 tested to 2,000,000 cycles. On any door showing preload, verify the strike selection with the exit device manufacturer before ordering.
18) Do the Von Duprin 6111 and the HES 9800 run on the same power supply?
Both are 12/24 VDC. The HES 9800 draws 450 mA at 12 VDC and 250 mA at 24 VDC and is field selectable between fail secure and fail safe; the Von Duprin 6111 is likewise 12/24 VDC with fail-safe or fail-secure operation. An integrator replacing one with the other on an existing head-end should still confirm the current draw against the supply's available amperage before swapping.
19) Is the HES 9800 secure enough for an exterior entrance that gets tampered with?
Tamper resistance is part of the design: the solenoid is mounted internally and the stainless cover conceals the mounting screws, so there's nothing exposed to attack from outside. It's UL 1034 burglary resistant listed and holds 1,500 lbs static, 70 ft-lbs dynamic. For a property manager standardizing on a high-abuse entrance, that's a Grade 1 strike that doesn't leave fasteners on the outside of the frame.
