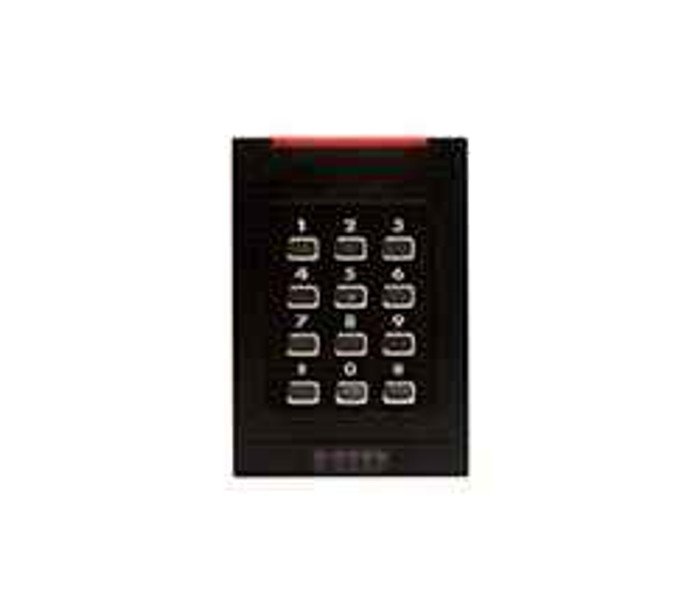

HID 921NTNNEK0002K Model RK40 Reader, Supports Keypad input, No 125 KHz support, Black, Wiegand Controller Communication

No. The RK40 in the 921NTNNEK0002K configuration is built without 125 kHz support, so legacy HID Prox credentials will not read on it. If your site is still running 125 kHz Prox badges, this is the wrong part number for you. A Wiegand prox reader that does handle 125 kHz HID credentials, like the SDC IPRW Series, is the direction to look instead.

Yes, the RK40 921NTNNEK0002K supports keypad input, so it handles card-plus-PIN or PIN-only openings where your access control software allows it. That is the practical difference between it and a card-only reader of the same family: you get a second factor at the door without adding a separate keypad.

Wiegand. The 921NTNNEK0002K communicates to the controller over Wiegand, which is the common multi-conductor reader interface most panels accept on their reader ports. If your panel is set up for OSDP only, confirm it also has Wiegand reader inputs before you specify this one.

If the reader you are replacing is already wired Wiegand back to the panel, the RK40 921NTNNEK0002K uses the same controller interface, so the head-end side of the job is a like-for-like change. What does not carry over is the credential technology: this unit has no 125 kHz support, so existing Prox badges will stop working and cards have to be reissued. Mounting hole pattern and gang box fit should be checked against what is on the wall.

The RK40 921NTNNEK0002K does not support 125 kHz credentials, so an existing 125 kHz card population will not read on it. For that case the SDC IPRW Series is a Wiegand proximity reader with 125 KHz HID compatibility, so it reads the legacy cards while still presenting Wiegand output to the controller. Choose the RK40 when you are moving off 125 kHz and want keypad entry at the door instead.

They are not equivalent at the door. Both talk to the panel over Wiegand, so the controller side and wiring scheme are the same family, but the RK40 921NTNNEK0002K supports keypad input for PIN or card-plus-PIN entry, while the SDC IPRW Series is a proximity reader with 125 KHz HID compatibility and no keypad. Swapping the IPRW in where a PIN is required would drop that credential mode, and swapping the RK40 in for an IPRW would drop 125 kHz card reading.

Yes. The RK40 921NTNNEK0002K is a credential reader, not a lock and not a controller. It reads the badge or PIN and passes the data over Wiegand to an access control panel, which is what actually makes the unlock decision and drives the electric strike, mag lock, or electrified trim. Budget for the panel, the locking device, power supply, and the credentials as separate line items.

Pick by what the opening needs to prove. A card-only Wiegand prox reader, such as the SDC IPRW Series, is enough for general perimeter and tenant doors where a badge alone is acceptable. The RK40 921NTNNEK0002K adds keypad input, which is what you want on server rooms, cash offices, pharmacy or records rooms, and anywhere policy calls for two factors or a PIN when a badge is not carried. Note the RK40 in this configuration has no 125 kHz support, so it is a choice for sites on newer credential technology, not legacy Prox.

No. The RK40 921NTNNEK0002K is specified with keypad input, which is what you pay for when an opening requires PIN or dual-credential entry. For a card-only opening on the same Wiegand panel, the SDC IPRW Series is a proximity reader without a keypad, so it covers read-only doors on the same controller. A common approach is keypad readers on sensitive openings and read-only units elsewhere.

Both report to the controller over Wiegand, so a panel with Wiegand reader inputs can accept either. The practical limit is the credential, not the panel: the IPRW Series reads 125 kHz HID-compatible proximity cards, while the RK40 921NTNNEK0002K has no 125 kHz support, so a badge that works at one will not necessarily work at the other. Plan the credential technology facility-wide before mixing them.

It is a commercial access control reader, catalogued for commercial use rather than residential. That is the tier property managers, integrators, and facility MRO buyers standardize on across multi-door sites, and it is intended to run on a panel-based access system rather than as a standalone lock.

Black. If you are matching readers across a lobby or a run of openings where the existing units are black, this keeps the appearance consistent; there is no other color on this particular part number.
