Hoffman A36R3612NK NEMA 3R Screw Cover Enclosure, Galvanized Steel

Hoffman A36R3612NK NEMA 3R Screw Cover Enclosure, Galvanized Steel

(No reviews yet) Write a Review

Model: A36R3612NK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$552.87
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hoffman A36R3612NK NEMA 3R Screw Cover Enclosure, Galvanized Steel

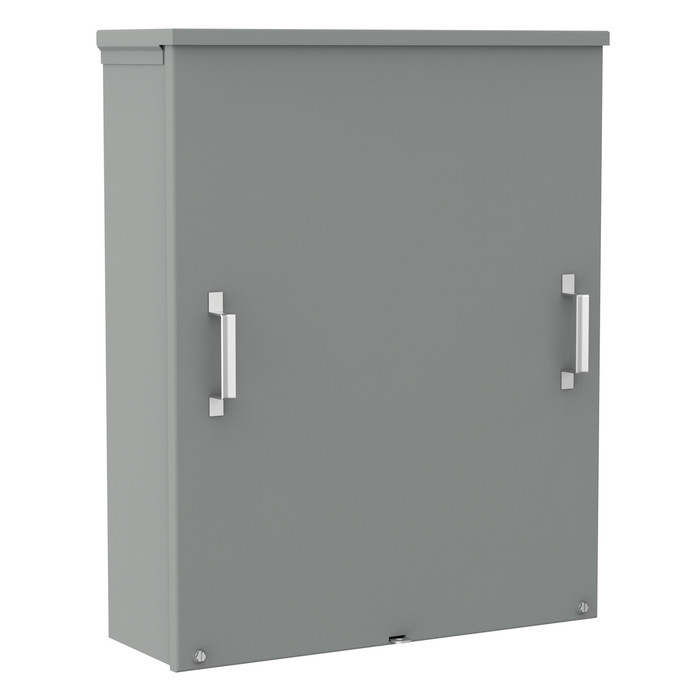

The Hoffman A36R3612NK is a NEMA 3R rated screw cover enclosure built from galvanized steel and finished in ANSI 61 gray polyester powder coat for long-term corrosion resistance and a durable, professional appearance. Measuring 36-Inch x 36-Inch x 12-Inch, this enclosure is designed to house electrical components, terminations, and control devices in outdoor and industrial environments where protection against rain, sleet, and external ice formation is required. Manufactured under the nVent Hoffman brand, this screw-cover style enclosure delivers a reliable, code-compliant housing solution for demanding electrical applications.

Key Features

  • Size: 36-Inch x 36-Inch x 12-Inch enclosure body provides ample interior space for mounting panels, terminal blocks, and control equipment.
  • Durable Construction: Fabricated from galvanized steel for added corrosion resistance and structural strength in demanding installation environments.
  • Screw Cover Design: Screw-secured cover style offers a straightforward, cost-effective closure method suitable for enclosures that do not require frequent access.
  • NEMA 3R Rating: Rated NEMA 3R for outdoor use, providing a degree of protection against rain, sleet, and external ice formation.
  • Finish: ANSI 61 gray polyester powder coat finish resists chipping, scratching, and fading while providing a clean, industry-standard appearance.
  • Brand Assurance: Manufactured under the nVent Hoffman brand, known for enclosure products used across commercial and industrial electrical systems.

Certifications & Compliance

  • NEMA 3R Rated for Outdoor Use

Technical Specifications

  • Product Type: Screw Cover Enclosure
  • Material: Galvanized Steel
  • Finish: ANSI 61 Gray Polyester Powder Coat
  • Enclosure Rating: NEMA 3R
  • Dimensions: 36-Inch x 36-Inch x 12-Inch

Typical Applications

  • Outdoor Electrical Equipment Housing
  • Industrial Control Panel Enclosures
  • Commercial Electrical Distribution Systems
  • Utility and Infrastructure Equipment Protection
  • Wet and Outdoor-Location Installations

Why Hoffman?

Hoffman, part of nVent, builds enclosures using galvanized steel construction and durable powder coat finishes designed to withstand demanding outdoor and industrial environments. The NEMA 3R rating and ANSI 61 gray finish on the A36R3612NK reflect the industry-standard build quality electrical professionals rely on for code-compliant, long-lasting equipment protection.

Manufacturer Resources

Product Specs

list_batch:
HOF-20260924
Product Type:
Screw Cover Enclosure
Product Finish:
ANSI 61 Gray Polyester Powder Coat
Configuration:
NEMA 3R Enclosure
Department:
Electrical
Product Subgroup:
Weatherproof Enclosures
Product Material:
Galvanized Steel
Product Color:
Gray
Product Group:
Boxes & Enclosures

Hoffman A36R3612NK – Frequently Asked Questions

1) Is the Hoffman A36R3612NK enclosure rated for outdoor use?
Yes, the A36R3612NK carries a NEMA 3R rating, which covers outdoor installations where the box has to shed rain, sleet and external ice formation. That is a weather-shedding rating, not a washdown or dust-tight one, so if the location sees hose-down cleaning, windblown dust, or standing water, step up to a NEMA 4 or 4X enclosure instead.
2) Does a screw cover enclosure work if electricians need to get into the box regularly?
Not well. The A36R3612NK uses a screw-secured cover, which means removing and reinstalling fasteners every time the box is opened. It is a cost-effective closure for terminations, splices, and equipment you rarely touch. For panels needing daily or frequent access, specify a hinged-cover or latching continuous-hinge enclosure in the same NEMA rating.
3) Will a galvanized steel NEMA 3R enclosure hold up outdoors in a coastal or chemical environment?
The A36R3612NK is galvanized steel with an ANSI 61 gray polyester powder coat, a combination that handles general outdoor and industrial exposure and resists chipping, scratching, and fading. In salt-spray coastal air or around corrosive chemicals, galvanized steel is not the right call. Specify a 304 or 316 stainless or a fiberglass enclosure for those locations.
4) Does the A36R3612NK come with knockouts or a mounting panel?
It is a blank screw cover enclosure body and cover. Conduit entries are field-drilled or punched where you need them, and an interior mounting panel is a separate item ordered to the 36 x 36 body size. Plan hub or fitting selection to preserve the NEMA 3R rating, raintight fittings at the top and sides.
5) What is the exact Hoffman part number for the 36x36x12 NEMA 3R screw cover enclosure?
Hoffman A36R3612NK. The number reads out as the size and style: 36 x 36 body, 12 inch depth, R for the 3R rain-tight screw cover family. Use that full designation when ordering so you do not end up with the 4 or 4X version of the same footprint.
6) Will the Hoffman A36R3612NK match the gray enclosures already on my site?
Most likely, yes. The finish is ANSI 61 gray, the standard light gray used across industrial control and enclosure products, so it reads the same as other ANSI 61 boxes on a wall or skid. Hoffman also uses the same ANSI 61 gray across its steel enclosure lines.
