Klein Tools CL445 HVAC Clamp Meter

Klein Tools CL445 HVAC Clamp Meter

(No reviews yet) Write a Review

Model: KLN-CL445
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$200.00
$150.00
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

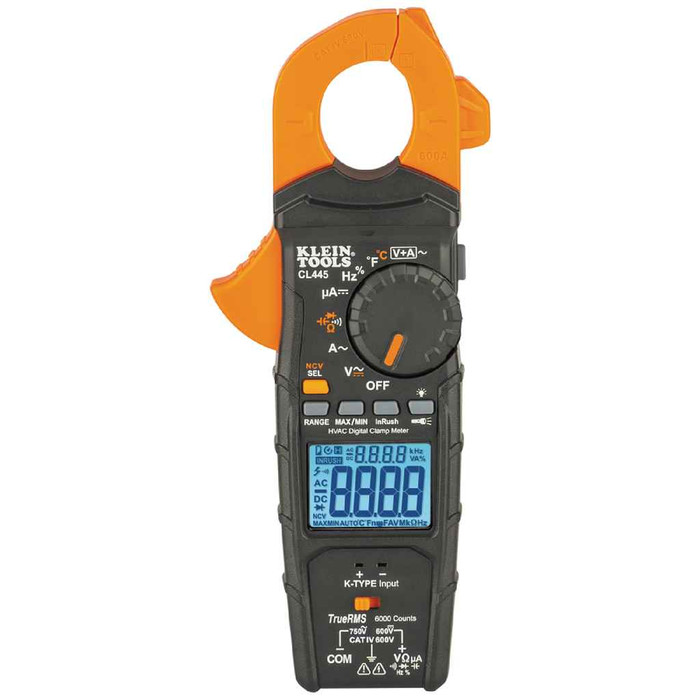

HVAC Clamp Meter

  • Features

    • Meter has a built-in worklight to illuminate in low light areas
    • CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
    • CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating
    • Digital clamp measures 600 A AC current and inrush current
    • Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; V + A Simultaneously Displayed; Built-in Worklight
    • Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests
    • Detect AC current with non-contact voltage tester integrated into the clamp jaw
    • Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
    • Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
    • Can be used with Magnetic Hanger (Cat. No. 69417, sold separately) for hands free operation
    • Dedicated mode for capturing DC micro amp and inrush current
    • K-Type thermocouple port for measuring temperature from -148 to 1832-Degree Fahrenheit (-100 to 1000-Degree Celsius)

  • Warnings

    • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
    • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
    • Before each use verify meter operation by measuring a known voltage or current.
    • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
    • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.


CL445 - spec sheet

Manufacturer Resources

Product Specs

Ac Voltage:
750V
Accuracy:
See Instructions
Auto Power Off:
Yes
Batteries:
3 x AAA
Capacitance:
6.000mF
Current:
600A
Dc Micro Amp:
600µA
Dc Polarity Indicator:
Yes
Dc Voltage:
600V
Depth:
9.2400 in
Display:
6000 Count LCD
Drop Protection:
6.6' (2 m)
Frequency:
60 kHz
Functions:
TRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, AC Voltage + AC Amperage, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability
Height:
1.5900 in
Jaw Size:
1.25" (3.2 cm)
Material:
ABS/Electronics
Ohms Resistance :
60MΩ
Overall Height:
1.59" (4 cm)
Overall Length:
9.24" (23.5 cm)
Overall Width:
3.77" (9.6 cm)
Standard:
CAT IV 600V, CAT III 750V, Class 2, Double Insulation Safety Rating
Temperature Range:
-148° to 1832°F (-100° to 1000°C)
Type:
HVAC TRMS Clamp Meter
Voltage:
750V AC; 600V DC
Weight:
0.7880 lbs
Width:
3.7600 in
!
