Klein Tools CL320KIT HVAC Elec...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$241.94
$191.94

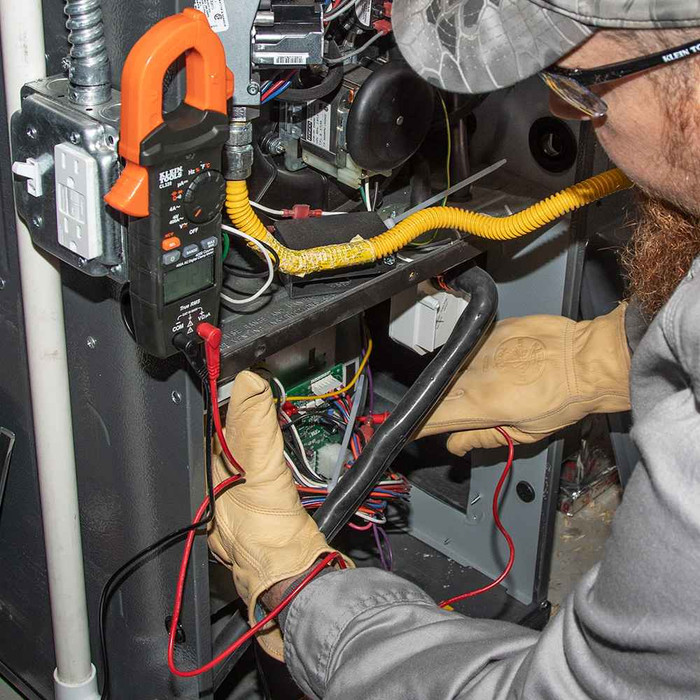

Klein Tools CL320KIT HVAC Electrical Test Kit

Klein Tools CL320KIT HVAC Electrical Test Kit

(No reviews yet) Write a Review

Model: CL320KIT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$241.94
$191.94
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
HVAC Electrical Test Kit

  • Warnings

    • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
    • Do not attempt to measure resistance or continuity on live circuits.
    • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
    • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
    • Before each use verify meter operation by measuring a known voltage or current.

  • Features

    • IR07 Thermometer is not a medical device and is NOT intended for use on people or animals
    • Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature
    • Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
    • Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
    • Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8 -1)
    • Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
    • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures
    • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
    • HVAC Kit with testers for the HVAC Professional - HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight


CL320KIT - spec sheet

Manufacturer Resources

Product Specs

Ac Voltage:
600V
Auto Power Off:
Yes
Auto Ranging:
Yes
Batteries:
7 x AAA
Capacitance:
4000 µF
Current:
400 A AC
Dc Micro Amp:
200 μA
Dc Polarity Indicator:
Yes
Dc Voltage:
600V
Depth:
11.0000 in
Display:
4000 Count Backlit LCD
Display Size:
1.57" x 0.87" (4 x 2.2 cm)
Drop Protection:
6.6' (2 m)
Frequency:
10 Hz to1 MHz
Functions:
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
Height:
3.2500 in
Jaw Size:
1.6" (4.1 cm)
Material:
ABS/Electronics
Ohms Resistance :
40MO
Overall Height:
1.5" (3.8 cm)
Overall Length:
8.45" (21.5 cm)
Overall Width:
3.5" (8.9 cm)
Standard:
Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Trms:
Yes
Type:
HVAC Testers
Voltage:
Cat. No. CL320 - 600V AC/DC; Cat. No. NCVT3P - 1000V AC
Weight:
1.6500 lbs
Width:
4.5000 in
Department:
Electrical
Product Group:
Test & Measurement
Product Subgroup:
Electrical Testers
Product Type:
HVAC Testers
!
