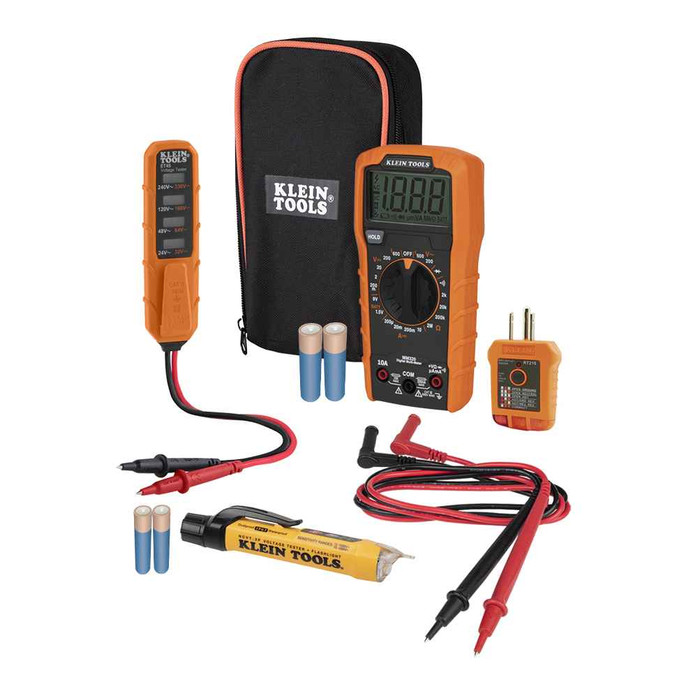

Digital Multimeter Electrical Test Kit
MM320KIT - spec sheet
Features
- RT210 detects the most common wiring problems in standard and GFCI receptacles including open ground, reverse polarity, open hot, open neutral and hot/ground reversed
- Receptacle tester works on GFCI outlets and confirms operation of the ground fault protective device
- Meter also test batteries, diodes, and continuity
- MM320: Auto Power-Off
- ET45 tests AC voltages from 28V to 240V AC at four useful levels aligned with commonly used residential voltages, and DC voltages from 32V to 330V at four common levels
- Voltage Tester NCVT-3P has dual-range capabilities to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Built-in test lead holder on back of ET45 holds the leads in one of two positions - one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
- Digital Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2 ohm resistance
- Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not attempt to measure resistance or continuity on live circuits.
MM320KIT - spec sheet
Manufacturer Resources
Product Specs
- Batteries:
- 2 x AAA
- Current:
- 10A
- Depth:
- 12.4000 in
- Display:
- MM320 - 2000 Count LCD
- Drop Protection:
- 3.3' (1 m)
- Functions:
- Hold
- Height:
- 2.2400 in
- Material:
- ABS/Electronics
- Ohms Resistance :
- 2MΩ
- Overall Height:
- 1.80" (45.7 cm)
- Overall Length:
- 6.39" (162.4 cm)
- Overall Width:
- 3.12" (79.4 cm)
- Standard:
- CAT III 600V; CE
- Type:
- Digital Multimeter Electrical Kit
- Voltage:
- 600V AC/DC
- Weight:
- 1.5600 lbs
- Width:
- 7.9100 in
- Department:
- Electrical
- Product Group:
- Test & Measurement
- Product Subgroup:
- Electrical Testers
- Product Type:
- Digital Multimeter Electrical Kit
