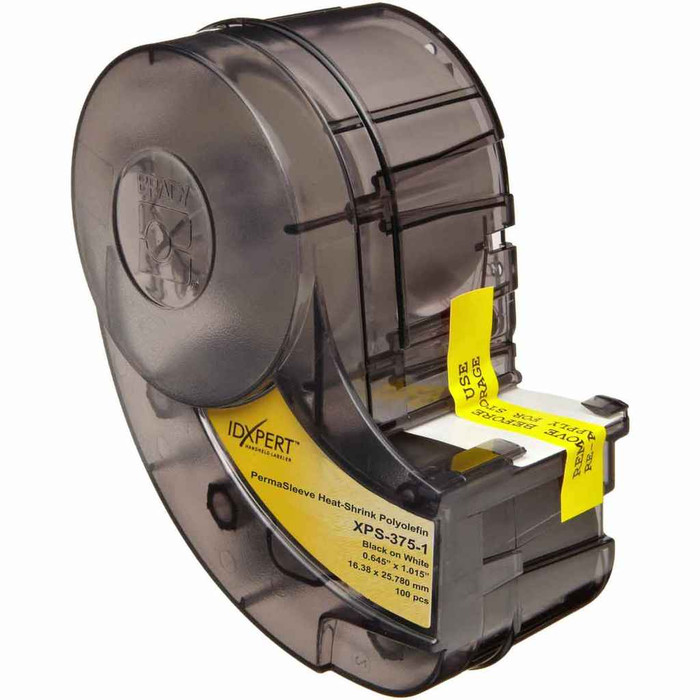

Brady XPS-375-1 IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each

Brady XPS-375-1 IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each

(No reviews yet) Write a Review

Model: XPS-375-1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$324.99
$274.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each

  • Features

    • Fade-resistant and smudge-proof for superior aesthetic appearance
    • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
    • All-in-one cartridge includes ribbon and label supply
    • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification


XPS-375-1 - spec sheet

Manufacturer Resources

Product Specs

Application:
Wire and Cable Labeling
Brady Material Number:
B-342
Ca Prop 65 Label Warning:
WARNING: Cancer - www.P65warnings.ca.gov
Ca Prop 65 Labeled:
Yes
Contains Ca Prop 65 Cancer Causing Chemical:
Antimony Trioxide
Contains Ca Prop 65 Substance:
Yes Contains-Label required
Contains Ca Prop 65 Warning Type:
Cancer
Contains Heavy Metal S :
No - Does not contain
Diameter As Supplied In Ft Yd :
0.375 in
Diameter As Supplied Mm Cm M :
9.5 mm
Dimensions 2:
0.645 in H
Dimensions Metric :
16.4 mm H
Dot Regulated Product:
No = not regulated by DOT
Enables Industry Compliance:
ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL R
Eu Rohs Compliance:
Pass 2011/65/EU(Pass 2015/863)
Eu Rohs Compliant:
Yes
For Use With Printer:
IDXPERT™ Handheld Label Maker
Height In Ft Yd :
0.645 in
Height Mm Cm M :
16.4 mm
Label Media Format:
Label/Media in Cartridge with Ribbon
Label Properties:
Heat Shrink Sleeves
Material Properties:
Flame-retardant; Heat-shrinkable
Maximum Service Temperature C:
135 °C
Maximum Service Temperature F:
275 °F
Maximum Wire Diameter In Ft Yd :
0.32 in
Maximum Wire Diameter Mm Cm M :
8.13 mm
Maximum Wire Gauge:
6 AWG
Minimum Service Temperature C:
-55 °C
Minimum Service Temperature F:
-67 °F
Minimum Wire Diameter In Ft Yd :
0.125 in
Minimum Wire Diameter Mm Cm M :
3.2 mm
Minimum Wire Gauge:
12 AWG
National Stock Number Nsn :
5.97502E+12
Primary Noun Basic Function:
Sleeve
Print Technology:
Thermal Transfer
Printer And Label Applications:
Wire & Cable
Product Dimensions:
0.645 in H
Product Finish:
Matte
Product Material:
Heat-shrink Polyolefin
Quantity Per Roll:
100
Quantity Per Row:
1
Resistance Properties:
Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather
Ribbon Color:
Black
Roll Width In Ft Yd :
1 in
Roll Width Mm Cm M :
25.4 mm
Sap B Number:
B-342
Sds Safety Data Sheet Required:
No = MSDS/SDS is not required
Shrink Ratio:
3:01
Sleeve Size In Ft Yd :
0.375 in Dia x 1 in W
Sleeve Size Mm Cm M :
9.5 mm Dia x 25.4 mm W
Sleeve Width In Ft Yd :
1 in
Sleeve Width Mm Cm M :
25.4 mm
Tape Color:
White
Total Quantity:
100
Trade Name:
PermaSleeve®
Wire Diameter Range:
0.125 in to 0.32 in
Wire Gauge Range:
12 AWG to 6 AWG
Department:
Electrical

Brady XPS-375-1 – Frequently Asked Questions

1) What wire sizes do Brady XPS-375-1 PermaSleeve sleeves fit?
The XPS-375-1 sleeves cover 12 AWG through 6 AWG conductors, which works out to a wire diameter range of 0.125 in to 0.32 in (3.2 mm to 8.13 mm). Supplied at 0.375 in (9.5 mm) diameter, they shrink 3:1 to grip the conductor. If your conductor is smaller than 12 AWG or larger than 6 AWG, you need a different sleeve diameter.
2) Which Brady printer takes the XPS-375-1 cartridge?
It is made for the IDXPERT handheld label maker. The cartridge is an all-in-one that carries both the sleeve supply and the ribbon, so there is no separate ribbon to buy, and it prints by thermal transfer in black on white sleeve.
3) Will these heat shrink wire markers hold up in an unconditioned mechanical room or outdoors?
Service range on the B-342 PermaSleeve material is -67F to 275F (-55C to 135C), and the material is listed as chemical, corrosion, humidity, smear, and UV resistant. That covers rooftop, exterior, and unheated plant environments as well as hot equipment enclosures.
4) Are these sleeves flame retardant for panel and control wiring?
Yes. The polyolefin heat-shrink material is flame-retardant, and Brady lists the material as enabling compliance with ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053 and SAE-AS-81531.
5) Do heat shrink sleeves make sense instead of self-laminating wrap labels?
Slide-on shrink sleeves like PermaSleeve are the choice when the marker has to be permanent and survive abrasion, solvents, and weather, since it shrinks 3:1 onto the conductor and cannot peel. The tradeoff is that the sleeve has to go on before the conductor is terminated. If the wire is already landed on both ends, a wrap-around or flag label is the practical option.
6) Is there a California Prop 65 warning on Brady PermaSleeve XPS-375-1?
Yes, it ships with a Prop 65 cancer warning for antimony trioxide: WARNING: Cancer - www.P65warnings.ca.gov. It contains no heavy metals and passes EU RoHS 2011/65/EU including 2015/863.
7) Do I need to order a ribbon or SDS separately for this Brady cartridge?
No separate ribbon is needed, the XPS-375-1 cartridge carries both the sleeve stock and the black ribbon in one unit. Brady also lists no SDS requirement for this material, and it is not a DOT regulated product for shipping.
