Brady XPS-125-1 IDXPERT Series...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$196.13
$146.13

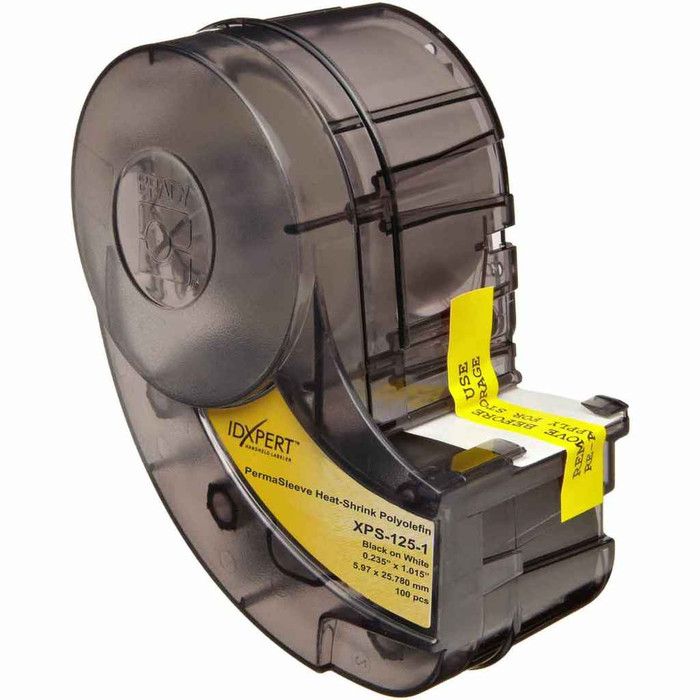

Brady XPS-125-1 IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each, Maximum Wire Gauge 16

Brady XPS-125-1 IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each, Maximum Wire Gauge 16

(No reviews yet) Write a Review

Model: XPS-125-1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$196.13
$146.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each, Maximum Wire Gauge 16

  • Features

    • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
    • Fade-resistant and smudge-proof for superior aesthetic appearance
    • All-in-one cartridge includes ribbon and label supply
    • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification


XPS-125-1 - spec sheet

Manufacturer Resources

Product Specs

Application:
Wire and Cable Labeling
Brady Material Number:
B-342
Ca Prop 65 Label Warning:
WARNING: Cancer - www.P65warnings.ca.gov
Ca Prop 65 Labeled:
Yes
Contains Ca Prop 65 Cancer Causing Chemical:
Antimony Trioxide
Contains Ca Prop 65 Substance:
Yes Contains-Label required
Contains Ca Prop 65 Warning Type:
Cancer
Contains Heavy Metal S :
No - Does not contain
Diameter As Supplied In Ft Yd :
0.125 in
Diameter As Supplied Mm Cm M :
3.2 mm
Dimensions 2:
0.235 in H
Dimensions Metric :
6 mm H
Dot Regulated Product:
No = not regulated by DOT
Enables Industry Compliance:
ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL R
Eu Rohs Compliance:
Pass 2011/65/EU(Pass 2015/863)
Eu Rohs Compliant:
Yes
For Use With Printer:
IDXPERT™ Handheld Label Maker
Height In Ft Yd :
0.235 in
Height Mm Cm M :
6 mm
Label Media Format:
Label/Media in Cartridge with Ribbon
Label Properties:
Heat Shrink Sleeves
Material Properties:
Flame-retardant; Heat-shrinkable
Maximum Service Temperature C:
135 °C
Maximum Service Temperature F:
275 °F
Maximum Wire Diameter In Ft Yd :
0.11 in
Maximum Wire Diameter Mm Cm M :
2.8 mm
Maximum Wire Gauge:
16 AWG
Minimum Service Temperature C:
-55 °C
Minimum Service Temperature F:
-67 °F
Minimum Wire Diameter In Ft Yd :
0.046 in
Minimum Wire Diameter Mm Cm M :
1.2 mm
Minimum Wire Gauge:
22 AWG
Primary Noun Basic Function:
Sleeve
Print Technology:
Thermal Transfer
Printer And Label Applications:
Wire & Cable
Product Dimensions:
0.235 in H
Product Finish:
Matte
Product Material:
Heat-shrink Polyolefin
Quantity Per Roll:
100
Quantity Per Row:
1
Resistance Properties:
Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather
Ribbon Color:
Black
Roll Width In Ft Yd :
1 in
Roll Width Mm Cm M :
25.4 mm
Sap B Number:
B-342
Sds Safety Data Sheet Required:
No = MSDS/SDS is not required
Shrink Ratio:
3:01
Sleeve Size In Ft Yd :
0.125 in Dia x 1 in W
Sleeve Size Mm Cm M :
3.2 mm Dia x 25.4 mm W
Sleeve Width In Ft Yd :
1 in
Sleeve Width Mm Cm M :
25.4 mm
Tape Color:
White
Total Quantity:
100
Trade Name:
IDXpert™ PermaSleeve®
Wire Diameter Range:
0.046 in to 0.11 in
Wire Gauge Range:
22 AWG to 16 AWG
Department:
Electrical

Brady XPS-125-1 – Frequently Asked Questions

1) Which Brady printer do these XPS-125-1 sleeves run in?
They are made for the IDXPERT handheld label maker. The cartridge is an all-in-one that carries both the sleeve supply and the ribbon, so you don't buy ribbon separately. Printing is thermal transfer, black on white sleeve.
2) Will these wire sleeves hold up in a rooftop unit or an unheated mechanical room?
Service range runs -67 F to 275 F (-55 C to 135 C), so outdoor rooftop and unconditioned spaces are within range. The polyolefin is UV, humidity, weather, chemical and corrosion resistant, and the printing is smear resistant, which is why the legend survives where a wrap-around adhesive label would lift or fade.
3) Should I use heat shrink sleeves or self-laminating wrap labels for panel wire marking?
Heat shrink sleeves like the XPS-125-1 have to be slid on before the conductor is terminated, so they suit new panel builds, harnesses and anywhere the marker must be permanent and tamper proof. Once shrunk 3:1 they won't unwrap, slide or peel. If the wire is already landed on both ends, you can't use a sleeve at all, that job calls for a wrap-around or self-laminating label instead.
4) Are Brady XPS-125-1 PermaSleeve markers flame retardant for use in a control panel?
Yes, the polyolefin is flame retardant as well as heat shrinkable. Brady lists the material (B-342) against ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053 and SAE-AS-81531 for industry compliance.
